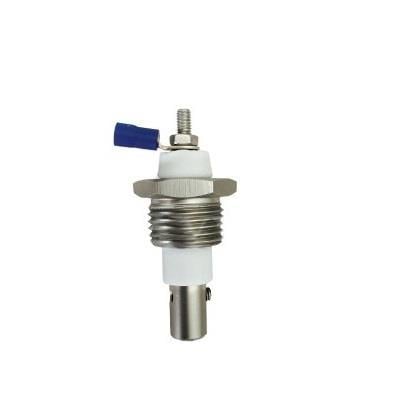

Ayvaz AELC09F Paslanmaz Seviye Elektrodu 3/8''
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
Ayvaz AELC09F Stainless Steel Conductivity Type Level Electrode 3/8'': Precise Water Level Control in Boilers
The Ayvaz AELC09F Stainless Steel Conductivity Level Electrode is a precision sensor designed for electronic liquid level control in industrial processes such as steam boilers, pressurized water tanks, and condensate tanks. This level electrode uses the electrical conductivity of the fluid to detect the liquid level, thereby triggering pump control, alarms, or safety systems.
What is a Conductivity Type Level Electrode and How Does It Work?
Conductivity-type level electrodes operate on the principle of liquid conductivity. Electric current flows through the conductive liquid between the tank body (soil) and the electrode tip. When the liquid level drops, the electrode tip separates, breaking the circuit. When the liquid level rises, the circuit is completed. This on-off signal is transmitted to a control unit, providing automatic level management.
Key Features and Advantages of Ayvaz AELC09F Level Electrode:
Material Quality: Level Electrode is made of Stainless Steel (AISI 304) with high corrosion resistance. The connecting piece is also made of stainless steel.
High Strength: Resistant to a maximum operating temperature of 210 ºC and a maximum operating pressure of 13 bar . This makes the product suitable for medium-pressure steam boilers.
Insulation Material: The body of the electrode is insulated using PTFE (Teflon) insulating material, which offers superior dielectric and heat resistance.
Compact Connection: Can be easily installed in small diameter process lines or boiler level indicator columns with 3/8'' threaded connection.
Precise Control: It keeps the boiler water level stable by precisely managing the Start/Stop commands of the boiler feed water pumps.
Long-Lasting: Resistant to corrosion and scaling thanks to the combination of stainless steel and PTFE.
Level Electrode Usage Areas:
Steam Boilers: Feed water level control and safety locking.
Hot Water Boilers: Monitoring the water level.
Condensate Tanks: Control of return water level.
Other Conductive Liquid Tanks: Industrial processes where automatic level control is required.
