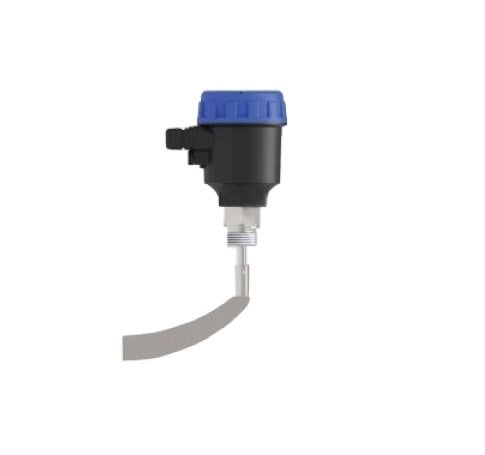

Ayvaz AELF-11 Motorized Level Switch
ORFA Industrial Products Industry and Trade Inc. continues to provide reliable and high-quality solutions in the industrial sector by offering a wide range of industrial products. The Motorized Level Switch we sell is specifically designed to precisely measure the level of solid materials. This Motorized Level Switch ensures safe and efficient operations in industrial applications.
A Motorized Level Switch is a device used to continuously monitor and control the level of solid materials in storage tanks, silos, and hoppers. At the tip of the probe is a pallet selected according to the material. The probe rotates continuously with the motor's speed, and when the material to be detected reaches and surrounds the pallet, it creates a counter-force against the rotating pallet. This force activates the level alarm contact, stopping the motor. When the material level drops, the motor restarts rotation and the alarm setting changes.
Motorized Level Switch Features
Connection: 1'' Threaded (Optional 1 1/4" - 1 1/2")
Supply: 24 V DC (Optional 24/110/220 V AC)
Immersion Length (L): 150 mm
Working Pressure: -0.6 / +0.6 bar
Protection Class: IP65
Operating Temperature: -25 / +100 ºC (Optional 600 ºC)
Number of Revolutions: 5 rpm
Optional: Mini fin, spring foldable fin, cross fin, single fin fin
Technical Information
The Motorized Level Switch is designed to adapt to a variety of operating environments and applications. The device is under warranty in accordance with local laws and should only be repaired by authorized service centers. Devices without product labels and serial numbers will be considered void from warranty coverage.
Areas of Use
Motorized Level Switches can be used in a wide range of applications across different industries:
Plastic Industry: PVC, PVDF, PP granules etc.
Food Industry: Grain, flour, salt, granulated sugar, coffee, barley, sunflower, corn, peanut, powder, wheat, dried pepper, kaolin, cereal, milk powder, cocoa, etc.
Construction Industry: Lime, sand, calcite, ore, cement, coal, gypsum, silica sand, calcium powder, limestone powder, crushed limestone, iron chips, silica sand, styrofoam foam, molding sand, etc.
Wood Industry: Sawdust dust filter, wood fibers, etc.
Chemical Industry: Pharmaceutical raw materials etc.
Mining Industry: Coal lump, ash coal, etc.
Installation and Usage Warnings
Important points to consider during installation and use of the Motorized Level Switch are as follows:
Pre-Installation Inspection: Upon receipt of the product, inspect the packaging for damage. If damage is detected, notify the shipping company and our company.
Installation: Install the device according to the installation diagram provided in the product manual. There are no fuses or circuit breakers on the device; these components must be added to the system by the user.
Safety: The level switch should not be used alone at control points that could endanger human life. The manufacturer is not responsible for accidents that may occur as a result of incorrect detection.
Maintenance and Repair: Do not modify or attempt to repair the device. Repairs must be performed by authorized service personnel.
Motorized Level Switches optimize your industrial processes by providing reliable and precise level measurements. ORFA Industrial Products Industry and Trade Inc. is always at your side with its high-quality products.
