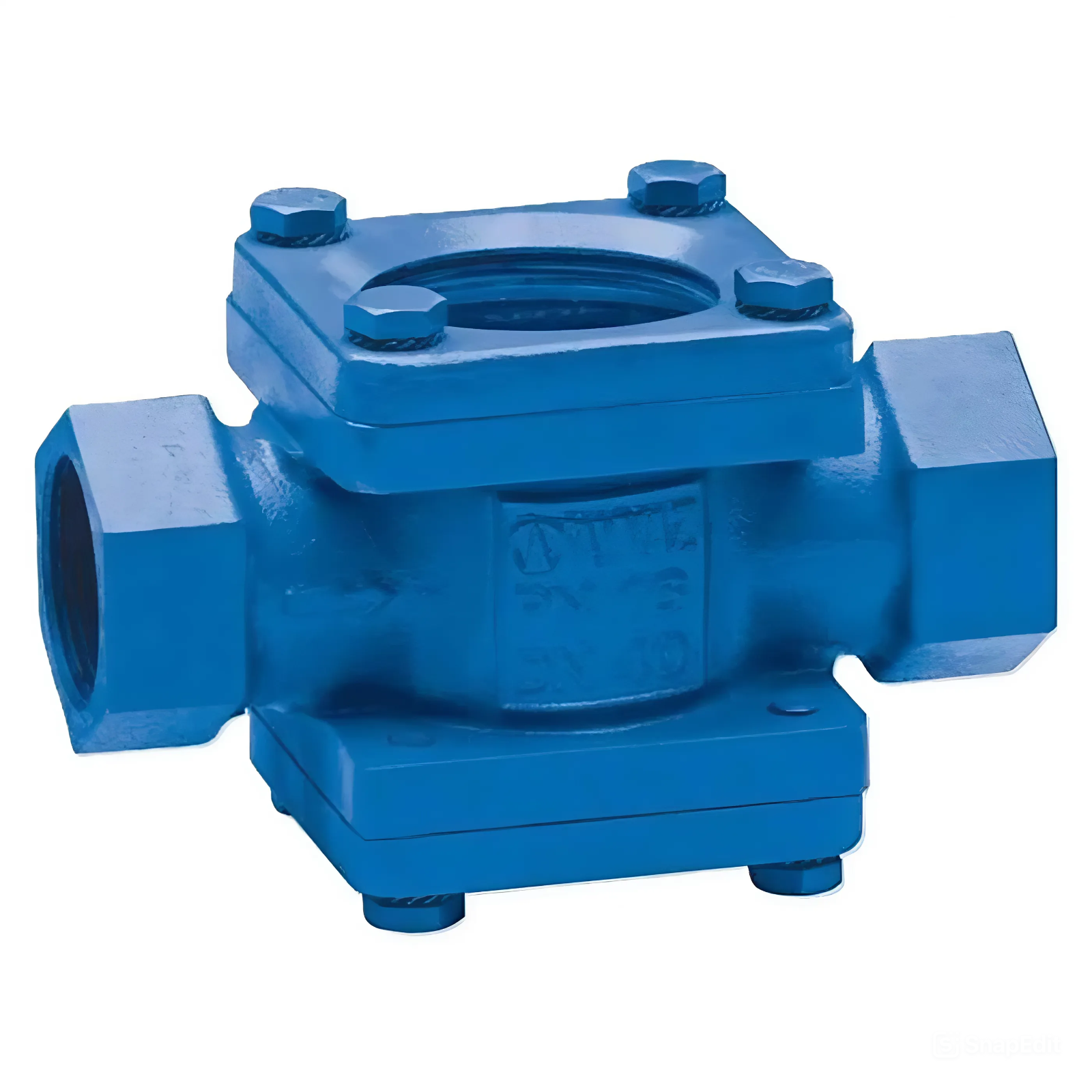

AYVAZ AG-10 Flow Indicator Valve 3/4'' PN16

AYVAZ AG-10 Flow Indicator Valve 3/4'' PN16

Reliable Visual Flow Control in Pipelines with ORFA Industrial Assurance

Designed for observing liquid and steam flow in industrial piping systems, the flow indicator valve provides safe and clear visual control in closed-loop systems. Offered with the quality of the AYVAZ AG-10 brand, this 3/4'' PN16 flow indicator valve is designed for monitoring steam trap operation and detecting potential leaks in steam, water, and compressed air applications. With its tempered soda-lime glass body, the professional flow indicator valve ensures safe operation up to 150°C, and the PTFE gasket provides complete sealing. Made of GG-25 cast iron, this flow indicator valve has high mechanical strength and long service life even with heavy fluids such as asphalt. Available from ORFA Industrial, this flow indicator valve is manufactured with a maximum pressure rating of 16 bar and full safety certification. In critical industries such as food, pharmaceutical, chemical, and petrochemical, this flow indicator valve plays a key role in directly controlling the healthy flow of process fluids. With a threaded connection, this flow indicator valve is compatible with standard piping and can be installed at control points before and after steam traps. With optional borosilicate glass, this flow indicator valve can operate up to 300°C, making it a safe choice for high-temperature applications. Using a flow indicator valve in your installation allows you to monitor system performance and detect faults early, significantly reducing maintenance costs. This flow indicator valve also works successfully with special fluids such as ceramic slurry and LPG/LNG, making it a reliable component for projects. Each flow indicator valve unit is manufactured and tested in accordance with EN and DIN standards. From hot and cold water systems to compressed air lines, choose the AYVAZ flow indicator valve to keep flow management fully under control.

Continuously monitor flow in your installation with AYVAZ AG-10 flow indicator valve solutions and maintain system health at maximum level.
