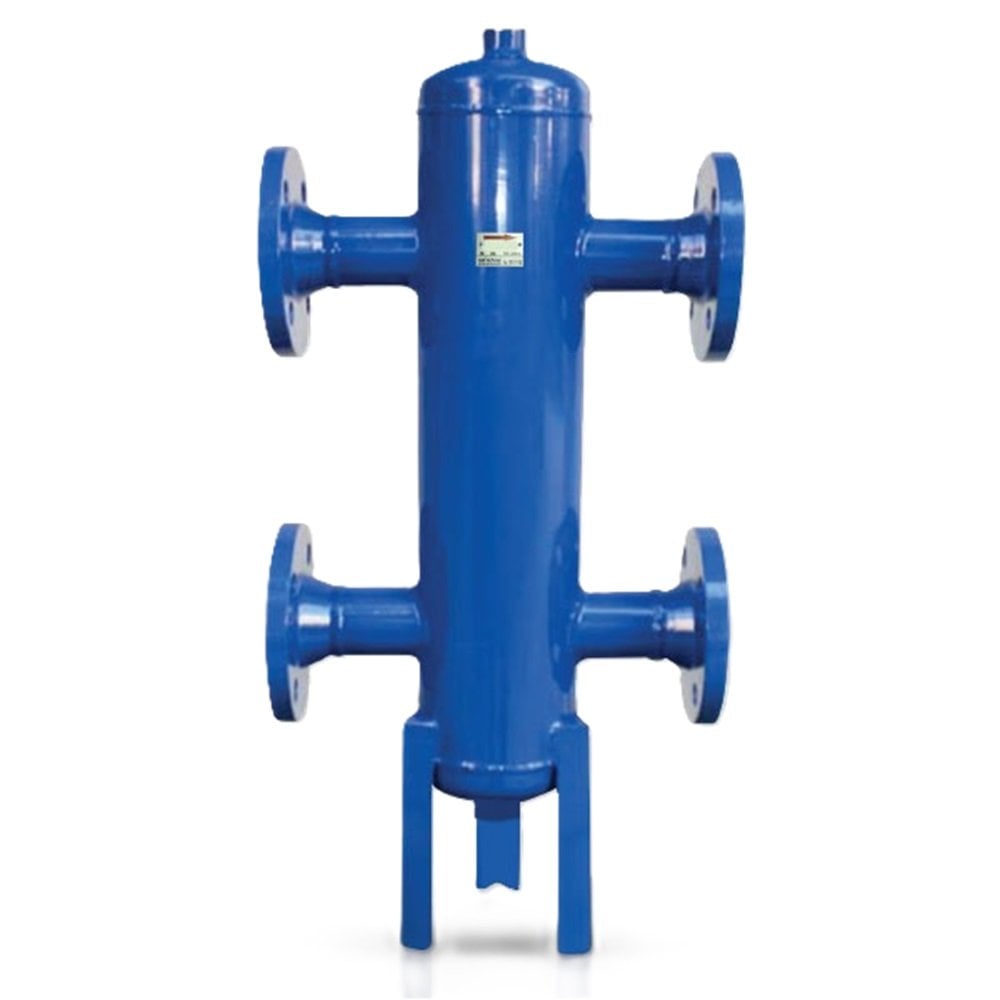

Ayvaz Denge Kabı
0 - Comment / Read Comments
Ask for Price
Please fill out the form below to request a price quote for this product.
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
Balance Cup
ORFA Industrial Products Industry and Trade Inc. sells balance tanks used to minimize heat loss in installations and extend the life of boilers. While our company does not manufacture these products, we do supply our customers with balance tanks that meet high-quality standards.
A surge tank is a device used to minimize heat loss during the return of the fluid used in installations from the system to the boiler. This temperature difference can cause thermal stress in the boiler, reducing its lifespan. The primary function of the surge tank is to maintain thermal equilibrium by mixing the cooled fluid from the system with the hot water from the boiler. This minimizes thermal stress and ensures efficient system operation.
Technical Specifications
Technical Specifications
Body Material: St 37.2 Carbon Steel
Maximum Working Pressure: 10 bar
Maximum Operating Temperature: 100 ºC
Connection Type: Weld Neck
Balance Cup Selection
The selection should be based on the maximum heating water flow rate in the heating system. The hydraulic surge tank should be sized to ensure a maximum water flow of 0.2 m/s. The primary pump should be selected to overcome the resistances of the boiler and the primary side piping. The secondary pump should be selected to overcome the resistances of the secondary side piping. All secondary heating circuits should have a separate pump. The resistance of the surge tank is negligible.
The flow temperature is measured by a flow temperature sensor located in a sensor housing near the secondary side flow, above the hydraulic surge tank. A drain valve is recommended for proper and efficient system operation.
Areas of Use
Central Heating Systems: In central heating systems, it ensures the thermal balance of the water returning from the installation to the boiler and increases the efficiency of the system.
Industrial Facilities: It is used to ensure thermal balance of large heating systems in factories and industrial facilities.
Boiler Rooms: It is used in boiler rooms to extend the life of the boiler and minimize thermal stresses.
Important Notes
Capacity kcal/h measurements may vary for diameters DN50, DN65, DN100, and DN150. It is important to specify these details when ordering.
A balance tank is the ideal solution for ensuring the efficient and long-lasting operation of your installation. By choosing the high-quality and reliable products of ORFA Industrial Products Industry and Trade Inc. , you can enhance the performance of your installation. Please contact us for your orders and detailed information.
