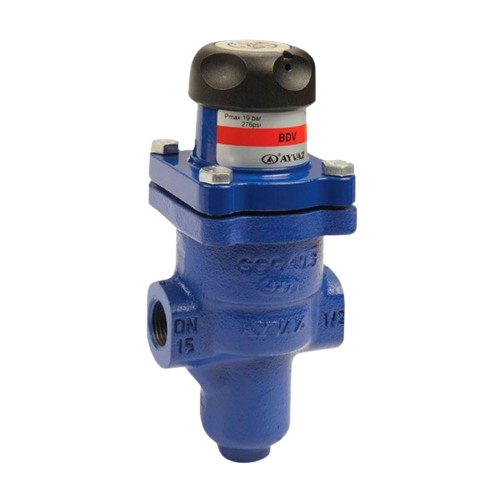

Ayvaz BDV-25 Direct Acting Pressure Reducing Valve PN25 3.5 - 8.6 Bar 3/4''
%62 Discounted Product
0 - Comment / Read Comments
465,64 EUR
176,94 EUR
Category
Brand
Stock Code
7037501000012
Warranty Period
24 Month
Price
388,03 EUR + VAT
* Installments starting from 176,94 EUR!
Add to Cart
Ayvaz BDV- Direct Acting Pressure Reducing Valve PN25 3.5 - 8.6 Bar 3/4"
Ayvaz BDV-25 Direct Acting Pressure Reducing Valve is a reliable control valve specially designed to keep the system pressure at a constant value. Thanks to its PN25 pressure class and 3.5 - 8.6 bar output adjustment range, it offers excellent performance in low pressure areas of use.
/4" This compact valve with threaded connection is generally preferred in steam, air, water and inert gas lines.
Stainless. The BDV-25 model, which provides long-lasting and safe operation thanks to its spring and sensitive internal mechanism, stands out with its ease of installation and maintenance-free structure. Specifications:
Brand:
AYVAZ Model:
Ayvaz BDV-25 Direct Acting Pressure Reducing Valve is a reliable control valve specially designed to keep the system pressure at a constant value. Thanks to its PN25 pressure class and 3.5 - 8.6 bar output adjustment range, it offers excellent performance in low pressure areas of use.
/4" This compact valve with threaded connection is generally preferred in steam, air, water and inert gas lines.
Stainless. The BDV-25 model, which provides long-lasting and safe operation thanks to its spring and sensitive internal mechanism, stands out with its ease of installation and maintenance-free structure. Specifications:
Brand:
AYVAZ Model:
BDV- Operation Type:
Direct acting Connection Size:
/4" Pressure Class:
PN Output Pressure Setting Range:
.5 - 8.6 bar Application Fluids:
Water, air, steam, gas Body Material:
Ductile Iron GGG 40. Valve Spring:
Stainless Steel AISI Filter:
Industrial steam lines
Stainless Steel AISI Filter:
Stainless Steel AISI Valve:
Stainless Steel AISI Sit:
Stainless Steel AISI Bellow:
Stainless Steel AISI Pressure Adjustment Spring:
Stainless Steel Adjustment Lock Pin:
Stainless Steel Adjustment Spring Cover:
Polypropylene Pressure Regulating Cap:
Polypropylene Pressure Adjustment Lever:
Stainless Steel AISI Top Cover:
Aluminium Head Gasket:
Graphite Valve Pressure Lever:
Stainless Steel AISI Pressure Reducing Valve Usage Areas:
Industrial steam lines
Water purification systems
Compressed air installations
Food and beverage industry
Heating-cooling systems
Pressure tanks and boilers
Ayvaz BDV-25 direct acting pressure reducing valve provides precise outlet pressure control in the range of 3.5 - 8.6 bar
. This product, which can be used safely in steam, air and water systems with its 3/4" threaded connection and PN25 class, is offered with the assurance of ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. . güvencesiyle sunulmaktadır.
. This product, which can be used safely in steam, air and water systems with its 3/4" threaded connection and PN25 class, is offered with the assurance of ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. . güvencesiyle sunulmaktadır.
| Tooth Measurement | : | 3/4'' |
| Body | : | Ductile Iron |
| Pressure Class | : | PN 25 |
