AYVAZ DBV-10 Automatic Boiler Bottom Blowdown System
Add to Cart
Please fill out the form below to request a price quote for this product.
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. As, , we offer advanced technology solutions to optimize the energy efficiency and equipment life of your industrial facilities. One of these solutions, AYVAZ DBV-10 Automatic Boiler Bottom Blowdown System is an indispensable tool to maintain the performance of your steam boilers and reduce maintenance costs.
In steam boilers, when the water cannot be properly treated or as a result of continuous steam production, the density of insoluble substances in the water (TDS) increases. This can lead to corrosion in the boiler and steam lines, scale accumulation and equipment failure, resulting in energy loss and reduced system efficiency. The process of removing these undesirable substances (usually calcium and magnesium salts) from the boiler water is called "Blowing" .

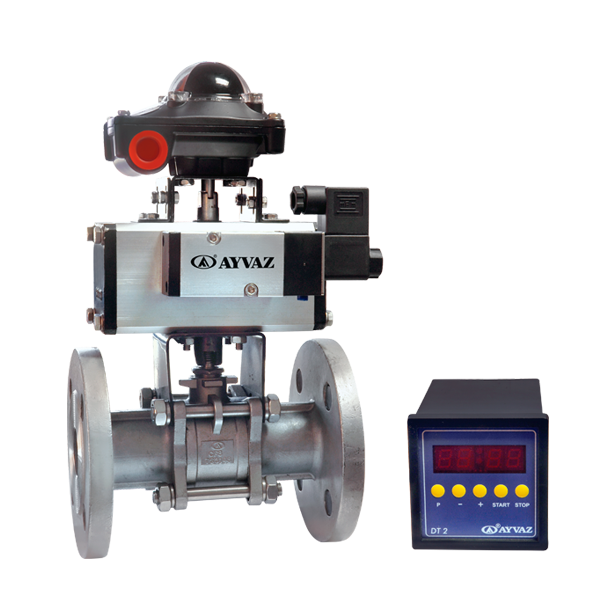

AYVAZ DBV-10 Automatic Boiler Bottom Blowdown System , especially the undesirable solids that settle to the bottom of the boiler water. Designed for evacuation of substances. This system consists of a timer, a complete stainless steel three-piece ball valve with actuator, pneumatic actuator and solenoid valve . It eliminates the need for manual intervention by automatically performing the bottom blowdown system operation at set time intervals. Regular evacuation of sediment and pollutants formed in the boiler increases boiler efficiency and reduces the risk of overheating.
Labour Savings with Automatic Blowdown:
-
Thanks to the automatic operation of the system, the need for manual blowdown is eliminated, which reduces operating costs and workload. Suitability for All Kinds of Steam Boilers:
-
Thanks to its wide application area, it can be used safely in different types of steam boilers. Blowdown System Technical Features:
-
Pressure Values: Maximum 16 bar
Operating Temperature:
-
Maximum 150 ºC System Components:
-
Timer, Stainless steel ball valve with actuator, Pneumatic actuator, Solenoid valve Application Area:
-
All steam boilers ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş.
-
AYVAZ DBV-10 Automatic Boiler Bottom Blowdown System , offered with the assurance, ensures long-lasting and efficient operation of your boilers by maintaining the optimum TDS level.
ORFA Endüstriyel Mamüller Sanayi ve Ticaret A.Ş. güvencesiyle sunulan AYVAZ DBV-10 Otomatik Kazan Dip Blöf Sistemi , kazanlarınızın optimum TDS seviyesini koruyarak uzun ömürlü ve verimli çalışmasını sağlar.
