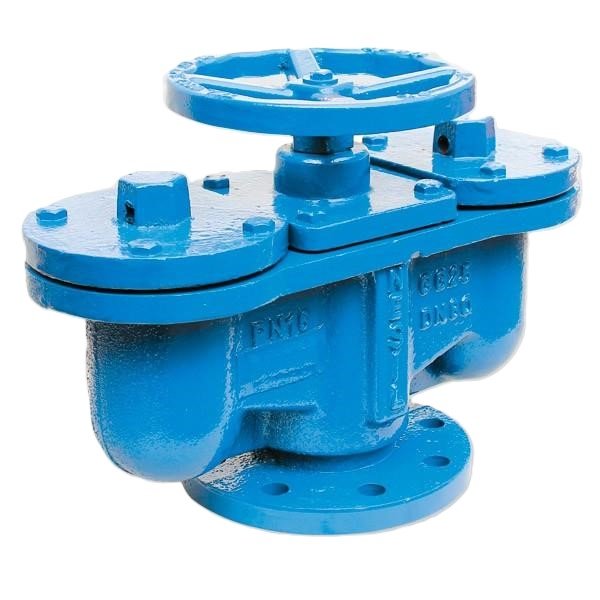

AYVAZ Double Ball Suction Cup PN16 DN50
0 - Comment / Read Comments
AYVAZ Double Ball Suction Cup PN16 DN
ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş . AYVAZ Double Ball Suction Cup PN16 DN50, offered for sale by , is a special line protection element designed to safely and efficiently evacuate air accumulations formed at pipelines and pump outlets. Providing higher performance than single-sphere suction cups, double-sphere suction cups prevent capacity losses by expelling air particles in the system quickly and effectively. In this way, both the pump and the pipeline are protected, ensuring long-lasting and efficient operation.
Double Ball Suction Cup Working Principle
When water is supplied to the pump or pipeline, the air trapped in the system narrows the flow area of the water, reducing efficiency. Double-sphere suction cup, thanks to two spheres inside the body and its special design:
It discharges excess air entering the pipeline as it fills,
It throws out the air gaps formed while the fluid is discharged,
Removes small air bubbles carried with the fluid during dynamic operation from the system.
This dual-stage drain system minimizes the risk of line blockage and ensures uninterrupted flow.
Specification
Body: GG-25 Cast Iron (Optional: GGG40 Ductile Iron)
Sphere: St.37 Carbon Steel + EPDM (Double Ball)
Head Gasket: EPDM / Klingerit
Cover: GG-25 Cast Iron
Nominal Diameter: DN
Compressive Strength: PN
Functions:
Discharge of large air masses during filling of the line
Evacuation of air pockets formed during evacuation
Expulsion of micro air bubbles during dynamic operation
Protection against clogging with high air output
Double Ball Suction Cup Usage Areas
Drinking water and industrial water lines
Pump outlets and long pipelines
Irrigation systems
Power plants and process plants
Fire extinguishing systems
Industrial production lines
AYVAZ Double Ball Suction Cup PN16 DN50, ORFA It is a durable and high-performance solution that increases efficiency in systems and protects pumps and pipelines, offered with industrial assurance. It is an ideal equipment for water and industrial fluid systems with its long-lasting material structure, double-sphere safety mechanism and design compatible with different operating conditions.
| Diameter-Dn | : | DN 50 |
| Body | : | Iron Casting |
| Pressure Class | : | PN 16 |
