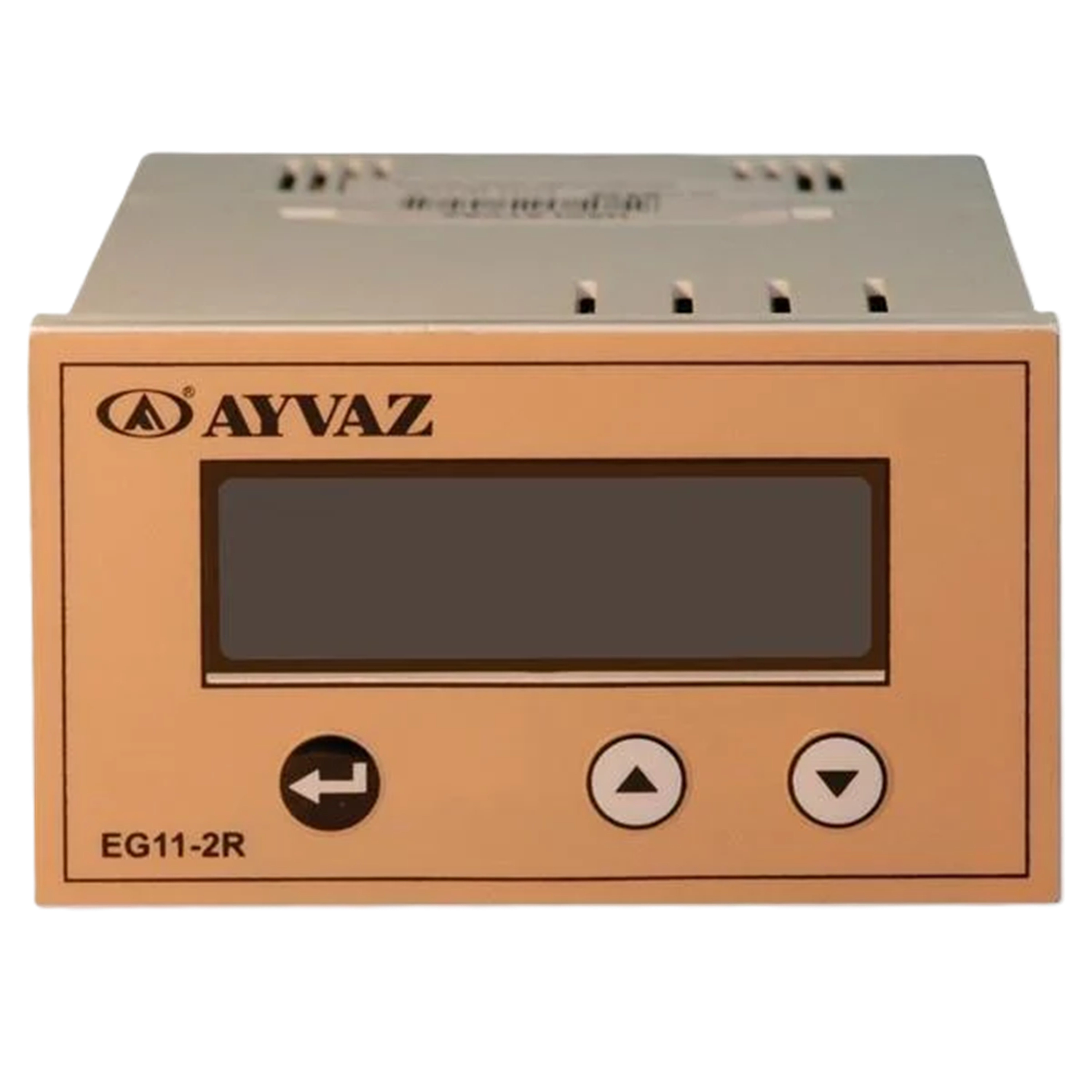

AYVAZ EG11-2R Level Measurement and Control Panel - High Precision Liquid Level Control
The AYVAZ EG11-2R Level Measurement and Control Panel, sold by ORFA Industrial Products Industry and Trade Inc., is a panel-type device manufactured for liquid level measurement and control. The AYVAZ EG11-2R Level Measurement and Control Panel can be used alone with a float magnetic level sensor or with a proportional rod in addition to our MG33 product. It provides precise measurement and control of liquid levels. Level information obtained by the state change of the reed switches is transmitted to the AYVAZ EG11-2R Level Measurement and Control Panel. The device converts this information into current (4-20 mA / 0-20 mA) and voltage (0-10 V (0-2.5V/5V/7.5V/10V)) signals. Current (4-20 mA / 0-20 mA) and voltage (0-10 V (0-2.5V/5V/7.5V/10V)) outputs can be selected from the device's menu. The display on the panel displays tank level information as a percentage (%). It changes relay outputs based on the set level ratios. These relay statuses (ON/OFF) are also displayed on the LCD screen. The AYVAZ EG11-2R Level Measurement and Control Panel has two relay outputs. Various devices such as motors, pumps, motorized valves, solenoid valves, and audible or visual alarms can be controlled using these relays.
AYVAZ EG11-2R Level Measurement and Control Panel Features:
Supply Voltage: 220 VAC 50/60 Hz (Optional 24 VDC)
Analog Outputs: 4-20 mA / 0-20 mA / 0-10 V (0-2.5V/5V/7.5V/10V)
AYVAZ EG11-2R Level Measurement and Control Panel Features:
Supply Voltage: 220 VAC 50/60 Hz (Optional 24 VDC)
Analog Outputs: 4-20 mA / 0-20 mA / 0-10 V (0-2.5V/5V/7.5V/10V)
AYVAZ EG11-2R Level Measurement and Control Panel Accessories:
Digital Display
Relay: 2 SPDT 250 VAC 50/60 Hz 7 A
Protection Class: IP 30 DIN 40050
Max. Ambient Temperature: 70 ˚C (158 ˚F)
Weight: 240 g
Dimensions: 103*60*109 mm (Width, Length, Depth)
Advantages of AYVAZ EG11-2R Level Measurement and Control Panel:
• Ability to receive contact at desired points
• Both open/closed contact can be obtained
• Ability to be used in places where there is no PLC
• Can be used away from the intuitive element
• Long life
• Complete stainless steel parts
• Simple installation and ease of use Application Areas
• Waste water and bilge tanks
• Waste / clean water tanks
• Food industry
• Atmospheric fuel tanks
• Chemical / petrochemical tanks
