Ayvaz ELK-4F Seviye Şalteri L:936mm
0 - Comment / Read Comments
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.

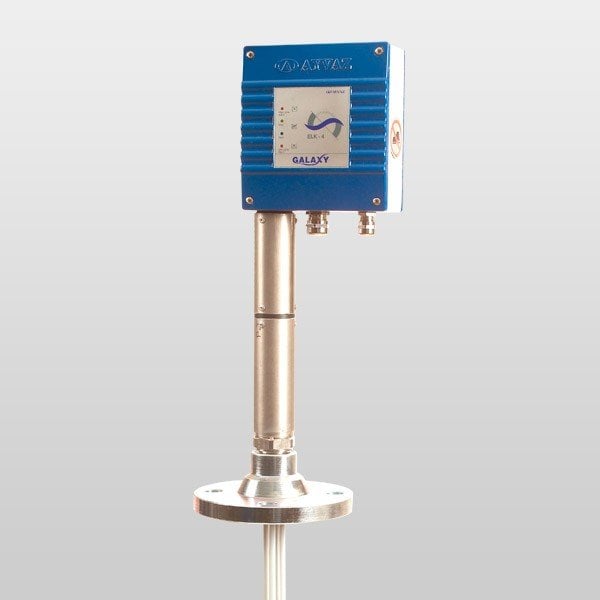

Galaxy Level Electrode
The Galaxy Level Electrode, sold by ORFA Industrial Products Industry and Trade Inc., is a high-quality product designed to measure liquid levels reliably and precisely. This electrode operates on the principle of conductivity measurement and is widely used in a variety of industrial applications. The Galaxy Level Electrode can detect four different levels and controls functions such as high-level alarm, low-level alarm, pump start, and pump stop. Control of all functions is integrated within the panel, eliminating the need for external control equipment.
The Galaxy Level Electrode provides precise level control in industrial processes, improving operational safety and efficiency. Operating on the conductivity measurement principle, this device utilizes the conductivity of the liquid to determine level. Operating with a 230V supply voltage, the Galaxy Level Electrode can withstand a maximum temperature of 238ºC and a pressure of 32 bar. Its stainless steel body and flanges ensure long-lasting use.
The Galaxy Level Electrode offers a reliable solution for a variety of industrial applications, including steam boilers, feed tanks, and chemical processes. This device, distinguished by its ease of installation and durability, provides control of all functions within the panel, eliminating the need for external control equipment. Electrode rod lengths can be adjusted to suit contact levels, making it suitable for a variety of applications, including maximum/minimum alarms and valve or pump control.
Product Features
Operating Principle: The Galaxy Level Electrode displays four different levels (upper level alarm, lower level alarm, pump start, pump stop) in conductive liquids. It uses the conductivity of the liquid to detect the level.
Control: No external control device is required; all functions are provided within the panel.
Thermal Insulation: A specially designed finned cooling tube is used for thermal insulation of the electrode.
Body and Material: It has a stainless steel body and flanges, and the case is produced with aluminum injection.
Electrode Rods: Before installation, the lengths of the electrode rods should be adjusted according to the contact levels.
Technical Information
Connection: 1” BSPT Threaded or DN32 - DN50 PN40 Flanged options are available.
Maximum Operating Temperature : 238 ºC
Maximum Working Pressure: 32 bar
Main Supply: 230V + 10%, 50-60Hz
Measuring Electrodes: Stainless Steel
Areas of Use
The Galaxy Level Electrode can be used in a wide range of applications:
Steam Boilers: Reliably controls the water level in steam boilers.
Feed Tanks: Monitors the liquid level in feed tanks and manages automatic filling and emptying processes.
Chemical Applications: Monitors liquid levels in chemical processes, increasing process safety and efficiency.
The Galaxy Level Electrode is the ideal solution for reliably monitoring and controlling liquid levels in industrial processes. Made from high-quality materials, it is long-lasting and durable. Backed by the expertise and assurance of ORFA Industrial Products Industry and Trade Inc. , the Galaxy Level Electrode will increase your business's efficiency and optimize your processes.
