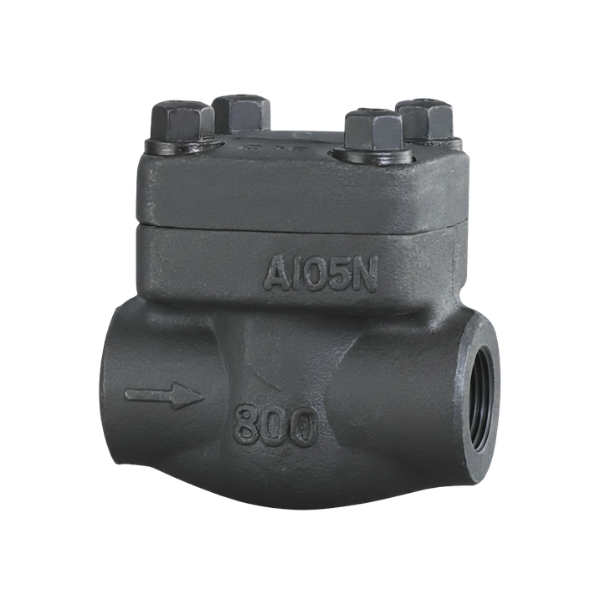

AYVAZ FPCV-10 Piston Check Valve API 602 1" DN25

AYVAZ FPCV-10 Piston Check Valve API 602 1"

Reliable Backflow Prevention for High-Pressure Lines with ORFA Industrial Assurance

Designed to prevent backflow and maintain maximum system safety in critical industrial applications, the piston check valve offers reliable performance under high pressure and temperature. The Ayvaz FPCV-10 series piston check valve fully complies with API 602 standards, ensuring controlled flow of steam, compressed air, and industrial gases. Manufactured from ASTM A105N forged steel, this piston check valve provides significantly higher mechanical strength and leakage-proof performance compared to cast products. With socket weld connection, pressurized lines can be directly integrated into this piston check valve. The Stellite 6-coated seat surface resists high-velocity flows and thermal shocks, guaranteeing a long service life. Rated Class 800, this piston check valve successfully operates at a maximum pressure of 140 bar (20 MPa). Thanks to the piston mechanism, fluid pressure automatically lifts the valve disc to allow flow, and during backflow, the disc fully seats to guarantee 100% leak tightness. Available from ORFA Industrial stock, this piston check valve with nominal diameter DN25 (1 inch) offers an ideal solution for standard industrial lines. In firefighting, chemical, and petrochemical plants, these piston check valves ensure full line control and prevent catastrophic consequences from unexpected backflow. Designed for easy installation and maintenance, the AYVAZ piston check valve is one of the most reliable check valve solutions in the industry.

Discover maximum safety, leak tightness, and long-lasting performance with AYVAZ piston check valve solutions for your industrial installation.
