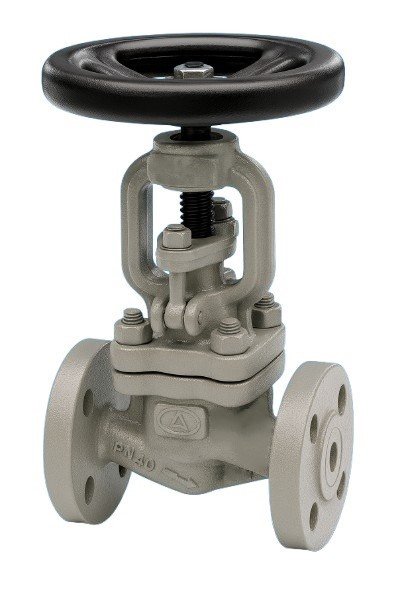

AYVAZ GV-40K Baskılı Glob Vana DN150
AYVAZ GV-40K Pressure Globe Valve DN
ORFA AYVAZ GV-40K Pressure Globe Valve DN150, sold by Endüstri Mamüller Sanayi ve Ticaret A.Ş. , is a valve solution that can be used safely in industrial applications with its high pressure and temperature resistant structure. While it provides smooth and laminar flow in pipelines thanks to its straight flow type design, it offers long-lasting use with its solid body structure and high sealing performance.
Pressed Globe Valve Working Principle
Globe valves perform the function of opening and closing the flow through the sensitive contact between the disc and the seat. The disc is positioned on the seat with the shaft movement controlled through the flywheel, allowing the flow to be controlled. Thanks to this mechanism, turbulence and pressure losses are minimized, and reliable and balanced flow is achieved in the system.
Specification
Body and Cover: GSC-25 Cast Steel
Sit: Cr Stainless Steel
Disc: Cr Stainless Steel
Connection Type: Flanged
Nominal Diameter: DN
Maximum Operating Temperature: ºC
Maximum Working Pressure: bar
Usage Areas of Pressured Globe Valve
Steam boilers and steam systems
Boiling water systems
Hot and cold water lines
Compressed air systems
Chemical fluid lines (acidic and non-alkaline liquids)
Ammonia and oil transfer lines
AYVAZ GV-40K Pressure Globe Valve DN150 is a product that can be used safely in critical industrial applications with its durability and resistance to high temperature and pressure. ORFA Thanks to Endüstri Mamüller Sanayi ve Ticaret A.Ş .'s expertise and wide product portfolio, you can easily obtain reliable solutions suitable for your industrial needs.
| Body Material | : | Cast Steel |
| Nominal Diameter (DN) | : | DN 150 |
