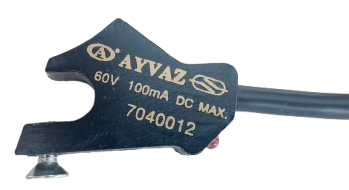

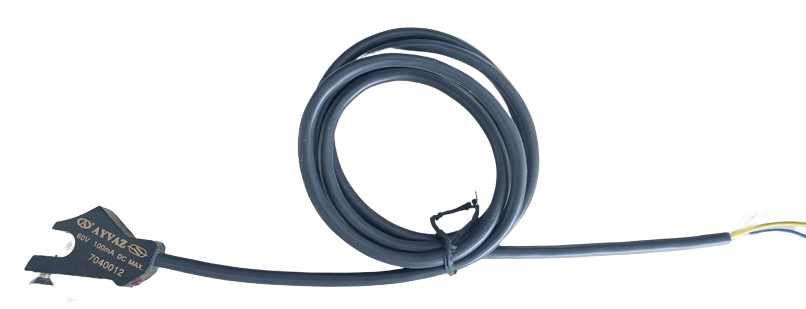

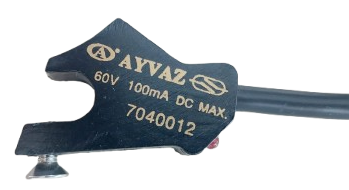

Ayvaz Intuition Element Mono-Stable Switch , Precise Control Solution Compatible with Magnetic Level Indicators
The Ayvaz Intuitive Element Mono-Stable Switch , sold by ORFA Industrial Products Industry and Trade Inc., integrates with MG-33 series magnetic level indicators to provide high-precision level control in process systems. Its compact design, durability, and easy installation enhance process safety. When the magnetic float reaches the predetermined level, it generates an output signal via a dry contact (reed switch). This output can be safely used in critical applications such as pump control, alarm systems, and automatic valve triggering. Plastic-bodied models can be safely used up to 80°C, while metal-bodied versions can be safely used in high-temperature environments (above 80°C).
Technical Specifications (at 25°C)
Absolute Maximum Values:
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Forward Current | I F | 20 | mA |
| Reverse Voltage | VR | 5 | V |
| Working Temperature | Top | -25 ~ +80 | °C |
| Storage Temperature | T str | -25 ~ +80 | °C |
| Peak Forward Current (10ms) | I FP | 100 | mA |
| Maximum Forward Voltage | V MF | 60 | V |
Electrical/Optical Characteristic Values:
| Parameter | Symbol | Test Status | Typical | Unit |
|---|---|---|---|---|
| Forward Voltage | V F | IF =20mA | 2.0 | V |
| Reverse current | I R | VR =5V | 20 | µA |
| Light Intensity | I v | IF =20mA | 30 | mcd |
| Dominant Wavelength | λ d | IF =20mA | 645 | nm |
| Static Contact Resistance | CR s | - | 150 | mΩ |
| Insulation Resistance | R i | - | 10 9 | Ω |
| Typical Capacitance | C | Reed Switch | 0.5 | pF |
Areas of Use:
Industrial tank level control
Pump start/stop systems
High/low level alarm systems
Automatic valve control circuits
Chemical, food, energy and water treatment processes
The Ayvaz Intuitive Element Mono-Stable Switch , compatible with MG-33 level indicators, provides precise and reliable level control in process systems. Available in plastic and metal housings, it offers a wide temperature range.
