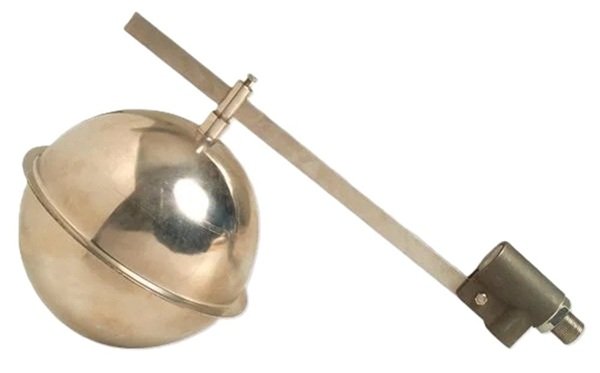

Ayvaz KTS-50 Stainless Steel Tank Float Valve 1''

Flexible and Corrosion-Resistant Level Solutions with ORFA Endüstriyel Assurance

The Ayvaz KTS-50 series, presented with the expertise of ORFA ENDÜSTRİYEL MAMÜLLER SANAYİ VE TİCARET A.Ş., is a professional tank float valve system designed for precise level control in all types of industrial fluid storage tanks. Thanks to its complete AISI 304 stainless steel fluid-contact structure, this tank float valve exhibits maximum resistance against corrosion and fully complies with high hygiene standards in the food, pharmaceutical, and chemical industries. Offering different threaded connection options such as 3/4" and 1", our mechanical tank float valve model is manufactured with adjustable float dimensions upon request. For aggressive fluids in challenging processes, this tank float valve product can also be supplied with an optional Teflon (PTFE) coated surface. Having the flexibility of vertical or horizontal installation, the stainless steel tank float valve shuts off the flow when the liquid level rises to prevent overflows, and automatically starts filling when the level drops. This robust tank float valve equipment, which has a much higher strength than plastic equivalents, provides trouble-free service for many years with low maintenance costs. Choosing a high-quality tank float valve is the most critical step for the safety of fluid management processes in industrial plants.

Technical Data Details

Model / Product Type: Ayvaz KTS-50 Level Tank Float Valve
Connection Size: 3/4” - 1'' Threaded Tank Float Valve Connection
Material Structure: AISI 304 Complete Stainless Steel Tank Float Valve Body
Float Ball: AISI 316 Stainless Steel (Optional Teflon Tank Float Valve)
Float Diameter: 220 mm Standard / 150 mm Optional Tank Float Valve Ball
Max. Working Pressure: Standard: 6 Bar / Large Size Tank Float Valve: 8 Bar
Max. Working Temp: 90 °C Level Control (Maximum 150 °C Resistance)
Mounting Type: Horizontal or Vertical Installation Suitable Tank Float Valve

Material Structure / Parts List

No Tank Float Valve Part Name Material
1 Float (Ball) AISI 316
2 Connection Part AISI 304
3 Rod (Lever) AISI 304
4 Main Body AISI 304

Key Advantages

  • Chemical Resistance: Stainless steel tank float valve with optional Teflon coating for aggressive liquids.
  • Flexible Mounting: A tank float valve mechanism that can be installed vertically or horizontally.
  • Variable Sizes: Custom-made tank float valve ball with optional diameters specific to the process.
  • Precise Control: Robust tank float valve design providing millimetric mechanical level control.

Application Areas

  • Mechanical tank float valve applications in water, pure water, neutral liquids, and industrial water tanks.
  • Hygienic tank float valve usage in food processes and pharmaceutical industry storage systems.
  • Teflon-coated tank float valve solutions for acid tanks containing aggressive fluids in the chemical industry.
  • Use of tank float valve in treatment plants, large reservoirs, and industrial fluid storage areas.

The Ayvaz KTS-50 series brings flexibility, high material quality, and precise engineering to your project in fluid technologies. This tank float valve, offered with the assurance of ORFA Endüstriyel, makes a difference with its customizable structures and superior sealing performance. Providing the professional fluid level management your installation needs with this mechanical tank float valve system will maximize your operational safety and system continuity. For long-term efficiency, the Ayvaz tank float valve is always the most accurate engineering choice.

ORFA ENDÜSTRİYEL MAMÜLLER SANAYİ VE TİCARET A.Ş.

Your Trusted Solution Partner in Industrial Fluid Technologies

Body Material : Stainless
Thread Size : 1''
