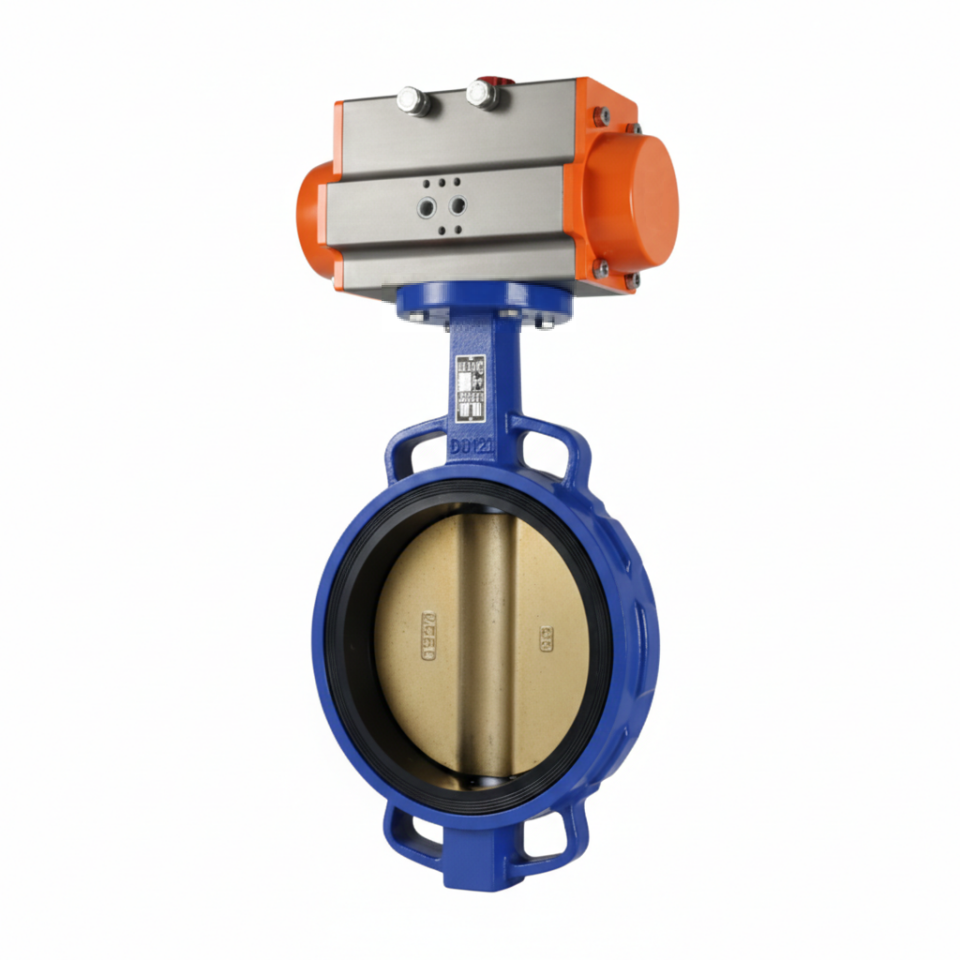

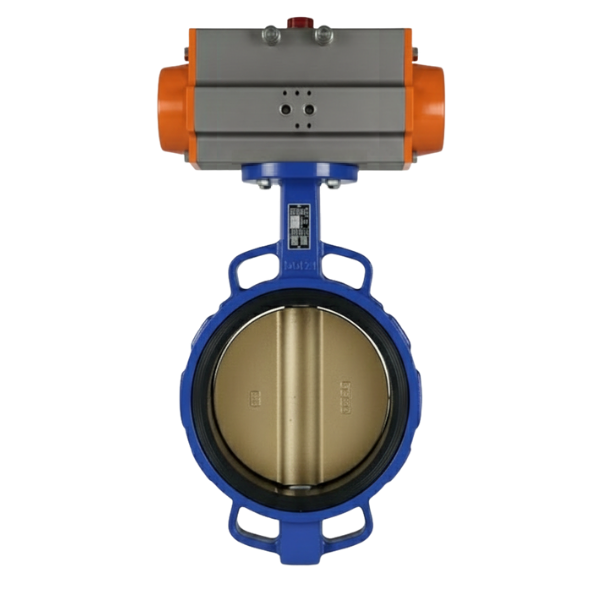

Ayvaz KV-17 Pneumatic Actuated Butterfly Valve
The Wafer Type Butterfly Valve with Double-Acting Pneumatic Actuator, offered by ORFA Industrial Products Industry and Trade Inc. , is a superior valve offering high performance and reliability in industrial facilities and various applications. This butterfly valve is specifically designed to control fluid flow and operates quickly and precisely thanks to its double-acting pneumatic actuator.
The Ayvaz KV-17 Pneumatic Actuated Butterfly Valve is a lightweight and compact valve that minimizes pressure loss, is easy to open and close, and provides excellent sealing. The closing element is a disc rotating around a shaft positioned vertically. This disc, when installed, rotates around its axis to open or close the entire pipe section. Sealing is achieved between the aluminum bronze disc and the elastic or plastic sealing elements lining the body. The sealing element also serves as a gasket on the flange between the valve and the pipe.
Technical Information of Ayvaz KV-17 Pneumatic Actuated Butterfly Valve:
Body: GGG-40.3 Ductile Iron
Valve: Aluminum Bronze
Shaft: AISI 420 Stainless Steel
Gasket: NBR
Max. Operating Temperature: 90 ºC
Working Pressure: PN16 (DN 40-300) / PN10 (DN 350-600)
Flange Pressure Class: PN16
Connections: Wafer Type
Actuator Type: Double Acting Pneumatic
Ayvaz KV-17 Pneumatic Actuated Butterfly Valve Working Principle
Wafer-type butterfly valves are effective and efficient components used in fluid control. Equipped with a double-acting pneumatic actuator, these valves operate with a principle that ensures fast and reliable fluid flow management.
Basic Working Mechanism
In wafer-type butterfly valves, the disc, called the closing element, rotates around a shaft positioned vertically. This disc, mounted within the valve body, controls the flow of fluid. The disc can rotate 90 degrees around its axis; this rotation allows the valve to be fully open or fully closed.
Double Acting Pneumatic Actuator
A double-acting pneumatic actuator uses compressed air to open and close the valve. This type of actuator uses air pressure for both opening and closing. The operating principle of a double-acting pneumatic actuated wafer-type butterfly valve is explained step by step below:
Opening Process:
- Compressed air enters the actuator through the inlet port and moves the pistons inside the actuator.
- The pistons rotate the valve disc, which is connected to the actuator shaft, allowing the valve to open.
- When the disc rotates 90 degrees, the valve is fully open and fluid can pass freely.
Closing Process:
- Compressed air enters the actuator through the other inlet port and moves the pistons in the opposite direction.
- This movement rotates the disc, allowing the valve to close.
- When the disc rotates 90 degrees, the valve becomes fully closed and the fluid flow stops.
Sealing and Security
Butterfly valves' sealing elements are provided between the metal clack and the elastic or plastic sealing elements lining the inside of the body. These sealing elements prevent fluid leakage when the valve is in the closed position. These elements also act as a gasket on the flange between the valve and the pipe, eliminating the need for additional gaskets during installation.
Ayvaz KV-17 Pneumatic Actuated Butterfly Valve Usage Areas:
Heating, Ventilation and Air Conditioning Systems (HVAC): Increases energy efficiency and provides control.
Water Purification and Distribution Systems: Provides reliable water flow control.
Mining Industry: Provides performance even under harsh conditions with its durable structure.
Shipbuilding and Drilling Facilities: Manufactured with materials suitable for marine environments.
Food and Chemical Businesses: Provides hygienic and reliable flow control.
Oil and Gas Processes: Safe flow control with high pressure and temperature resistance.
Fire Extinguishing Systems: Effective solution in emergency situations with fast and reliable on-off mechanism.
The Wafer-Type Double-Acting Pneumatic Actuated Butterfly Valve offers superior performance and reliability in industrial facilities, water and gas distribution networks, HVAC systems, and many other applications. At ORFA Industrial Products Industry and Trade Inc. , we always prioritize customer satisfaction and quality.
| Body Material | : | Ductile Iron |
| Pressure Class (PN) | : | PN 16 |
| Nominal Diameter (DN) | : | DN 40 |
| Gasket / Seal Material | : | NBR |
| Disc Material | : | Aluminum Bronze |
