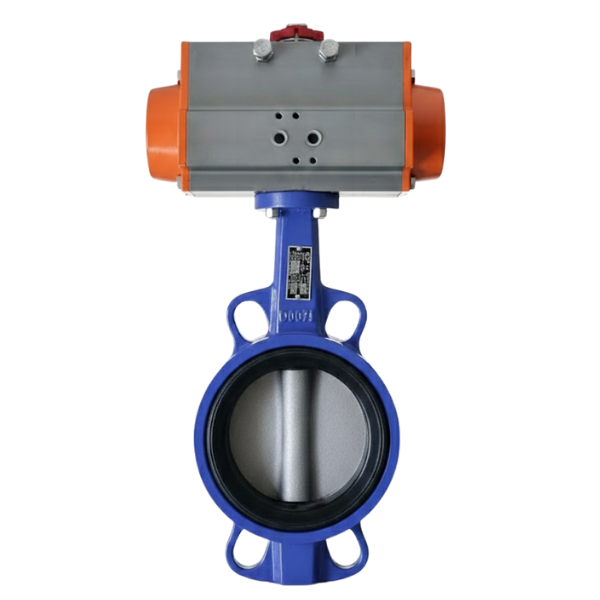

AYVAZ KV-3 Wafer Tip Tek Etkili Pnömatik Aktüatörlü Kelebek Vana PN16 DN80

AYVAZ KV-3 Wafer Type Single Acting Pneumatic Actuated Butterfly Valve PN16 DN80

Controlled Air Actuated Automation with ORFA Industrial Assurance

Offering a sensitive solution in industrial flow control systems, the pneumatic actuated butterfly valve converts the power of compressed air into mechanical motion, ensuring a reliable lifecycle. This pneumatic actuated butterfly valve from the Ayvaz brand's KV-3 series, size DN80 PN16, features a wafer-type body for compact design and lightweight installation. The body is made of GG-25 cast iron, and the professional pneumatic actuated butterfly valve offers full resistance to aggressive fluids and high temperatures thanks to its AISI 316 stainless steel disc. A remarkable feature of the single-acting pneumatic mechanism is that when the air supply is cut off, the spring automatically returns the valve to a preset safe position, maintaining system integrity; this design meets the safety standard known as "failsafe". With H-EPDM sealing, this pneumatic actuated butterfly valve guarantees leak-tightness up to 130°C and can be safely used in steam, hot water, and hazardous chemical lines. To protect against external influences, this pneumatic actuated butterfly valve undergoes special treatments by Ayvaz technicians, and aluminum cast pistons provide fast and effective response characteristics. In ORFA Industrial stocks, the DN80 PN16 pneumatic actuated butterfly valve units offer flexibility with an actuator system that can be supplied between 3 and 8 Bar. Chosen for your project to ensure energy savings and control safety, this pneumatic actuated butterfly valve shows wide compatibility with various fluid types and can be easily integrated at the installation site. Each pneumatic actuated butterfly valve unit passes through certified test procedures, with data recorded on precision and pneumatic response timing. To maximize your project's safety requirements, choose the Ayvaz pneumatic actuated butterfly valve and start a controlled and successful system operation.

Maximize system safety and control efficiency with AYVAZ KV-3 pneumatic actuated butterfly valve solutions.
