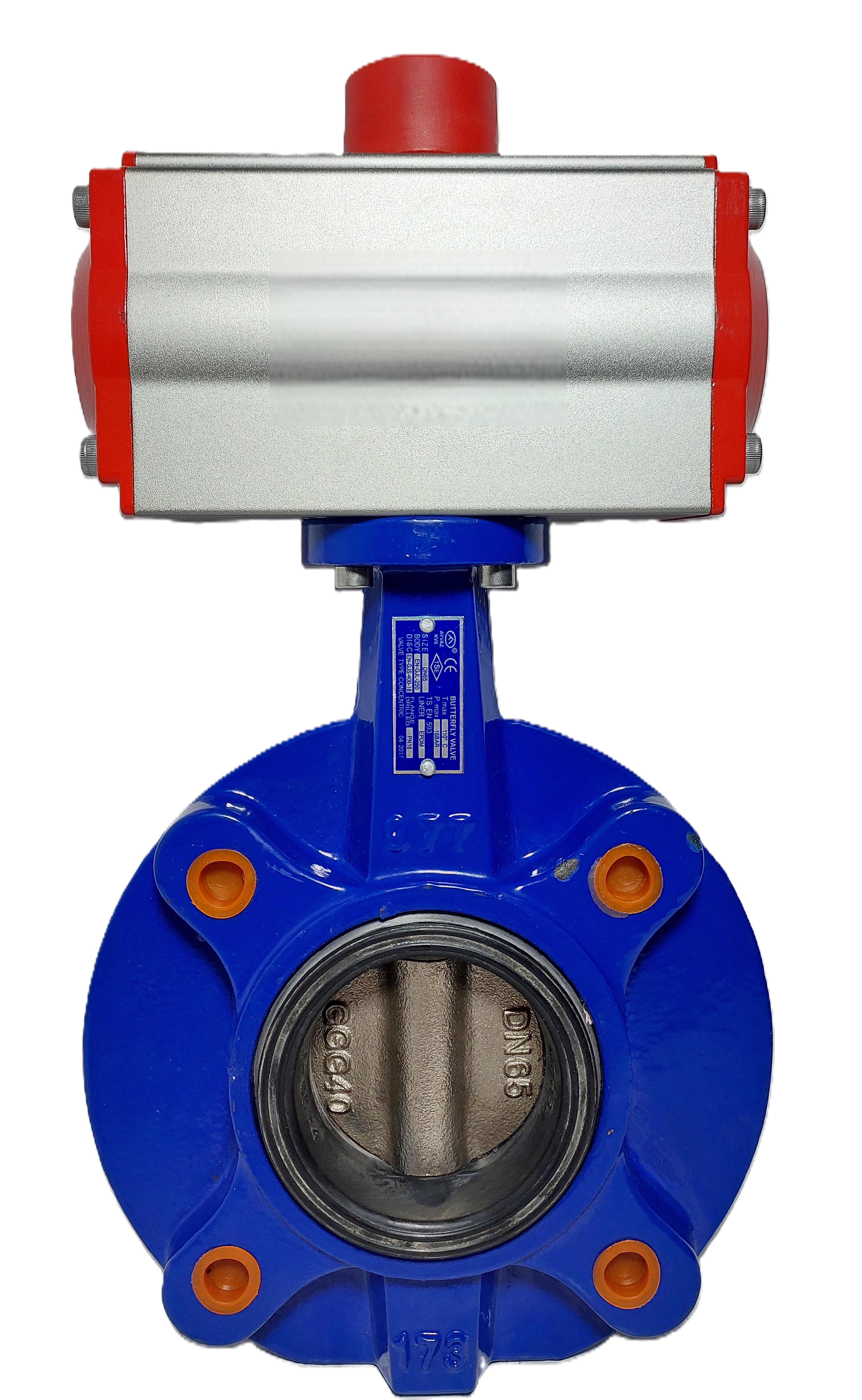

Ayvaz KV-8 Butterfly Valve with Pneumatic Actuator DN65
%62 Discounted Product
0 - Comment / Read Comments
297,58 EUR
113,08 EUR
Brand
Stock Code
708030505050ÇEA
Warranty Period
24 Month
Price
247,99 EUR + VAT
* Installments starting from 113,08 EUR!
Add to Cart
Ayvaz KV-8 Butterfly Valve with Pneumatic Actuator DN25 PN16: Reliable and Automatic Flow Control
ORFA Offered with the assurance of Endüstri Mamüller Sanayi ve Ticaret A.Ş. Ayvaz KV-8 Butterfly Valve with Pneumatic Actuator DN25 PN is a modern valve solution developed for safe, fast and automatic control of fluids (water, sea water, gas, air, waste water, etc.) in industrial installations. With its DN25 nominal diameter and PN16 pressure class, it provides high performance and long-lasting use, especially in medium-sized lines. Ayvaz with Pneumatic Actuator KV-8 What is Butterfly Valve and How Does It Work?
Butterfly valves, flow It provides control through a rotating disk mounted on the shaft. The disc opens or closes the fluid passage by rotating on the vertical axis.
The double-acting pneumatic actuator used in this model opens and closes the valve using compressed air. Thus, fast and powerful flow control is achieved with full automation, without manual intervention. Sealing is provided by the H-EPDM gasket covering the inside of the body and provides long-term reliability.
Butterfly valves, flow It provides control through a rotating disk mounted on the shaft. The disc opens or closes the fluid passage by rotating on the vertical axis.
The double-acting pneumatic actuator used in this model opens and closes the valve using compressed air. Thus, fast and powerful flow control is achieved with full automation, without manual intervention. Sealing is provided by the H-EPDM gasket covering the inside of the body and provides long-term reliability.
Special Features of Ayvaz KV-8 Butterfly Valve with Pneumatic Actuator
Pneumatic Actuator:
Pneumatic Actuator:
Provides high speed and reliability by providing on-off control with compressed air. Body Material:
@GG-25 cast iron body, mechanical strength and long-lasting use Clapper:
Nickel plated disc provides superior resistance to wear and corrosion. Shaft:
AISI 420 stainless steel shaft, high durability Gasket:
H-EPDM provides high sealing and chemical resistance thanks to the gasket. Working Pressure:
Provides safe operation in PN16 class for DN25 (@PN16 between @1@@@–250, PN10 between DN300–600). Maximum Operating Temperature:
Endurance up to 130 °C. Flange Pressure Class:
Compatible with PN16 standard. Low Pressure Loss:
It offers energy efficiency with its fluid-friendly design. Ease of Maintenance:
The gasket is also the sealing element between the valve and the flange. Areas of Use
Ayvaz KV-8 Butterfly Valve with Pneumatic Actuator appeals to a wide range of industrial uses.
Ayvaz KV-8 Butterfly Valve with Pneumatic Actuator appeals to a wide range of industrial uses.
Heating, ventilation and air conditioning (HVAC) systems
Water purification and distribution systems
Marine and shipbuilding construction
Mining and drilling facilities
Food and chemical industry processes
Fire extinguishing lines
Air, gas, waste water and sea water pipelines
Ayvaz KV-8 Butterfly Valve with Pneumatic Actuator DN25 PN
is an indispensable flow control element of modern industrial systems with high strength, reliable sealing and full automation. ORFA Industrial , combined with its expertise in the sector and reliable product supply approach, offers a long-lasting and efficient solution to your installations. ’in sektördeki uzmanlığı ve güvenilir ürün tedarik anlayışıyla birleşerek, tesisatlarınıza uzun ömürlü ve verimli bir çözüm sunar.
is an indispensable flow control element of modern industrial systems with high strength, reliable sealing and full automation. ORFA Industrial , combined with its expertise in the sector and reliable product supply approach, offers a long-lasting and efficient solution to your installations. ’in sektördeki uzmanlığı ve güvenilir ürün tedarik anlayışıyla birleşerek, tesisatlarınıza uzun ömürlü ve verimli bir çözüm sunar.
| Diameter-Dn | : | DN 65 |
| Body | : | Iron Casting |
| Pressure Class | : | PN 16 |
