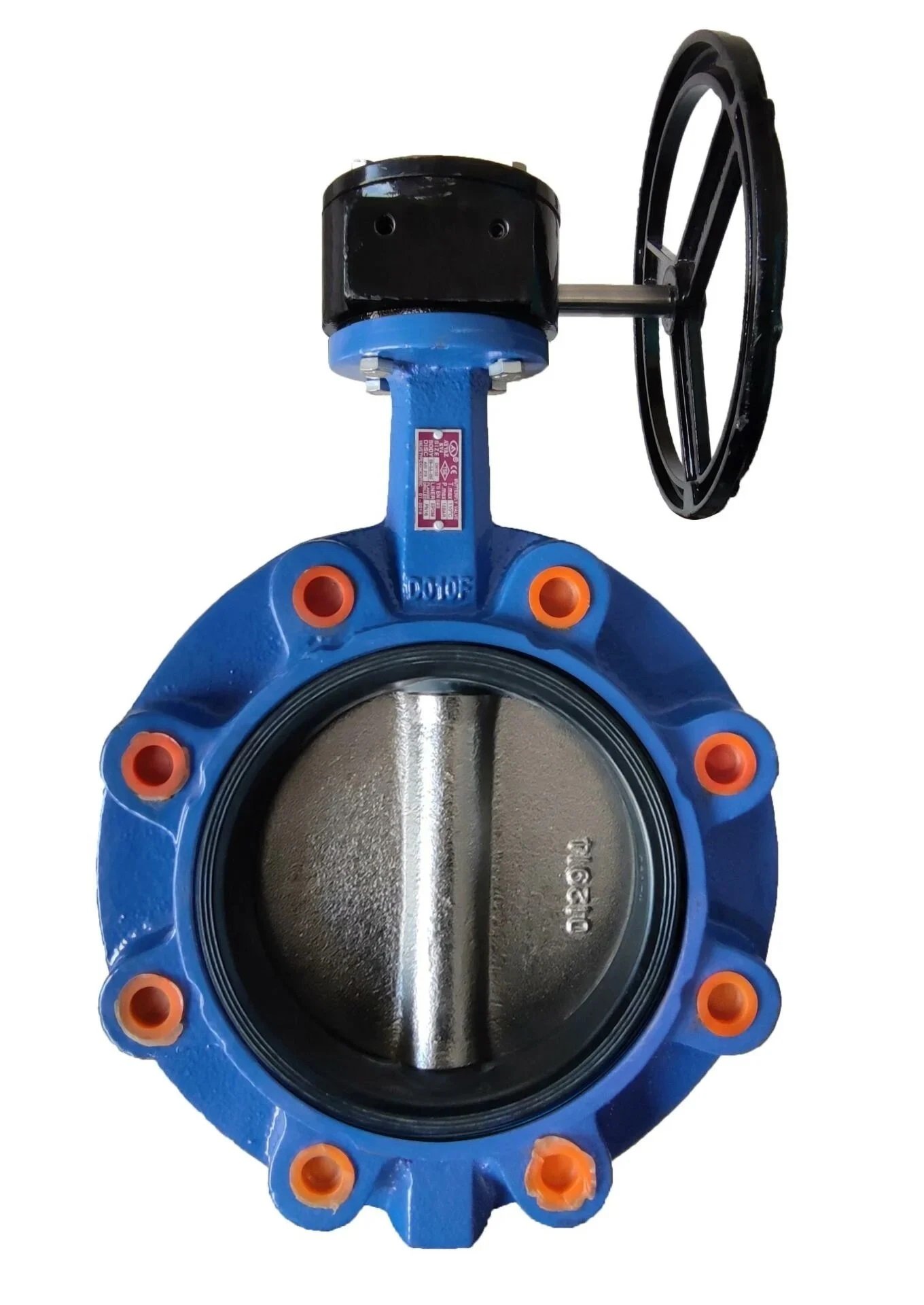

AYVAZ KV-8 Lug Tipi Redüktörlü Kelebek Vana DN450
Category
Brand
Stock Code
1601004007020190040000220
Warranty Period
24 Month
AYVAZ KV-8 Lug Type Reducer Butterfly Valve DN
ORFA Industrial Products Industry and Trade AYVAZ KV-8 Lug Type Reducer Butterfly Valve DN450, sold by A.Ş , is one of the industrial valve solutions that offers high performance, reliable sealing and long-lasting use. While it provides the advantage of easy installation and maintenance thanks to its Lug type connection system, its reducer design allows comfortable and safe use in large diameter lines. It is provided by the disk rotating around it. The disc opens the pipeline fully, allowing free passage of flow, or closes it to ensure full sealing. KV-8 series offers excellent sealing performance between both the metal flap and the elastic/plastic sealing element with its specially designed gasket structure. Features
Body:
GG-25 Cast Iron
Clapper:
GGG40.3 Nickel Plated Ductile Iron Casting , and
Lug Type Connection Size:
DN Working Pressure:
PN16 (DN25-300) / PN10 (DN350-600) Flange Pressure Class:
PN Maximum Operating Temperature:
ºC Actuator Types:
Reducer Note:
DN350 and above butterfly valves are only reducer type Areas of Use
Heating, ventilation and air conditioning systems (@53@@) Water treatment and distribution systems
Mining industry Shipbuilding and drilling facilities
Food and chemical industry Fire extinguishing systems
Water, seawater, wastewater, gas, dust and air lines
AYVAZ KV-8 Lug Type Reducer Butterfly Valve DN450 is a safe, durable and easily controllable valve solution in high diameter pipelines. presents.
ORFA Industrial
Supplied with quality assurance, this product is one of the solutions preferred by businesses by providing long-lasting and reliable performance in different sectors.
Gemi inşası ve sondaj tesisleri
Gıda ve kimya endüstrisi
Yangın söndürme sistemleri
Su, deniz suyu, atık su, gaz, toz ve hava hatları
AYVAZ KV-8 Lug Tipi Redüktörlü Kelebek Vana DN450, yüksek çaplı boru hatlarında güvenli, dayanıklı ve kolay kontrol edilebilir bir vana çözümü sunar. ORFA Endüstriyel ’in kalite güvencesiyle tedarik edilen bu ürün, farklı sektörlerde uzun ömürlü ve güvenilir performans sağlayarak işletmelerin tercih ettiği çözümlerden biridir.
| Body Material | : | Casting |
| Nominal Diameter (DN) | : | DN 450 |
| Gasket / Seal Material | : | EPDM |
| Disc Material | : | Nickel Plated Ductile Iron |
