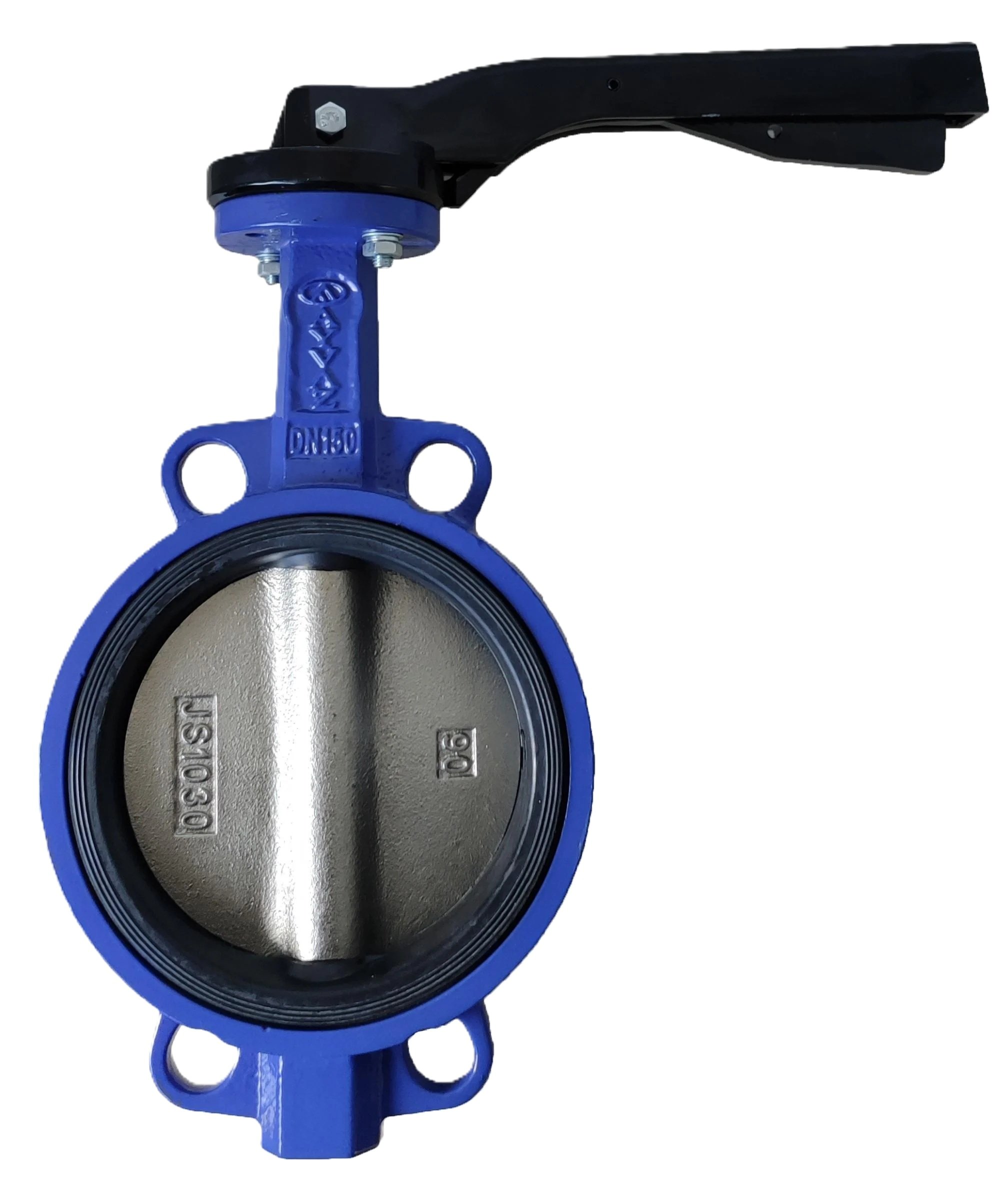

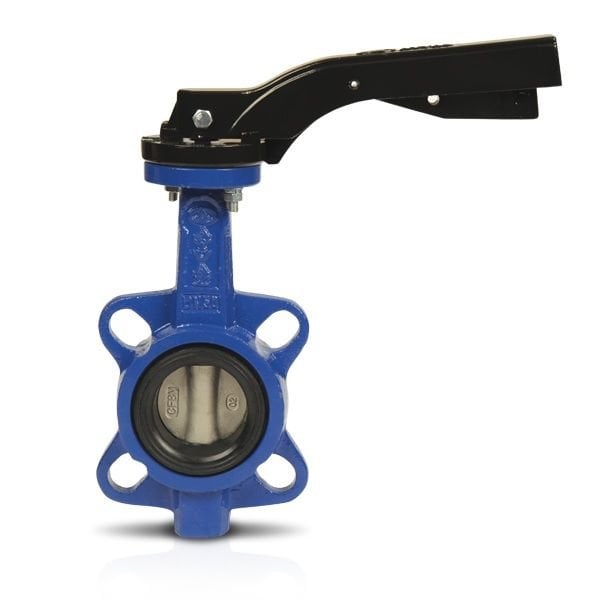

AYVAZ KVA-7 Wafer Type Butterfly Valve DN150
0 - Comment / Read Comments
KVA-7 Wafer Type Butterfly Valve
ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. As , we are pleased to present the KVA-7 Wafer Type Butterfly Valve Nickel Clamp product, which is in the industrial valves category, to our valued customers. Designed in accordance with superior quality standards, this valve stands out with its reliability and high efficiency in modern industrial applications.
The closing element in butterfly valves is a disc rotating around a shaft placed on the vertical axis. When assembled, it rotates around its own axis to form a disk that opens or closes the full pipe section. Sealing is provided between the metal flap and the elastic or plastic sealing elements covering the inside of the body. The sealing element also serves as a gasket on the flange between the valve and the pipe. Advantages of this type of Wafer Type Butterfly Valve; It has low pressure losses, easy opening and closing, good sealing, light weight and takes up little space.
Wafer Type Butterfly Valve Technical Information:
Actuator Types: Hand Operated
Connections: Wafer Type
Connection Size: DN
Connection Size: DN
Body: GG-25 Cast Iron
Clapper: GGG40.3 Nickel Plated Ductile Iron
Shaft: AISI 420 Stainless Steel
Gasket: H-EPDM
Max. Operating Temperature: ºC
Operating Pressure: PN16 (DN 25-300) / PN10 (DN 350-600)
Flange Pressure Class: PN
Advantages of Wafer Type Butterfly Valve:
Low Pressure Loss: Minimizes flow resistance thanks to its special design.
Easy to Use: With its light and compact structure, it can be easily assembled, opened and closed.
High Tightness: Provides perfect sealing between the metal flap and the elastic gasket.
Flexible Mounting: Provides the possibility of mounting the shaft in horizontal or vertical position (horizontal mounting above @39@@300 should be preferred).
Wafer Type Butterfly Valve Areas of Use:
Heating, Ventilation and Air Conditioning Systems: Increases energy efficiency and ensures reliable performance.
Water Purification and Distribution Systems: Provides clean and reliable water flow.
Mining Industry: With its durable structure, it provides reliable performance in harsh working conditions.
Shipbuilding and Drilling Facilities: It has a long life thanks to its structure compatible with sea water and other corrosive substances.
Sugar Industry, Food and Chemical Enterprises: Provides hygienic and reliable use.
Fire Extinguishing Systems: Provides a fast and reliable closing mechanism.
Water, Seawater, Dust, Gas, Wastewater and Air: It is preferred in various industrial applications with its versatile use.
Notes:
It is recommended to use the reducer type for all diameters. DN350 and above Wafer Type Butterfly Valve is only produced as reducer type.
KVA-7 Wafer Type Butterfly Valve Nickel Flap offers an ideal solution for your industrial needs. You can visit our website or contact us to get more information about the product and to place an order.
ORFA Industrial Products Industry and Trade Inc.
Reliable, Durable and Innovative Solutions
| Diameter-Dn | : | DN 150 |
| Pressure Class | : | PN 16 |
