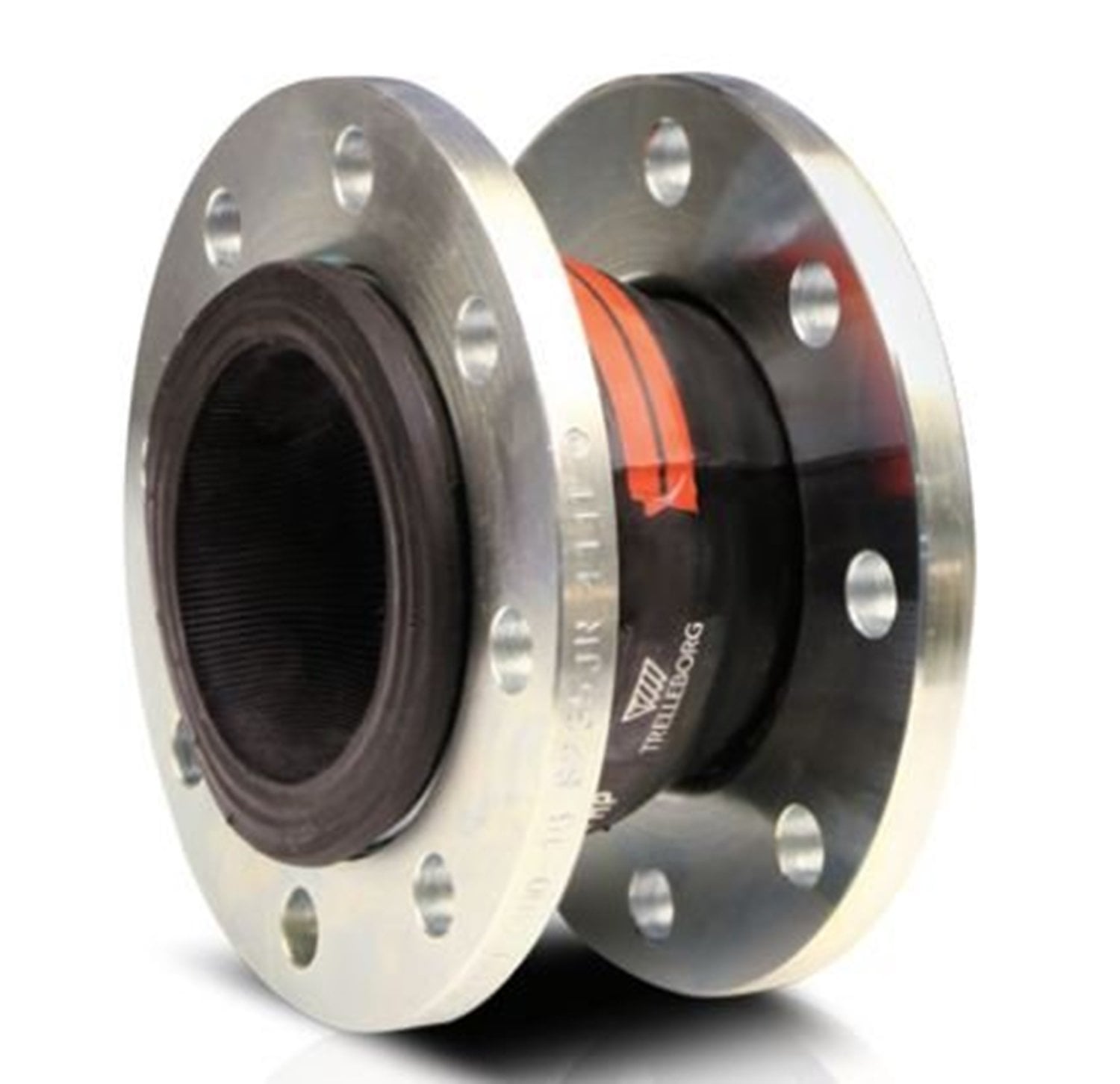

Vibration Absorber Rubber Expansion Joint Marine Type High Temperature EPDM
ORFA Industrial Products Industry and Trade Inc. sells the Marine Type High Temperature EPDM HP Vibration Absorbing Rubber Expansion Joint. These expansion joints are expansion joints that effectively absorb vibration and noise generated in systems. As indispensable elements of suction and delivery pump systems, they play a significant role in reducing thermal and mechanical stresses. They absorb three-dimensional (horizontal, angular, and axial) movements to compensate for irregular movements in cooling lines. Thanks to their heat-resistant construction, they can also be safely used in hot water systems.
Product Features:
Vibration and Noise Isolation: Thanks to its soft skeleton structure, it isolates vibration and intense sounds in all directions and prevents noise generation.
Thermal and Mechanical Stress Reduction: Absorbs elongation and shortening caused by temperature changes and compensates for lateral and angular movements.
Knock Absorption and Water Hammer Prevention: Absorbs water knock and prevents water hammer.
Easy Installation: Thanks to its rotating flanges, it can be easily installed in pipelines. It can be equipped with flanges suitable for all pressure levels.
No Requirement for Gasket or Seal: They do not require gasket or seal.
Usage in Vacuum Lines: They can also be used in lines where vacuum is created thanks to the ring in their bodies.
Technical Information:
Rubber Material: EPDM HP
Reinforcement Braid: Nylon Based Elastic Thread
Flanges: St. 37 Carbon Steel
Compressive Strength: 16 bar
Temperature Resistance: -35 / +130 ºC
Product Length: 130 mm
Connection: Swivel Flange
Nominal Diameter: DN25 (1") - DN300 (12")
Areas of Use:
Pumps: Provides vibration and noise isolation in pump systems.
Engines: Supports efficient operation of engines.
Machinery: Reduces thermal and mechanical stresses in industrial machinery.
Compressors: Increases performance when used in compressor systems.
Shipyard and Ship Industry: Widely used in the maritime industry, it effectively absorbs vibration and noise.
ORFA Industrial Products Industry and Trade Inc. secures your systems and increases operational efficiency with these high-performance Marine Type Rubber Expansion Joints. Contact us for more information and to place an order.
