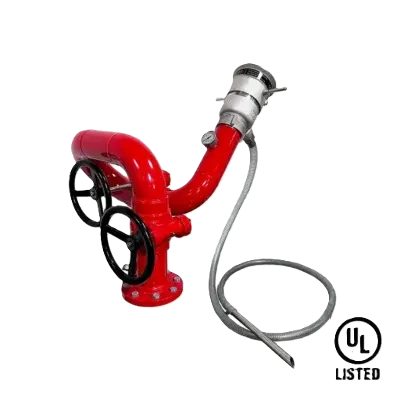

AYVAZ Monitör ve Hydro Foam Nozulu 4''

AYVAZ Monitor and Hydro Foam Nozzle 4'': High Capacity Water and Foam Response Solution

The AYVAZ Monitor and Hydro Foam Nozzle is a critical piece of firefighting equipment designed to provide high-flow, long-range, and foam-delivered firefighting in high-risk industrial areas where foam intervention is essential, such as fuel storage areas, refineries, and chemical plants. With its 4-inch (DN100) size and flow range of up to 2000 GPM, it delivers superior performance in controlling large fires.

What is Ayvaz Monitor and Hydro Foam Nozzle?

This Monitor and Hydro Foam Nozzle is part of a "Monitor" (water cannon) system installed on a fixed line. The "Hydro Foam" feature indicates that the nozzle not only delivers high-flow water but also mixes the water with foam concentrate to provide a foam-water solution for firefighting.

Monitor and Hydro Foam Nozzle Technical Specifications:

• Flow Rate Range: Offers a flow rate between 800-2000 GPM (Gallons Per Minute) for high capacity extinguishing.

• Max Working Pressure: Maximum working pressure is 175 PSI (12.1 bar) .

• Material and Coating: The body is manufactured from Carbon Steel for high strength and is coated with Red Epoxy Paint against corrosion.

• Connection Diameters:

  • Inlet Diameter: 4” It has an ANSI 150 Flanged connection.

  • Outlet Diameter: 4” BSPT Threaded (Male) connection.

• Mobility:

  • It can rotate 360º around itself.

  • It offers 45º movement downwards and 90º movement upwards.

Monitor and Hydro Foam Nozzle Usage Areas and Advantages:

• Fuel Storage Areas and Refineries: Fighting fires of flammable and combustible liquids (foam discharge).

• Industrial Facilities: Large storage tanks, chemical plants and ports.

• Advantage: Thanks to its high flow capacity (up to 2000 GPM), a single nozzle can protect a large area and provide rapid intervention with both water and foam.

• Durability: Resistant to heavy industrial and outdoor conditions with its carbon steel body and epoxy paint.
