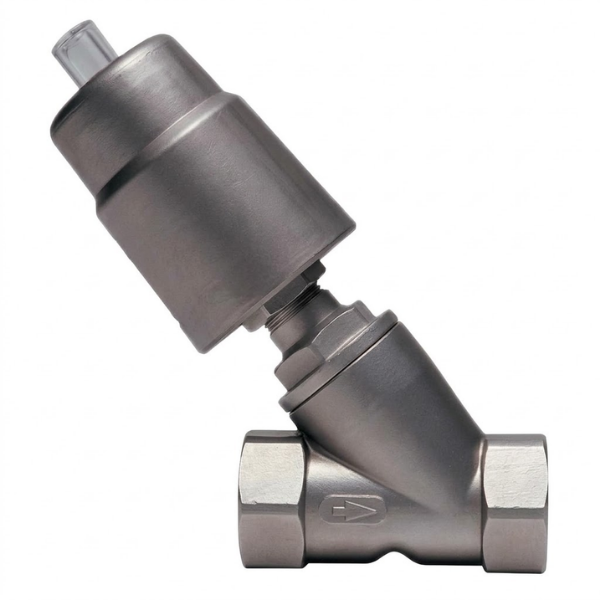

The PKV-50 Pneumatic Piston Valve, offered by ORFA Industrial Products Industry and Trade Inc. , is designed to provide reliable flow control in industrial processes. Its AISI 316 stainless steel body provides durability and corrosion resistance, demonstrating superior performance, particularly under challenging operating conditions. Its Y-shaped design and compact design provide maximum efficiency while occupying minimal space. Operating as a normally closed system, the valve provides fast and effective flow control thanks to its single-acting, air-driven piston.

Pneumatic Piston Valve Working Principle:

The PKV-50 offers energy-efficient operation thanks to its air-operated actuator. When air is supplied to the actuator, the piston moves upward, opening the valve. When the air supply is interrupted, the spring mechanism pushes the piston back, returning the valve to the closed position. This mechanism ensures reliable and long-lasting operation.

Pneumatic Piston Valve Features:

Easy to Use: Fast and practical use with its ergonomic design.

Easy Installation: Provides flexibility with its ability to be mounted in any direction.

Low Energy Consumption: Energy efficient air supply system.

Long Working Life: High quality material and solid structure.

Reliability: Durable design for harsh conditions.

Technical Specifications:

Product Code: PKV-50

Body Material: AISI 316 Stainless Steel

Connection Diameter: 2"

Connection Type: Threaded

Gasket: PTFE

Maximum Operating Temperature: 180°C

Pressure Class: PN 16

Air Supply Pressure: 3-8 bar

Application Environments:

This

Fluids

Natural gas

180°C steam

Low corrosive liquids and gases

Installation and Use:

The PKV-50 Pneumatic Piston Valve can be easily installed in the pipeline from any direction. Ensure that the arrow on the body indicates the direction of flow. A visible position of the actuator head ensures easy identification of the open or closed position.

Pneumatic Piston Valve Usage Areas:

Textile: Printing and dyeing processes.

Pharmaceuticals and Medical Equipment: Processes requiring precise flow control.

Food Processing: Hygienic and high temperature resistance.

Rubber and Chemical Industries: Organic and inorganic processes.

Washing and Disinfecting: Cleaning with high temperature and steam.

Water Management: Sewage and liquid disposal.

The PKV-50 Pneumatic Piston Valve offers an excellent solution for industrial needs with its durable construction, energy-efficient design, and versatile applications. With the assurance of ORFA Industrial , you can integrate this valve into your processes and achieve reliable and long-lasting performance.

You can download the Pneumatic Piston Valve PKV-50 brochure here

Thread Size

2''
