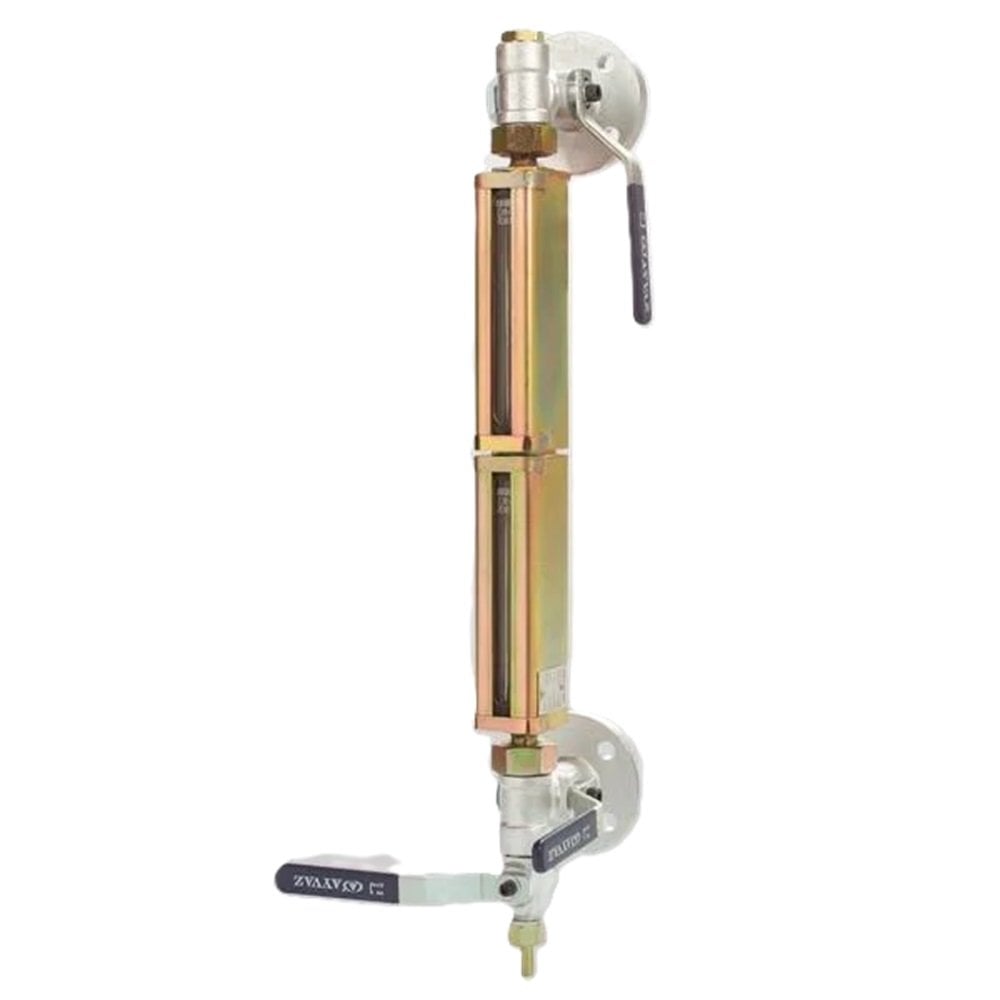

Ayvaz Reflex Glass Level Indicator RC-11
%62 Discounted Product
0 - Comment / Read Comments
1.318,97 USD
501,21 USD
Category
Brand
Stock Code
704800000201-45
Price
1.099,14 USD + VAT
* Installments starting from 94,70 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
Reflex Glass Level Indicator
ORFA Industrial Products Industry and Trade Inc. offers reliable and high-performance Reflex Glass Level Indicators for industrial applications. These indicators utilize the different refractive properties of light in liquid and gas phases to easily monitor water and vapor levels. Thanks to the reflex glass technology, liquids appear dark and vapor appears bright, allowing operators to quickly and accurately determine levels.
Level Indicator Product Features:
Valve Body: GG-25 Cast Iron
Bottom Plate: Carbon Steel
Connection: DN 20 PN 16 Flanged
Discharge Valve Body and Liquid Inlet Main Body: GG-25 Cast Iron
Max. Working Pressure: 16 bar (Optional 40 bar)
Max. Operating Temperature: 250 ºC
Level Indicator Technical Information:
The Reflex Glass Level Indicator is resistant to a maximum operating pressure of 16 bar and a temperature of 250°C. Optional models are available for operating pressures up to 40 bar when needed. The GG-25 cast iron valve body and carbon steel base ensure the longevity and durability of these indicators.
Reflex Glass Level Indicator Working Principle
Reflex Glass Level Indicators use the different refractive properties of light in liquid and gas phases to determine level. This type of indicator operates using reflex glass technology. The basic principle of this technology is that the liquid and vapor phases appear with different brightnesses in the reflex glass.
Working Principle Details:
Reflex Glass Technology: The glass used in reflex glass level indicators contains prismatic grooves on its inner surface. These grooves cause light to refract and reflect at different angles. These prismatic structures on the inner surface of the glass utilize the refractive and reflective properties of light in liquid and gas phases to determine level.
Refraction and Reflection of Light:
Liquid Phase: When light in the liquid hits the glass surface, it is absorbed and there is no reflection back. Therefore, reflex glass in the liquid phase appears dark.
Gas Phase: Light in a gas or vapor is reflected when it hits the glass surface. This reflection gives the glass a bright and clear appearance. Reflex glass in the vapor or gas phase takes on a shiny appearance.
Level Determination: These different brightness levels on the reflective glass allow operators to easily and quickly determine the liquid level. The transition between liquid and gas phases is clearly observed, enabling accurate and reliable level measurement.
Level Indicator Usage Areas:
Reflex Glass Level Indicators can be used in a wide range of applications:
Reflex Glass Level Indicators can be used in a wide range of applications:
Steam Boilers: Reliable performance under high temperatures and pressures.
Filling and Emptying Tanks: Precise monitoring of liquid level.
Fuel Containers: Safe and accurate monitoring of fuel level.
Chemical Industry: Reliable level control in various chemical processes.
Oil and Petroleum Product Tanks: Precise and safe monitoring of oil and its derivatives levels.
Open or Closed Containers: Monitoring liquid and gas levels in different industrial containers.
ORFA Industrial Products Industry and Trade Inc. aims to increase the efficiency of industrial processes by providing its customers with high-quality and reliable level indicators. For more information and to place your order, please contact us.
