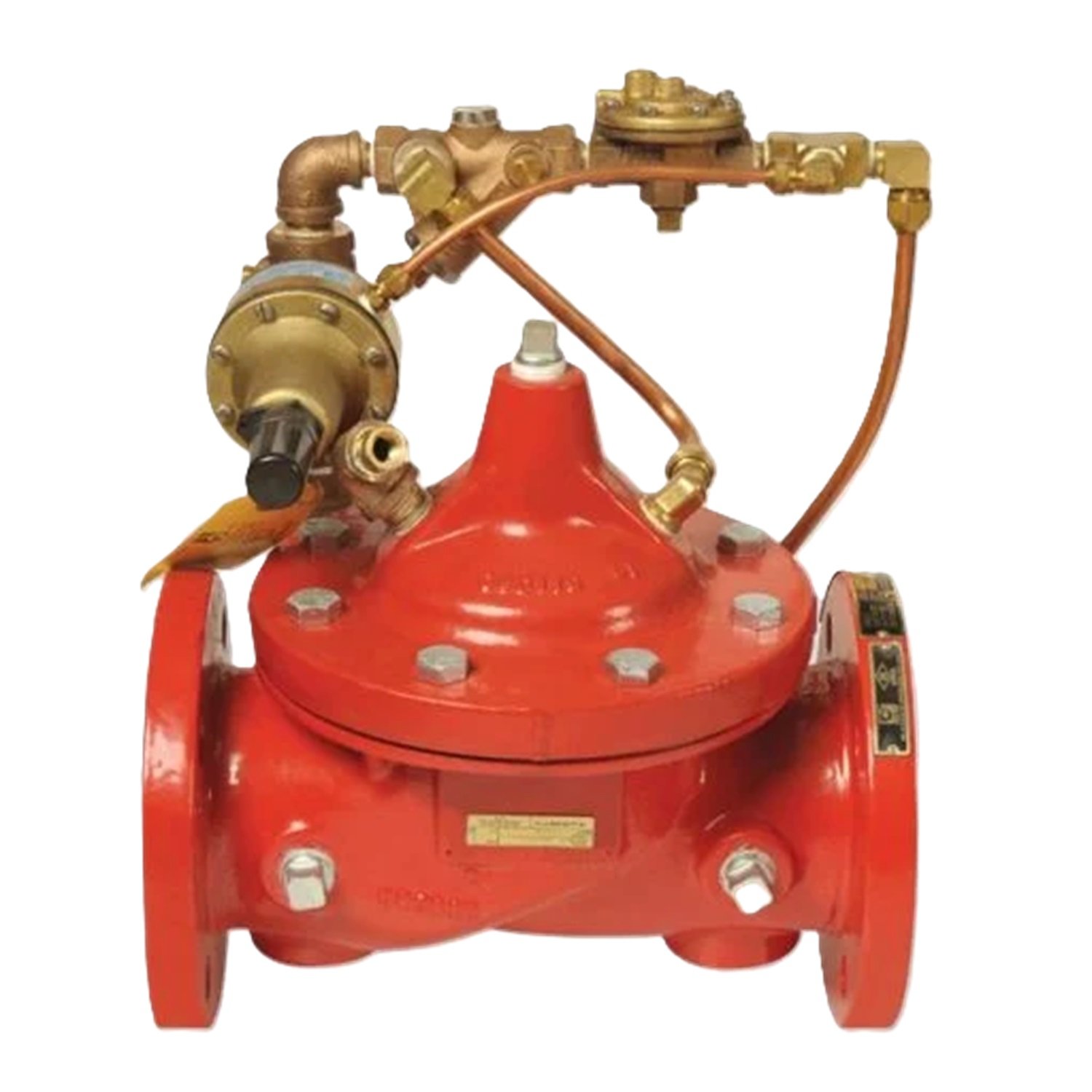

Relief Pressure Relief Valve
The relief valve, one of the most critical components of fire suppression systems, is a high-quality product offered by ORFA Industrial Products Industry and Trade Inc. These valves play a critical role, particularly in high-pressure fire pumps. They prevent damage to system equipment by ensuring that excess pressure generated by diesel or electric fire pumps is safely directed to the water tank or drainage system.
Technical Specifications:
Inlet-Outlet Pressure Settings:
Inlet Pressure: 175psi to 300psi
Output Setting Pressure: Adjustable from 30psi to 165psi
Maximum Working Pressure : 250 PSI (17.24 bar)
Maximum Operating Temperature: 80 ºC
Setting Range: 20 PSI to 200 PSI (1.4-14 bar)
Body Material: Ductile Iron conforming to ASTM A 536 standards
Connection Type: Flanged
Material Structure:
Body and Cover: Ductile Cast Iron
Valve Assembly: Bronze surface, Teflon coated stainless steel trim
Pilot Control Valve and System: Bronze ASTM B62 and Stainless Steel
Approvals:
FM Approved
UL Listed
ULc Listed
Working Principle:
Pressure Adjustment and Detection:
The relief valve is equipped with a pilot control mechanism. This control system consists of a pilot valve connected to the main body and a pressure adjustment mechanism. The valve continuously monitors the system pressure and makes adjustments based on the set outlet pressure. For example, if the valve is set for an outlet pressure of 165 psi and the system pressure exceeds this value, the pilot valve will activate.
Relieving Excess Pressure:
When the pilot valve detects that the system pressure has risen above the set output value, it triggers the main valve to open. This opens the main valve, safely diverting the excess pressure to the water tank or an external drain. This process continues until the pressure returns to normal.
Closing:
When the pressure drops to the set safe level, the pilot valve closes and the main valve automatically closes, re-stabilizing the system pressure. This process ensures that the pressure balance within the system is maintained and reduces the load on the equipment.
Application Areas:
The Pressure Relief Valve is suitable for use in all fire installations equipped with diesel-powered or high-pressure electric motor fire pumps. It is particularly suitable for buildings, industrial facilities, and public areas where fire safety is paramount.
Product Advantages:
This product helps keep high pressure under control, allowing fire pumps to operate more efficiently and safely. It also contributes to system longevity and saves maintenance costs by preventing potential failures.
