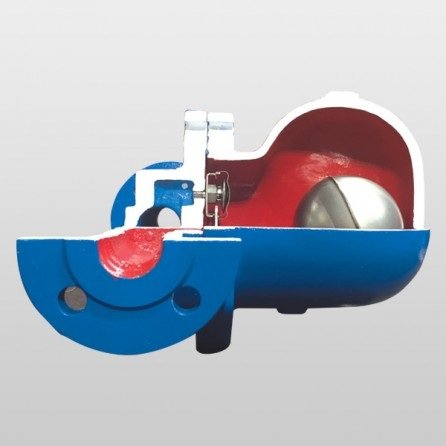

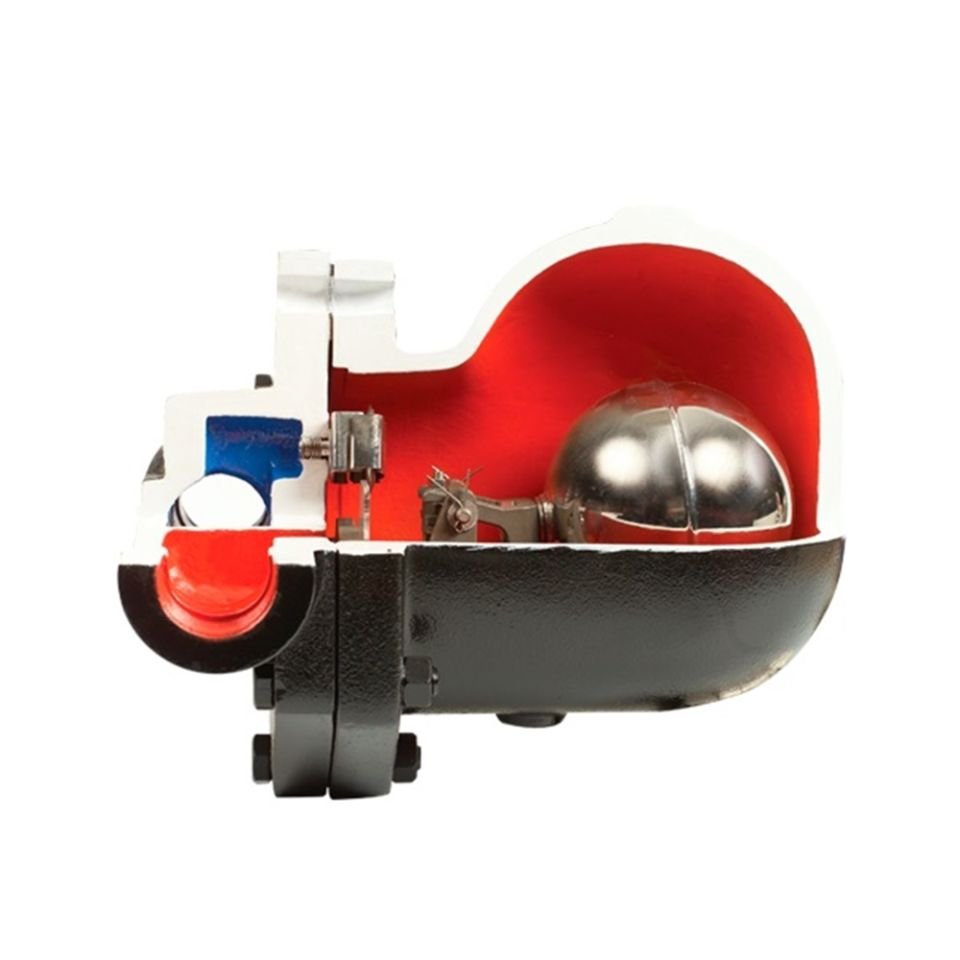

AYVAZ SK-50 Float Trap Flanged DN32 PN16
%62 Discounted Product
0 - Comment / Read Comments
2.498,75 EUR
949,53 EUR
Category
Brand
Stock Code
703200202010
Warranty Period
24 Month
Price
2.082,29 EUR + VAT
* Installments starting from 179,40 EUR!
Add to Cart
Ayvaz Float Trap with Flange Thermostatic Air Release SK-
ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş ., offers for sale Ayvaz brand's superior quality SK-50 Float Traps. These Float Traps offer an innovative solution that performs continuous discharge that varies with the amount of condensate at the steam saturation temperature. This product, which is not affected by sudden and wide pressure changes, is ideal for systems where condensate discharge must be rapid and condensate accumulation in the pipeline is undesirable. An excellent choice for automatic temperature controlled systems, SK-50 Float Trap stands out with its performance and reliability.
Float Trap Product Features:
Body Material: DN25: GGG 40.3 Ductile Iron - DN32-40-50: GG 25 Gray Cast Iron
Internal Parts: Complete AISI304 Stainless Steel
Connections: Flanged
Nominal Diameter: DN
Pressure Ratings: Maximum 16 bar
Operating Temperature: Maximum 250 ºC
ΔP: .5 / 10 / 14 bar
Float Trap Technical Information:
SK-50 Float Traps, in addition to the float that performs the discharge function, also performs air discharge with the thermostatic capsule inside the body. This feature prevents water hammer caused by air accumulation in the pipeline. If the float loses its function for any reason, the thermostatic capsule activates and continues the condensate discharge and prevents blockage in the system.
SK-50 Float Trap Thermostatic Air Release Working Principle
Float Mechanism:
SK-50 Float Steam Trap continuously discharges condensate thanks to the float mechanism inside. When condensate (condensed steam) enters the steam trap, the buoyancy of the float increases and the float moves upward.
When the float moves up, the drain valve opens and condensate is discharged. As the condensate is discharged, the buoyancy of the float decreases and the float moves downwards again, closing the discharge valve. This process is repeated continuously depending on the amount of condensate.
Thermostatic Air Vent:
SK-50 The thermostatic capsule inside the Float Trap evacuates the air in the pipeline. When the steam system is first started or restarted after stopping, air accumulates in the pipeline. The thermostatic capsule works by sensing temperature differences. The air in the pipeline is at a lower temperature than the temperature of the steam. The thermostatic capsule detects and evacuates air accumulation, preventing water hammer and inefficiency. When the float loses its function for any reason, the thermostatic capsule comes into play and continues the condensate discharge and prevents the system from clogging.
Preventing Ram Strikes:
Air evacuation ensures that air accumulated in the pipeline is quickly removed. This prevents water hammer (vibrations and noises caused by sudden pressure changes) and allows the system to operate more efficiently.
SK-50 Float Trap with Thermostatic Air Discharge provides a continuous and effective condensate discharge thanks to the coordinated operation of the float and thermostatic capsule. This device discharges condensate without being affected by sudden and wide pressure changes and prevents air accumulation in the pipeline. It provides an ideal solution in automatic temperature controlled systems and applications where condensate accumulation is undesirable.
Float Trap Usage Areas:
Automatic temperature controlled systems
Systems where condensate discharge must be fast
Applications where condensate accumulation in the pipeline is undesirable
Reliable evacuation systems that are not affected by pressure and temperature changes
ORFA Ayvaz SK-50 Float Traps, offered for sale by Endüstri Mamüller Sanayi ve Ticaret A.Ş. , is a product that you can use safely in your industrial applications with its high quality material structure and superior performance features. It helps you maintain your processes uninterruptedly and efficiently with its reliable evacuation and air extraction system.
