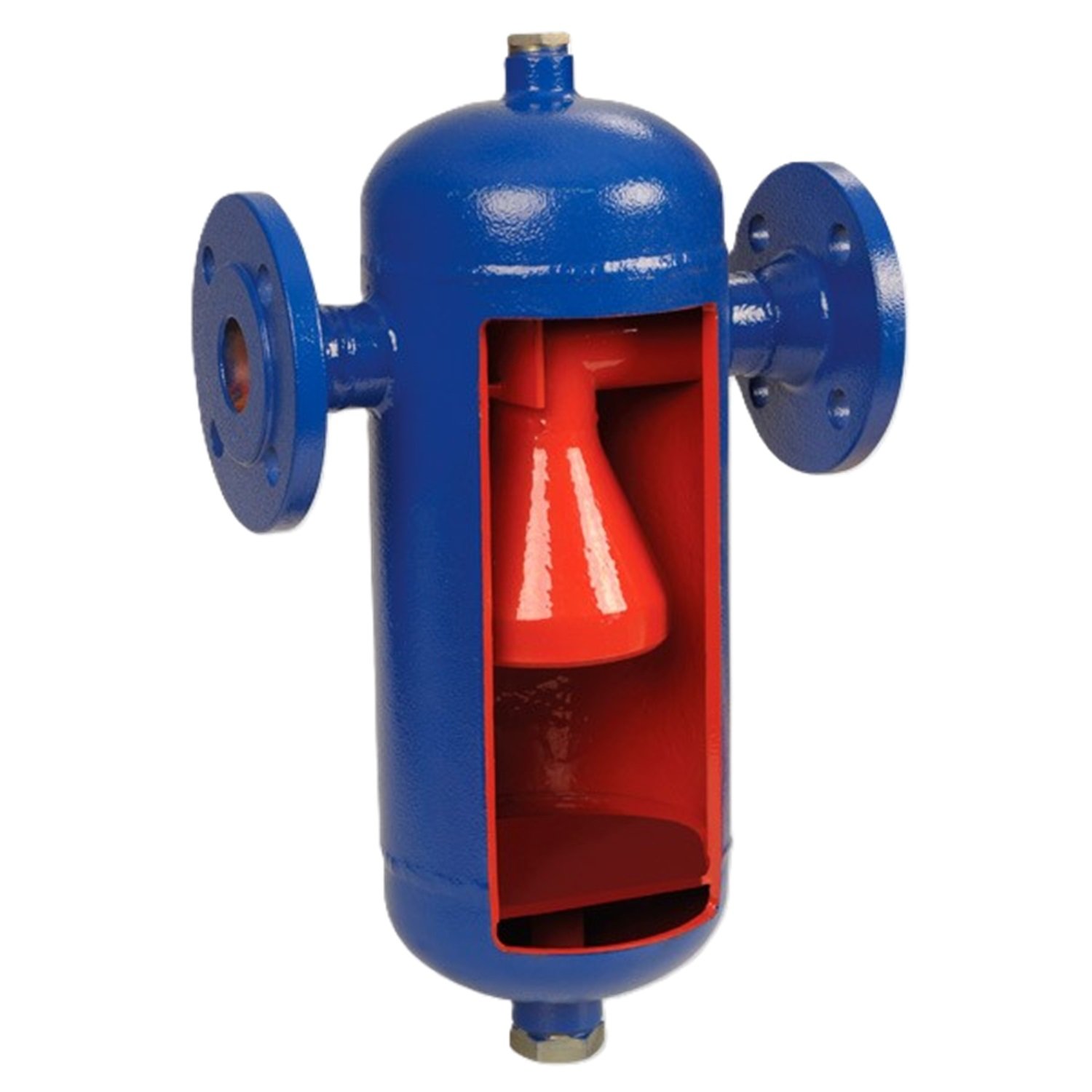

Ayvaz Steam Separator SPR-25
0 - Comment / Read Comments
Steam Separator
ORFA Industrial Products Industry and Trade Inc. offers its customers the opportunity to obtain dry and clean steam with its high-efficiency and high-performance Steam Separators. This device, which separates and filters the liquid generated in steam installations using centrifugal force and discharges it through a steam trap, is an ideal solution for increasing efficiency and reducing maintenance costs in process systems. The AYVAZ SPR-25 Steam Separator is designed for highly efficient operation in lines operating with variable steam velocities and pressures up to 25 bar. Furthermore, with custom stainless steel production options, it provides a perfect fit for process systems.
Steam Separator Working Principle:
Steam Separator Working Principle:
As soon as the water droplets within the steam enter the separator, they accelerate through centrifugal motion around the conical cyclone, and liquid particles, droplets, and sediment within the steam are ejected toward the wall, separating them. The dry, clean steam, descending into the large internal volume, is directed to the conical collector cyclone and optionally passes through a filter to continue its path through the installation. Condensate and sediment, however, descend into the collection chamber beneath the stainless steel plate and cannot return to the steam path. The condensate passes through the filter and is discharged through a steam trap.
Steam Separator Usage Areas:
In the Steam Boiler Outlet Line: Prevents chemicals, corrosive liquids, foreign substances and water droplets in the feed water from migrating into the steam lines.
Before Control Devices: Increases the efficiency and extends the life of equipment such as pressure reducers, control valves and steam meters.
At System (Process etc.) Entries:
- Steam turbine inlets
- Heating coils and dryers
- Kitchen appliances, washing machines
- Multi-stage presses (Rubber and wood presses)
- Autoclaves, sterilizers
- Dyeing and finishing machines
- Bakeries
- Tea and tobacco businesses
Steam Separator Technical Specifications:
Body: Carbon Steel (Optional Stainless Steel)
Interior: Stainless Steel
Connection: Flanged
Max. Operating Temperature: 250 ºC
Pressure Class: PN25
Connection Type: Vertical / Horizontal
Steam Separator Advantages:
It increases productivity and production quality.
Reduces maintenance costs and downtime.
Extends the life of facility and control valves in steam systems.
It eliminates water hammer damage and the maintenance costs that may result from it.
Its simple and robust design requires no maintenance.
When used before flow meters, it provides clear measurement of steam.
Since there is no need for an electrical connection, it can be easily installed in the system.
Ayvaz separators are the simplest way to separate condensate.
It is used in applications that separate the liquid load in a way that does not exceed 40% by weight of the maximum flow capacity of the steam.
ORFA Industrial Products Industry and Trade Inc. continues to offer the best solutions to customers seeking efficiency and reliability in their steam systems. Improve your system's performance and reduce maintenance costs with Steam Separators.
You can download the SPR-B Steam Separator Condensate Separator brochure here
ORFA Industrial Products Industry and Trade Inc. continues to offer the best solutions to customers seeking efficiency and reliability in their steam systems. Improve your system's performance and reduce maintenance costs with Steam Separators.
You can download the SPR-B Steam Separator Condensate Separator brochure here
| Diameter-Dn | : | DN 15, DN 20, DN 25, DN 32, DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200 |
