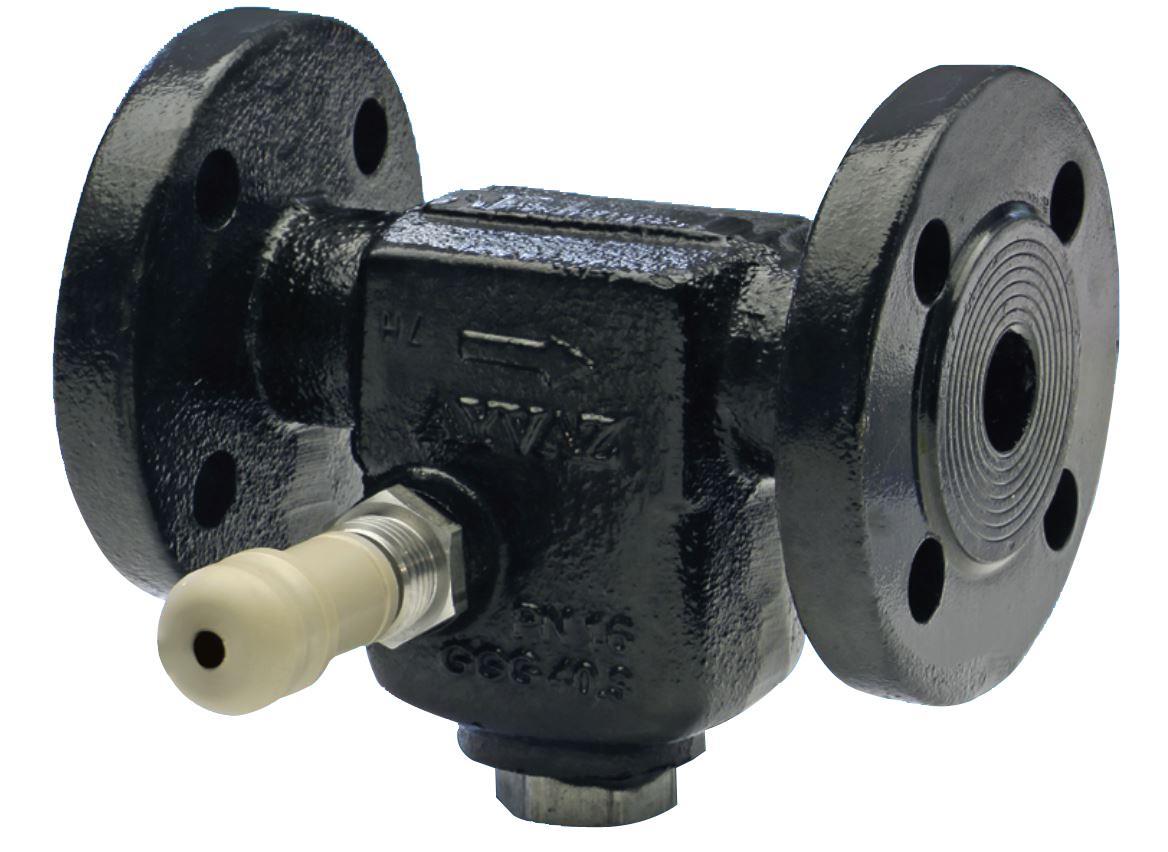

AYVAZ T-KON 20 Steam Trap Control Body DN20
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
AYVAZ T-KON 20 Steam Trap Control Body DN20: Easy and Reliable Leak Detection in Steam Systems
In steam systems, leaving steam traps open wastes energy, while keeping them closed reduces system efficiency. The Ayvaz T-KON 20 Steam Trap Control Body is an innovative product designed to prevent these problems by detecting steam leaks from an operating steam trap .
This Steam Trap Control Body is used on medium sized steam lines with a nominal diameter of DN20 (3/4'') and provides continuous control of steam traps.
What is the Ayvaz T-KON 20 Steam Trap Control Body and How Does It Work?
The Ayvaz steam trap control body is a sensor body installed immediately before the steam trap. It is designed for use only in saturated steam applications. The body contains a sensor that distinguishes the conductivity difference between steam and condensate.
Operating Principle: A handheld control device (sold separately) that can be connected to this body emits a "red" light signal when steam is passing through and a "green" light signal when condensate is passing through. This allows the operator to easily determine whether the trap is leaking.
Energy Saving: Prevents energy waste caused by steam escaping from the steam trap by detecting it early.
Features and Advantages of T-KON 20 Steam Trap Control Body:
Reliable Material: The body and cover are made of GGG 40.3 Ductile Iron , which is resistant to high pressure and temperature.
Wide Operating Range: It can operate safely up to a maximum pressure of 14 bar and a temperature of 240 ºC .
Easy Maintenance Support: Provides instant feedback to the operator, supporting timely maintenance of steam traps.
Area of Use: Used in all kinds of steam lines, before steam traps.
| Nominal Diameter (DN) | : | DN 20 |
