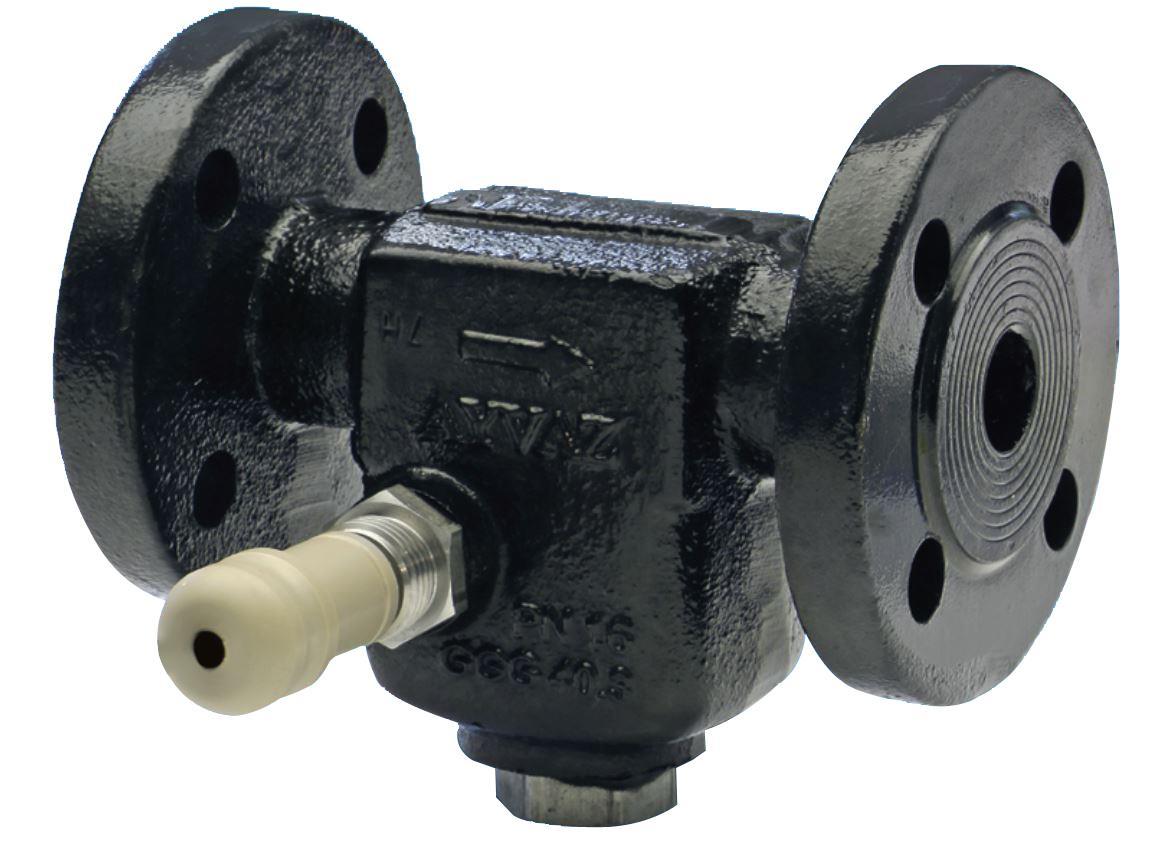

AYVAZ T-KON 20 Steam Trap Control Body DN25
AYVAZ T-KON 20 Steam Trap Control Body DN25: Expert Solution for Steam Leak Detection
The efficient operation of steam traps in steam systems is critical for energy savings and system integrity. Steam escaping due to trap malfunction causes significant energy waste and, unless other measures are taken, is directly discharged through an open condensate line. The Ayvaz T-KON 20 Steam Trap Control Body is designed to prevent this leak and facilitate timely steam trap maintenance.
This body is used in medium-sized steam lines with a nominal diameter of DN25 (1'') and allows continuous control of steam traps.
Steam Trap Control Body Definition and Working Principle
The Ayvaz T-KON 20 Steam Trap Control Body is designed to detect steam leaks in an operating steam trap. It is designed for use only in saturated steam applications. The body includes a sensor that distinguishes the conductivity difference between steam and condensate.
Visual Signal: A handheld control device (sold separately) that can be connected to this body emits a "green" light signal when condensate is passing through and a "red" light signal when steam is passing through. This allows the operator to easily determine if there is a leak in the trap.
Energy Saving: Prevents energy waste caused by steam escaping from the steam trap by detecting it early.
AYVAZ T-KON 20 Steam Trap Control Body Technical Specifications
Nominal Diameter: DN25 (1'')
Body and Cover Material: GGG 40.3 Ductile Iron
Max. Working Pressure: Up to 14 bar
Max. Operating Temperature: 240 ºC
Connection Type: Threaded, flanged
Application Area: Used in all kinds of steam lines before steam traps.
| Diameter-Dn | : | DN 25 |
