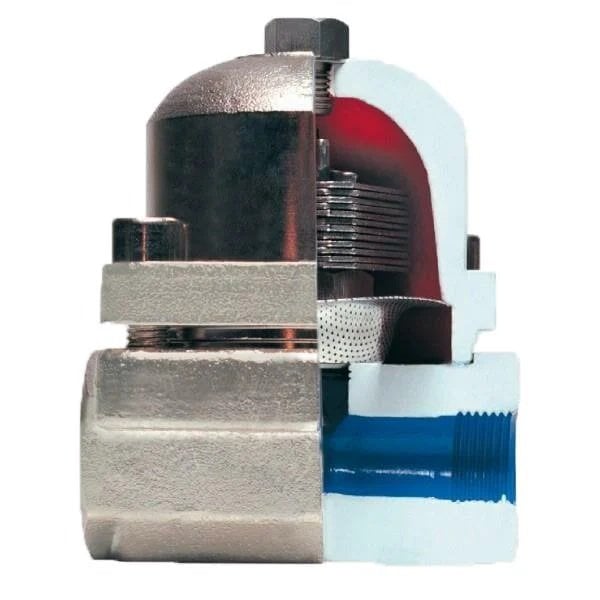

AYVAZ TK-1 Bimetallic Steam Trap PN40 2''
AYVAZ TK-1 Bimetallic Steam Trap PN40 2''
Maximum Efficiency in Steam Systems with ORFA Industrial Assurance
One of the most important components of industrial steam systems, the bimetallic steam trap, directly increases system efficiency by automatically discharging condensate in heating, sterilization, and process applications. The Ayvaz TK-1 model, with its advanced bimetallic steam trap technology, offers a reliable and durable solution operating based on precise temperature control. With a 2'' connection diameter and PN40 pressure rating, this bimetallic steam trap delivers flawless performance in low and medium pressure steam lines, using CC 22.8 forged steel for the body to provide maximum durability and corrosion resistance. The TK-1 bimetallic steam trap, available from ORFA Industrial stock, operates precisely even at high temperatures of 250°C thanks to the stainless steel bimetallic plates in its internal mechanism. This bimetallic steam trap, which provides rapid air and cold condensate discharge during initial system startup, minimizes energy waste, significantly reducing operating costs. Widely used in food processing, textile manufacturing, chemical, and pharmaceutical industries, the professional bimetallic steam trap exhibits outstanding performance at coil and heat exchanger outlets. With its compact design, the Ayvaz bimetallic steam trap can be easily installed even in confined spaces, offering low maintenance requirements and long service life. Each bimetallic steam trap unit is manufactured for safe use in standard steam lines with a maximum working pressure of 40 bar and operating temperature of 250°C. A quality bimetallic steam trap you choose for drying systems and boiler outlets will save energy and noticeably reduce your annual operating expenses. Ensure reliable condensate control and maximum efficiency in your steam systems with the Ayvaz TK-1 bimetallic steam trap.
Bimetallic Steam Trap Technical Specification Details
Key Advantages of Bimetallic Steam Trap
- Precise Control: Fully automatic and reliable condensate management with bimetallic element.
- High Durability: Forged steel body and stainless steel internal mechanism for safe operation up to 250°C.
- Energy Saving: Increases system efficiency and significantly reduces operating costs.
- Compact Design: With 2'' nominal diameter, easily installable even in confined spaces.
Application Fields of Bimetallic Steam Trap
- Use of bimetallic steam trap in food processing and sterilization systems.
- Integration into process steam lines in textile and chemical industries.
- Automatic condensate discharge at heating coil and heat exchanger outlets.
- Energy saving applications with small and medium capacity boiler systems.
Maximize the safety and efficiency of your steam systems with Ayvaz TK-1 Bimetallic Steam Trap.
| Thread Size | : | 2'' |
