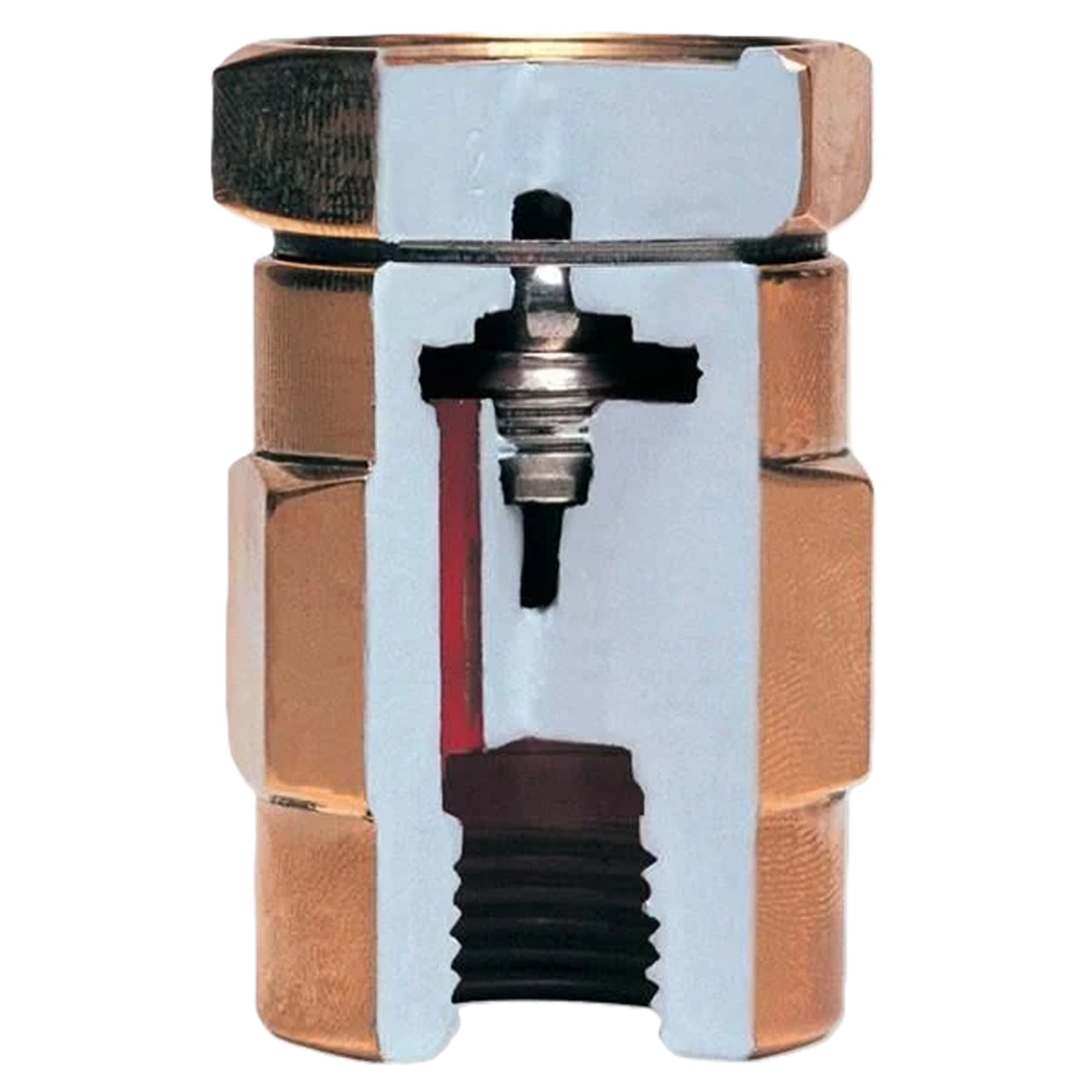

Ayvaz VK-70 Vacuum Breaker 1/2”

Ayvaz VK-70 Vacuum Breaker 1/2”

Ayvaz VK-70 Vacuum Breaker

Pipeline and Equipment Protection Solutions

High pressure can occur during the usage of steam installations and devices. However, when the process stops, the remaining steam condenses due to cooling. This volume shrinkage creates an unwanted vacuum inside the pipeline. Ayvaz VK-70 Vacuum Breaker functions like a check valve to prevent damage by pulling air inside as soon as a vacuum starts forming. When steam is re-supplied, this professional Vacuum Breaker closes automatically as the pressure rises. Designed for general-purpose steam or condensate lines, it is a small-sized and reliable Vacuum Breaker option. Manufactured with a durable brass body and robust stainless steel internals, this high-quality Vacuum Breaker must be installed vertically with the connection at the bottom. Discover the best Vacuum Breaker price options and choose the right Vacuum Breaker for your system. This premium Vacuum Breaker model guarantees high efficiency. Our advanced Vacuum Breaker design offers easy installation. Protect your plant with this safe Vacuum Breaker unit. Each Vacuum Breaker is fully tested for quality. Order your industrial Vacuum Breaker now. Prevent pipeline collapse with Vacuum Breaker implementations. This reliable Vacuum Breaker lowers your maintenance costs effectively. Secure your steam network with our premium Vacuum Breaker technology today.

Technical Specifications

Product Type: VK-70 Brass Vacuum Breaker

Nominal Diameter: DN15 (1/2”) Threaded Connection

Maximum Pressure: Up to 16 bar

Min. ΔP Opening Pressure: 0.17 bar

Max. Working Temperature: 260 ºC

Installation Position: Vertical position with bottom connection

Material Structure and Parts List

No	Part Name	Material Specification
1	Cover	MS 58 Brass
2	Gasket	AISI 304 Stainless Steel
3	Ball	AISI 440 C Stainless Steel
4	Seat	AISI 304 Stainless Steel
5	Body	MS 58 Brass

Applications

Serpentine Systems / Coil Systems
Heat Exchangers and Boilers
End of Lines in Steam Systems
Steam Manifolds and Condensate Lines

Key Advantages

Robust Internals: High sealing capability with AISI 440C stainless steel ball structure.
Precise Protection: Low opening pressure at 0.17 bar prevents sudden vacuum formation.
Compact Design: High performance in narrow installation areas with small dimensions.

Ayvaz VK-70 model brings reliable engineering standards in fluid control technologies to your project. Offered with the assurance of ORFA Industrial, this safety equipment makes a difference with its precise sealing quality and durable internal parts. Choosing the Ayvaz series is always the most rational choice to maximize your operational safety, ensure long-term durability, and achieve low failure costs.
