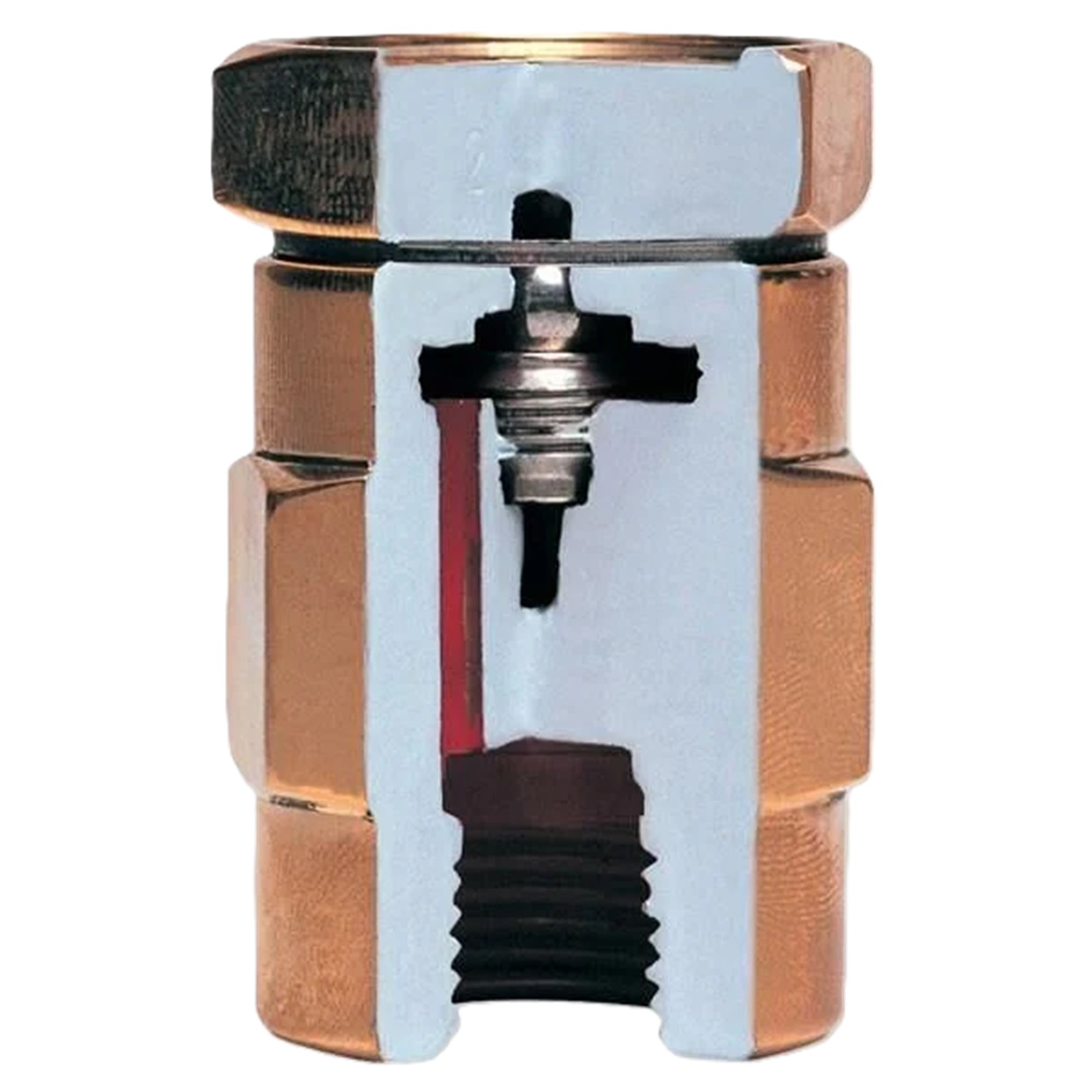

Ayvaz VK-70 Vacuum Crusher 1/2”
0 - Comment / Read Comments
Ayvaz VK-70 Vacuum Crusher 1/2”
The VK-70 Vacuum Breaker is designed to prevent vacuum buildup in steam installations and steam appliances. This device prevents the vacuum created within the line by the cooling and condensation of steam, ensuring safe and efficient system operation. Sold by ORFA Industrial Products Industry and Trade Inc. , the VK-70 Vacuum Breaker is ideal for general-purpose applications at the end of lines in steam systems, in serpentine systems, in heat exchangers, and in steam headers.
Product Features
Body and Cover: Brass
Internal parts: AISI 304 Stainless Steel
Connections: Threaded
Nominal Diameter: DN15 (1/2”)
Maximum Pressure: 16 bar
Minimum ΔP Opening Pressure: 0.17 bar
Operating Temperature: Maximum 260 ºC
Technical Information
The VK-70 works like a check valve to prevent vacuum buildup in steam installations. When a vacuum develops, it admits air, preventing this and ensuring proper system operation. It closes when steam is reintroduced and pressure begins to increase. The VK-70 Vacuum Breaker should be installed vertically, with the system connection at the bottom.
VK-70 Working Principle
Vacuum Formation:
In steam systems, condensation occurs when the steam is no longer used or the system cools. The condensed steam turns into a liquid, and its volume decreases during this transformation. This volume decrease creates negative pressure (vacuum) within the system.
Vacuum Breaker Activation:
The VK-70 Vacuum Breaker detects this vacuum and begins operating like a check valve. When a vacuum begins to form, the valve inside the device opens, allowing air in from outside. This air intake balances the negative pressure within the system, preventing a vacuum.
Steam Re-introduction:
When steam is reintroduced into the system and pressure begins to increase, the vacuum breaker automatically closes. This returns the pressure in the system to normal levels and the device becomes inactive again.
Uninterrupted Operation:
The VK-70 Vacuum Breaker requires no intervention during normal system operation. It only activates and prevents vacuum buildup when it is detected. This ensures continuous and efficient system operation.
Technical Details
Automatic Operation: The VK-70 automatically activates when vacuum is generated, preventing it from leaking. It automatically shuts off when the pressure returns to normal.
Vertical Mounting: The device should be mounted vertically with the system connectors at the bottom. This mounting style ensures optimal device performance.
Reliable Materials: The vacuum breaker is made of MS58 brass body and cover and AISI 304 stainless steel internal parts. This ensures the durability and longevity of the device.
Areas of Use
Serpentine Systems: Vacuum breaker prevents the vacuum caused by condensing steam in serpentine systems and ensures efficient operation of the system.
Heat exchangers: It supports the safe operation of devices by preventing the vacuum created by the condensation of steam in heat exchangers.
Line Ends in Steam Systems: Used at the ends of steam lines to prevent vacuum that may occur due to condensation.
Steam Collectors: Increases the performance of the system by preventing vacuum formation in the steam collectors.
ORFA Industrial Products Industry and Trade Inc. ensures the smooth operation of steam systems with its high-quality and reliable vacuum breakers. The VK-70 Vacuum Breaker is an indispensable part of steam installations, thanks to its durable construction and effective performance.
For more information and orders, you can contact ORFA Industrial Products Industry and Trade Inc.
| Tooth Measurement | : | 1/2'' |
