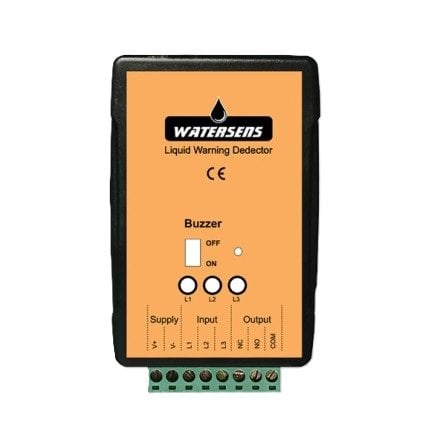

Water Alarm Detector
ORFA Industrial Products Industry and Trade Inc. offers a Water Alarm Detector designed to detect flooding early in homes, offices, and industrial areas, preventing potential damage. This user-friendly and affordable device alerts users in the event of flooding and can connect to automated systems to stop water leaks.
Product Features
Long Battery Life: The device is powered by a 9V alkaline battery, which has a standby life of two years. In alarm mode, the battery lasts for a maximum of 7 hours.
Easy Installation: The sensor is designed to be easily mounted on the ground.
Alarm and LED Warnings: When flooding is detected, the device's LED light turns on and the siren sounds.
NO/NC Contact Output: The device can stop water leakage by connecting to solenoid valves or alarm panels.
Energy Saving: No energy consumption except during alarm conditions, making battery replacement unnecessary.
Various Application Areas: Suitable for use in many areas such as operation and computer rooms, generator and compressor rooms, bathrooms and kitchens, fire alarm systems, air conditioning rooms and warehouses.
Technical Information
Power Supply: 24V DC
Output: 1A / 125V AC NO / NC Relay + Sensor
Display: 3 Red LEDs
Electrical Connection: 3x0.22 mm² Cable
Supply Voltage: 9V Alkaline or 24V DC
Maximum Operating Temperature: 85 ºC
Maximum Working Pressure: 20 bar
Protection Class: IP 68
Minimum Conductivity: 100 µSiemens/cm
Instructions for Use
Installation: Remove the device from its box. Remove the battery from the plastic wrap and open the back cover of the device.
Sensor Connection: Connect the sensor cable to the appropriate socket on the device.
Check: Check the sensor tip by touching it to a damp cloth. The alarm LED should light up and the siren should sound (when the lower button is in the ON position). Turning the button to the OFF position silences the siren, but the LED remains lit. The LED turns off when the probe is removed from the moist environment. Leave the button in the ON position.
Mounting: Mount the sensor to the floor using the adhesive on the back.
Relay Output Usage: You can connect it to your alarm panel, solenoid valve or similar control system.
Battery Status: Since the device does not draw power except when in alarm mode, there is no need to replace the battery. However, the battery has a two-year standby life and must be replaced by the user if it remains in alarm for an extended period.
Application Areas
Operations and Computer Rooms
Generator and Compressor Rooms
Bathrooms and Kitchens
Fire Alarm Systems
Air Conditioning Rooms
Warehouses
With the Water Alarm Detector offered by ORFA Industrial Products Industry and Trade Inc., you can protect your safety and investments by detecting floods at an early stage. The device is easy to install and use, and its affordable price is also noteworthy. For more information and to purchase, please visit our website.
