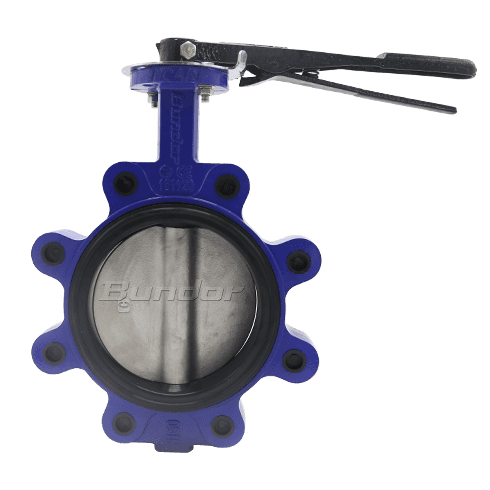

Lug-type butterfly valves are one of the most reliable solutions for flow control in industrial systems. ORFA Industrial Products offers high-quality and durable lug-type butterfly valves to its valued customers. These valves are particularly preferred in applications requiring high performance and long-lasting operation.

The closing element in butterfly valves is a disc that rotates around a shaft positioned vertically. When assembled, it rotates around its own axis, creating a disc that opens or closes the entire pipe section. Sealing is achieved between the metal flap and the elastic or plastic sealing elements lining the body. The sealing element also serves as a gasket on the flange between the valve and the pipe. Advantages of this type of valve include low pressure loss, easy opening and closing, good sealing, light weight, and a small footprint.

Product Features and Advantages:

Body Material: GG-25 cast iron provides superior protection and strength at industry standards.

Valve: Manufactured from AISI 316 stainless steel, the valve does not corrode and offers maximum durability even in contact with liquids.

Shaft: AISI 420 stainless steel shaft stands out with its high torque capacity and wear resistance.

Seal: Viton Seal

Maximum Operating Temperature: Durability up to 130 ºC.

Working Pressure: PN16 between DN 25-300, PN10 between DN 350-600

Flange Pressure Class: Compatible with flanges with PN16 standard.

Areas of Use:

Heating, Ventilation and Air Conditioning Systems: Ideal for flow control in highly energy efficient systems.

Water Treatment and Distribution Systems: Used safely in water and wastewater management applications.

Mining Industry: It has a structure that does not compromise its performance even under heavy industrial conditions.

Shipbuilding and Drilling Facilities: Can be used effectively even in seawater and corrosive environments.

Food and Chemical Businesses: It is safely preferred in the food and chemical industries thanks to its materials resistant to chemical substances.

Fire Extinguishing Systems: Offers high reliability in fire safety applications.

Lug-type butterfly valves are just one of the superior-quality products offered by ORFA Industrial Products , ensuring reliability and efficiency for all your industrial installation needs. If you're looking for long-lasting and effective solutions for your installations, you can take advantage of ORFA 's extensive product range.

Body Material	:	Casting
Nominal Diameter (DN)	:	DN 100
Gasket / Seal Material	:	Teflon (PTFE)
Disc Material	:	316 Stainless Steel
