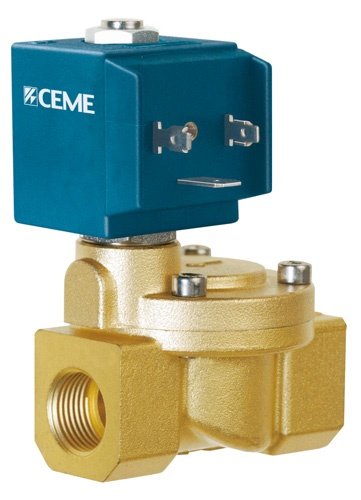

CEME 8615 3/8'' Normally Closed Solenoid Valve NBR
0 - Comment / Read Comments
CEME 8615 3/8'' Normally Closed Solenoid Valve NBR With Diaphragm – Powerful and Reliable Flow Control
4 ORFA General Purpose Solenoid Valve, which we offer as Endüstri Mamüller Sanayi ve Ticaret A.Ş
, regulates liquid and gas flow with electricity. It is a product that controls energy and can be used safely in modern industrial systems. Designed to control fluids such as water, air, oil or gas, these valves stand out with their high performance and durability.
8
5 The coil, activated by the effect of electric current, activates the mechanical part of the valve and opens or closes the flow. It is used in many different areas, especially in automation and industrial applications, such as water treatment, HVAC (heating, ventilation, air conditioning) systems and pneumatic control mechanisms. Thanks to its durable structure and reliable performance, it helps to increase the efficiency of businesses.
8 5
2 Solenoid Valve Technical Specifications 4
Type:
Pilot Operated, 2/2 Way, Normally Closed (NK) 5
Pilot Operated, 2/2 Way, Normally Closed (NK) 5
Series
: 8615 5
7 Pressure Range:
0.3-10 Bar
Connection Dimensions: 3/8''
Gasket Material:
NBR 5
7 Internal Parts:
Stainless Steel
Material: Pirinç
5 7
Application Fluids:
Water, Air, Light Oils
Fluid Temperature: Maximum 90°C
Ambient Temperature: Maximum 80°C
Electrical Connection: 6.3 x 0.8 quick connect terminal - UNI ISO 6952
Insulation Class
: H
Coil Voltage:
100-120 VAC 60Hz
Coil Power: 22 VA
Mounting Position:
Can be installed in any position (Upside down) assembly not recommended)
