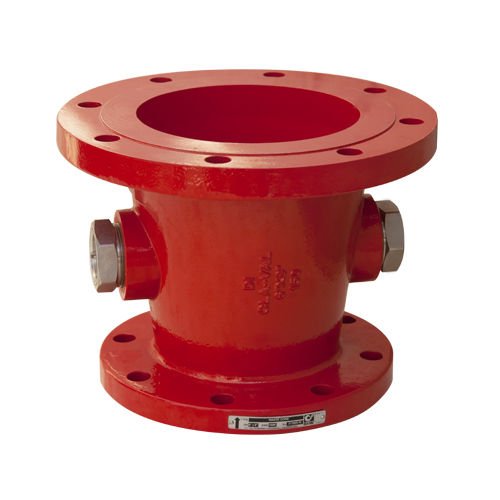

Cla-Val Waste Cone 3'' X 5''
Cla-Val Waste Cone 3'' X 5'': Safe Evacuation in Fire and Industrial Systems
The Cla-Val Waste Cone is a critical system component designed to safely and controlledly discharge water from fire pump pressure relief valves, particularly in fire protection systems. This specialized waste cone is engineered to withstand high pressure and temperature conditions.
What is a Waste Cone and What Does It Do?
A waste cone is a funnel-shaped piece installed at the outlet of a fire pump pressure relief valve, directing the discharge water into the drain line. Its primary purpose is to create a visible air gap to prevent the discharge water from flowing back into the system (siphoning).
Measurement Meaning (3'' X 5''): These dimensions generally indicate the inlet and outlet diameters of the cone.
NFPA 20 Compliance: Cla-Val Waste Cone is manufactured in accordance with the requirements of NFPA 20, the most basic standard for the installation of fire pumps.
Cla-Val Waste Cone Technical Specifications and Advantages
Material and Durability: The body is made of Cast Iron . This provides the product with high mechanical strength.
Pressure and Temperature: Resistant to 250 PSI (17.24 bar) working pressure and 80 ºC working temperature.
Connection Type: ANSI 150 Flanged connection provides easy and reliable installation.
System Compatibility: Designed for use with UL/FM approved fire pump pressure relief valves.
Versatile Application: Can be used for land and sea applications.
Areas of Use:
Fire Protection Systems: Safe discharge of water in fire pump test and discharge lines.
Marine Applications: Wastewater management on ships and other marine vessels.
Industrial Facilities: Safe transportation of wastewater generated in factories and production facilities.
Infrastructure and Construction: Wastewater management in urban infrastructure and construction projects.
