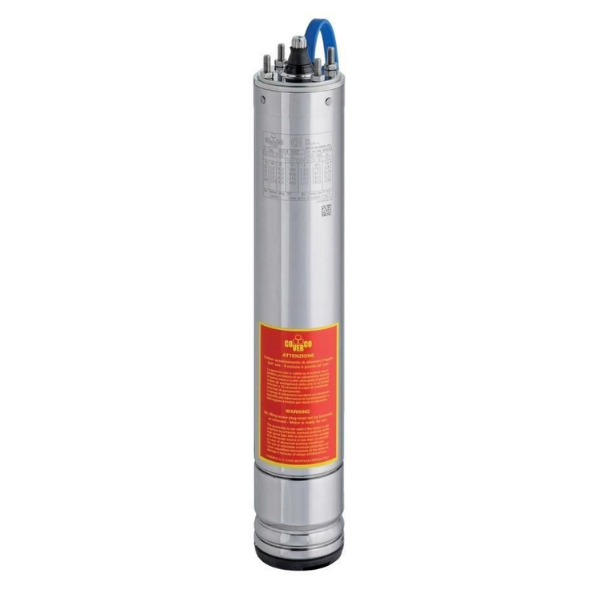

Submersible Pump Motors from ORFA Industrial Products Industry and Trade Inc. offer the most reliable and high-performance solutions for water supply. Operating underground, these electric motors enable efficient pumping of water from wells, reservoirs, and other water sources. Capable of operating underwater, these motors stand out for their high efficiency and durable construction.

Thanks to their durable cast iron upper housing and non-toxic electrical oil-filled structure, the motors in this series operate without loss of efficiency, even during extended periods of use. The motor's oil-cooled design maintains optimum temperature control and prevents overheating. Its rewindable design minimizes maintenance costs, reducing the total cost of ownership. Additionally, a rubber membrane located at the bottom of the motor ensures pressure equalization, maintaining performance even under challenging operating conditions. Each product undergoes 100% quality control testing before reaching the customer, ensuring trouble-free and reliable operation.

Technical Specifications

Engine Class: 4'' Series

Voltage: 220 V Single Phase

Power: 1.5 HP (1.1 kW)

Length: 434 mm

Weight: 11.4 kg
Outer Diameter: 95 mm

Cooling Type: Oil cooled

Working Positions: Vertical and horizontal

Voltage Tolerance: ±10%

Maximum Water Temperature: 35 °C

Engine Rotation Speed: 2900 rpm

Protection Class: IP68

Winding Class: Class B

Number of Turnovers (per hour): 20

Maximum Axial Load: 2500 N

Areas of Use

Submersible pump motors are widely used in a variety of industrial and commercial applications requiring the removal of water from underground sources to the surface. They are particularly ideal for applications such as agricultural irrigation, municipal water supply, construction site water supply, and groundwater management. With their high performance and durability, these motors offer a reliable and long-lasting solution.

The Submersible Pump Motor offered with ORFA Industrial 's expertise provides a long-lasting and economical solution to our customers by providing continuous and efficient performance even under difficult operating conditions.

Thread Size

4''
