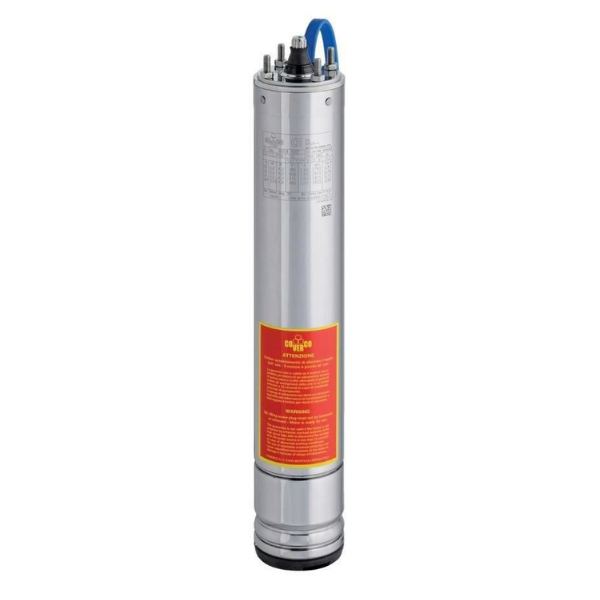

Coverco 4'' Submersible Pump Motor 3 HP 2.2 KW 220V
(0)
Brand
Stock Code
1211048058770680000800000
Stok Durumu
*Installments starting from 301,89 USD!
%25
301,89 USD
402,52 USD
Submersible Pump Motor – Ideal Solution for Water Supply with High Efficiency and Reliable Performance
Submersible Pump Motors from ORFA Industrial Products Industry and Trade Inc. offer the most reliable and high-performance solutions for water supply. Operating underground, these electric motors enable efficient pumping of water from wells, reservoirs, and other water sources. Capable of operating underwater, these motors stand out for their high efficiency and durable construction.
Thanks to their durable cast iron upper housing and non-toxic electrical oil-filled structure, the motors in this series operate without loss of efficiency, even during extended periods of use. The motor's oil-cooled design maintains optimum temperature control and prevents overheating. Its rewindable design minimizes maintenance costs, reducing the total cost of ownership. Additionally, a rubber membrane located at the bottom of the motor ensures pressure equalization, maintaining performance even under challenging operating conditions. Each product undergoes 100% quality control testing before reaching the customer, ensuring trouble-free and reliable operation.
Technical Specifications
Engine Class: 4'' Series
Voltage: 220 V Single Phase
Power: 3 HP (2.2 kW)
Length: 565 mm
Weight: 17.4 kg
Outer Diameter: 95 mm
Outer Diameter: 95 mm
Cooling Type: Oil cooled
Working Positions: Vertical and horizontal
Voltage Tolerance: ±10%
Maximum Water Temperature: 35 °C
Engine Rotation Speed: 2900 rpm
Protection Class: IP68
Winding Class: Class B
Number of Turnovers (per hour): 20
Maximum Axial Load: 2500 N
Areas of Use
Submersible pump motors are widely used in a variety of industrial and commercial applications requiring the removal of water from underground sources to the surface. They are particularly ideal for applications such as agricultural irrigation, municipal water supply, construction site water supply, and groundwater management. With their high performance and durability, these motors offer a reliable and long-lasting solution.
The Submersible Pump Motor offered with ORFA Industrial 's expertise provides a long-lasting and economical solution to our customers by providing continuous and efficient performance even under difficult operating conditions.
| Thread Size | : | 4'' |
