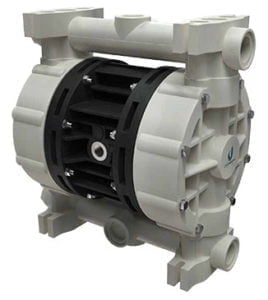

DEBEM Boxer 100 IB100 PP/SANT/PTFE 1'' Air Diaphragm Pump – Powerful Performance, Compact Structure
ORFA Industrial Products Industry and Trade Inc. offers the DEBEM Boxer 100 IB100 PP/SANT/PTFE 1" air-operated diaphragm pump, manufactured with Italian technology, for customers who prioritize reliability and efficiency in industrial fluid systems. Its compact dimensions, wide temperature range, and high durability make it a standout in every industry.
Air Diaphragm Pump Features:
Maximum Flow: 160 l/min – ideal for high volume transfers.
Maximum pressure: 80 metres – provides effective pressure even in long lines.
Negative Suction Height (dry): 4 m
Negative Suction Height (full): 9.5 m
Volume per stroke: 222 cc
Particle Strength: Maximum suspended solid particle diameter 4 mm
Noise Level: 75 dB
Connections: G 1" female / DN 25 with clamp – NPT connection is optional.
Air Supply Connection : G 3/8" female
Air Pressure Capacity: Maximum 8 bar
Building Materials and Durability
PP (glass reinforced): 7.6 kg | 3°C – 65°C
PP conductor (carbon-filled): 7.6 kg | 3°C – 65°C
PVDF conductor (carbon-doped): 9.6 kg | 3°C – 95°C
Compact Dimensions of Air Diaphragm Pump
Height: 325 mm
Width: 329 mm
Depth: 202 mm
Air Diaphragm Pump Usage Areas
Chemical and petrochemical industry
Food and beverage production
Pharmaceutical and cosmetics industry
Surface coating and paint systems
Wastewater treatment plants
Textile and paper industries
Its PP/SANT/PTFE construction provides high temperature and chemical resistance, while its compact dimensions allow for easy installation even in confined spaces. Furthermore, it demonstrates its reliability with flow and head performance in accordance with ISO 9906.
| Tooth Measurement | : | 1'' |
