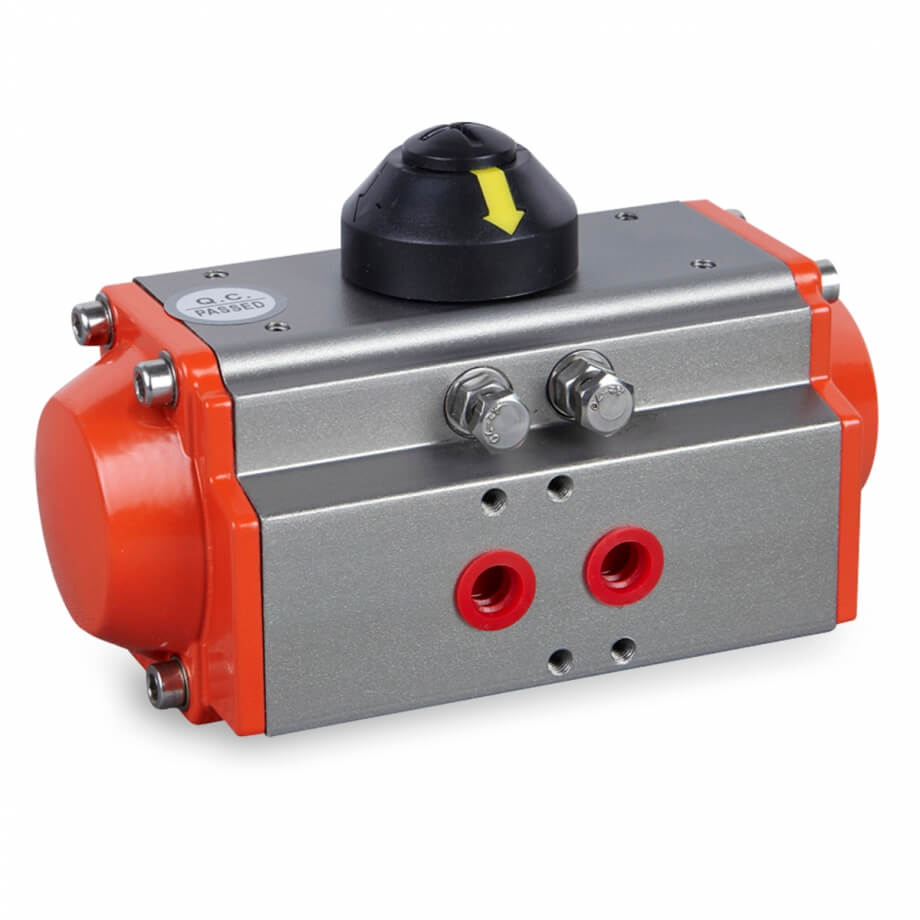

DMS VALVE Double Acting Pneumatic Actuator DA52

DMS VALVE Double Acting Pneumatic Actuator DA52

High Performance in Pneumatic Valve Automation with ORFA Industrial Assurance

An indispensable part of valve automation in industrial facilities, the double acting pneumatic actuator uses air pressure to provide precise and reliable movement. This double acting pneumatic actuator Model DA52, manufactured by DMS VALVE, offers superior corrosion resistance thanks to its aluminum extruded body. Using pressure for both forward and reverse motion, the double acting pneumatic actuator delivers high torque and fast response for opening and closing industrial valves. Each double acting pneumatic actuator unit ensures a leak-proof seal through nitrile rubber sealing elements. Even under harsh operating conditions, this double acting pneumatic actuator maintains stability and minimizes maintenance requirements. Choosing a double acting pneumatic actuator for your project offers energy efficiency and long service life. The DMS VALVE double acting pneumatic actuator operates flawlessly at supply pressures from 3 to 8 bar and easily integrates with ball or butterfly valves via an ISO 5211 mounting flange. Using a reliable double acting pneumatic actuator in industrial automation systems improves process control and reduces operating costs. With this double acting pneumatic actuator, you achieve millimeter precision in valve positioning.

Double Acting Pneumatic Actuator Technical Specifications Detail

Model: DMS VALVE Double Acting Pneumatic Actuator DA52

Actuator Type: Double Acting

Body Material: Aluminum Extruded (Corrosion Protected)

Piston Material: Special Aluminum Alloy

Shaft Material: Cadmium Doped Steel

Sealing Element: Nitrile Rubber (NBR)

Supply Pressure: 3 – 8 bar

Operating Temperature: -20°C to +80°C

Mounting Flange: ISO 5211

Operation: Rotary Motion (90°)

Double Acting Pneumatic Actuator Key Advantages

Fast Response: This double acting pneumatic actuator improves process control with instantaneous action.
High Torque: Thanks to its robust construction, the double acting pneumatic actuator provides sufficient torque even for large valves.
Long Life: Made of corrosion-resistant materials, the double acting pneumatic actuator operates trouble-free for years.
Low Maintenance: With minimal moving parts, the double acting pneumatic actuator reduces maintenance costs.

Double Acting Pneumatic Actuator Application Areas

Automation of flow control valves in chemical plants.
High-temperature lines in petrochemical refineries.
Filter and valve management in water treatment plants.
Steam and gas lines in power plants.

Discover safe automation for your installation with the DMS VALVE Double Acting Pneumatic Actuator.
