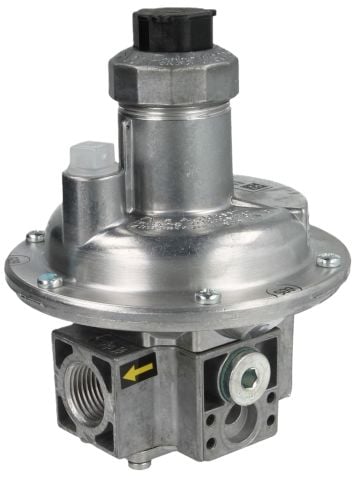

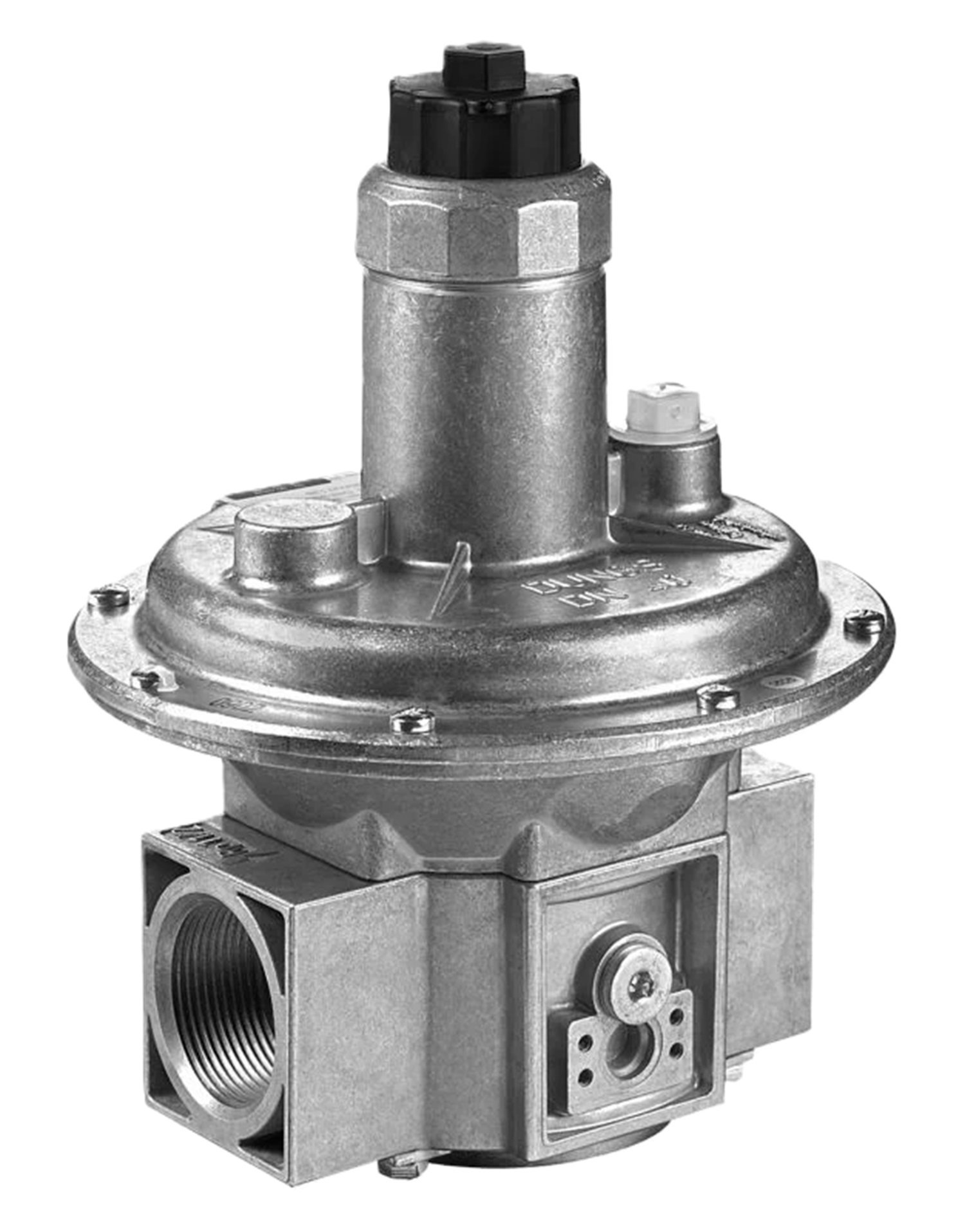

Dungs Gas Regulator 1/2'' FRS 505 (070383)
%50 Discounted Product
0 - Comment / Read Comments
318,41 EUR
159,20 EUR
Category
Brand
Stock Code
02.06.01.002.110.02
Warranty Period
24 Month
Price
265,34 EUR + VAT
* Installments starting from 159,20 EUR!
Add to Cart
Dungs Gas Regulator
The Dungs Gas Regulator FRS, offered by ORFA Industrial Products Industry and Trade Inc. , is an adjustable pressure regulator designed to provide highly precise and reliable gas pressure regulation. Manufactured in accordance with EN 88-1 and DIN 3380 standards, this regulator is ideal for gas burners and gas appliances. With its superior performance and durability, the Dungs Gas Regulator offers an indispensable solution for industrial applications.
Features
Inlet Pressure: Up to 500 mbar (50 kPa)
High Flow Performance: Stable performance even at high volume gas flows
Precise Adjustment: Stable, precise and sensitive adjustment of the regulator outlet pressure
Front Pressure Compensating Diaphragm: To ensure constant outlet pressure
Security Diaphragm: Extra layer of security
Pulse Connection: Standard internal pulse, external pulse connection optional
Threaded Connection: Easy installation with 1/2" threaded connection
FLOW RATE: 16 M3/H
FLOW RATE: 16 M3/H
Approvals
EC Type Approval Certificate: Compliance with the EC Gas Appliances Directive
International Approvals: Approvals valid also in other major gas consuming countries
Function: The Dungs Gas Regulator operates on the force comparison principle. The adjustable output pressure spring works effectively with the differential pressure across the operating diaphragm and the weight of the moving parts. The adjustment spring, acting in conjunction with the weight of the moving parts, precisely adjusts the output pressure.
Technical Notes
Material: Gas-transmitting installations, pulse and connection installations must be made of steel.
Durability: Installations must be able to withstand thermal, chemical and mechanical loads.
Contamination Protection: The pressure regulator must be protected by a suitable dirt trap.
Mounting Location: The mounting location of the adjustment spring must not be exposed to flammable gases or flammable gas-air mixtures.
Device Pre-selection: The pressure drop across blocked pressure regulators is determined using the volume flow - pressure gradient characteristic curve of the mechanically open pressure regulators. The maximum volume flow Vmax in conjunction with the pressure gradient between the inlet pressure p1 and the regulator outlet pressure p2 determines the nominal diameter of the pressure regulator.
Application Areas
The Dungs Gas Regulator is designed for gas burners and appliances. It is suitable for dry gases containing no colored metals, up to 0.1% vol. H2S, gases from families 1, 2, and 3, and other neutral gaseous substances. It can be used in industrial facilities, commercial kitchens, heating systems, and various gas-burning appliances.
Application Areas
The Dungs Gas Regulator is designed for gas burners and appliances. It is suitable for dry gases containing no colored metals, up to 0.1% vol. H2S, gases from families 1, 2, and 3, and other neutral gaseous substances. It can be used in industrial facilities, commercial kitchens, heating systems, and various gas-burning appliances.
The Dungs Gas Regulator FRS is the ideal solution for your industrial gas pressure regulation needs. With its high performance, precise adjustment capabilities, and wide range of applications, the Dungs Gas Regulator is a reliable product offered by ORFA Industrial Products Industry and Trade Inc.
| Tooth Measurement | : | 1/2'' |
Be the first to comment on this product!
No questions have been asked about this product yet.
