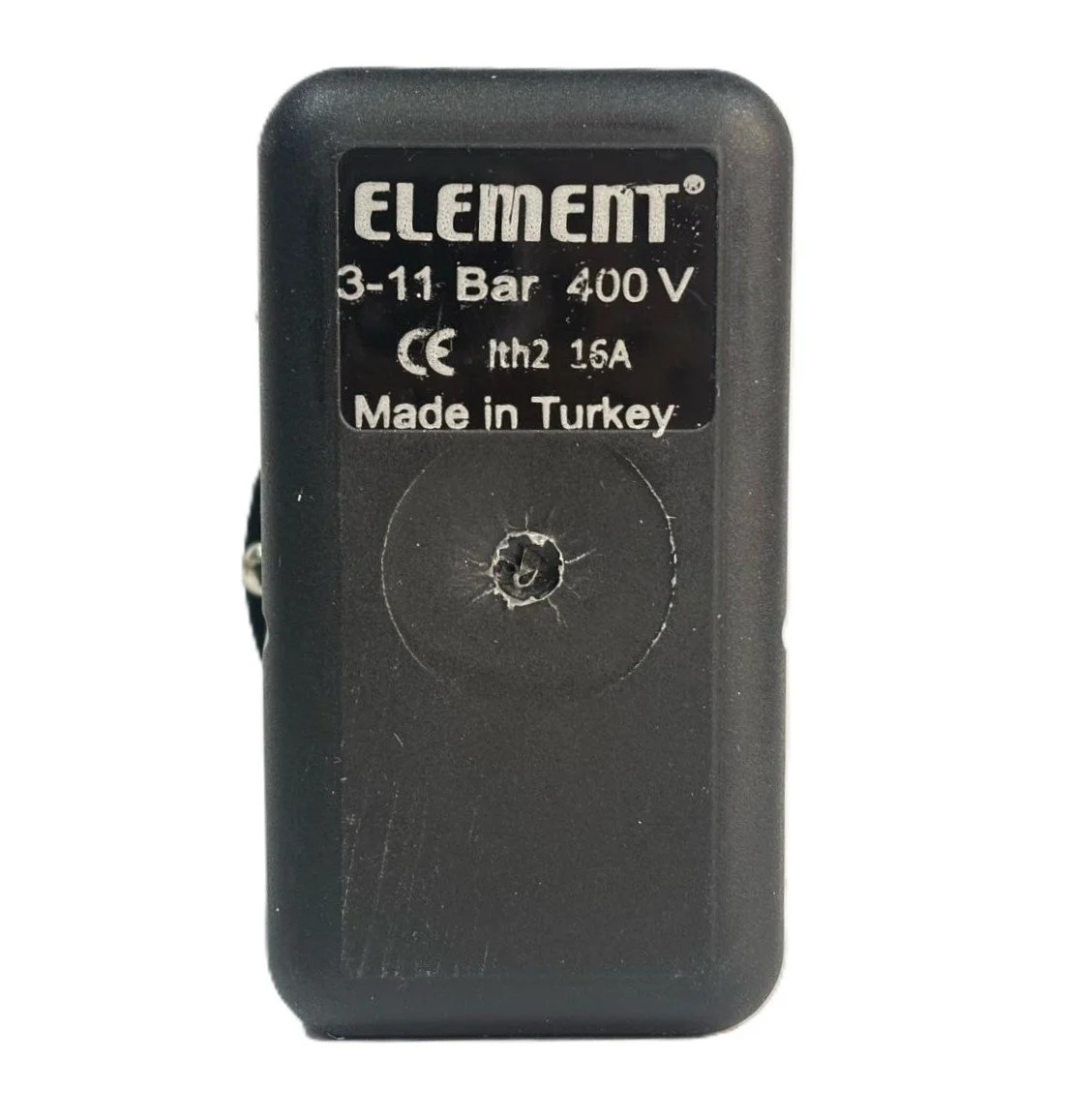

Element ELT-3 Basınç Şalteri 3-11 Bar Tahliyesiz
0 - Comment / Read Comments
Category
Brand
Stock Code
1112563098000001110000001
Warranty Period
24 Month
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
Element ELT-3 Pressure Switch – Bar (Without Relief)
It is a control element that monitors the pressure in the line in booster and compressor applications and automatically opens/closes the electrical circuit according to the set value. ORFA Industrial Products Industry and Trade Inc. This Pressure Switch, offered with assurance, provides reliable and economical solutions with its compact structure, long mechanical life and easy adjustment.

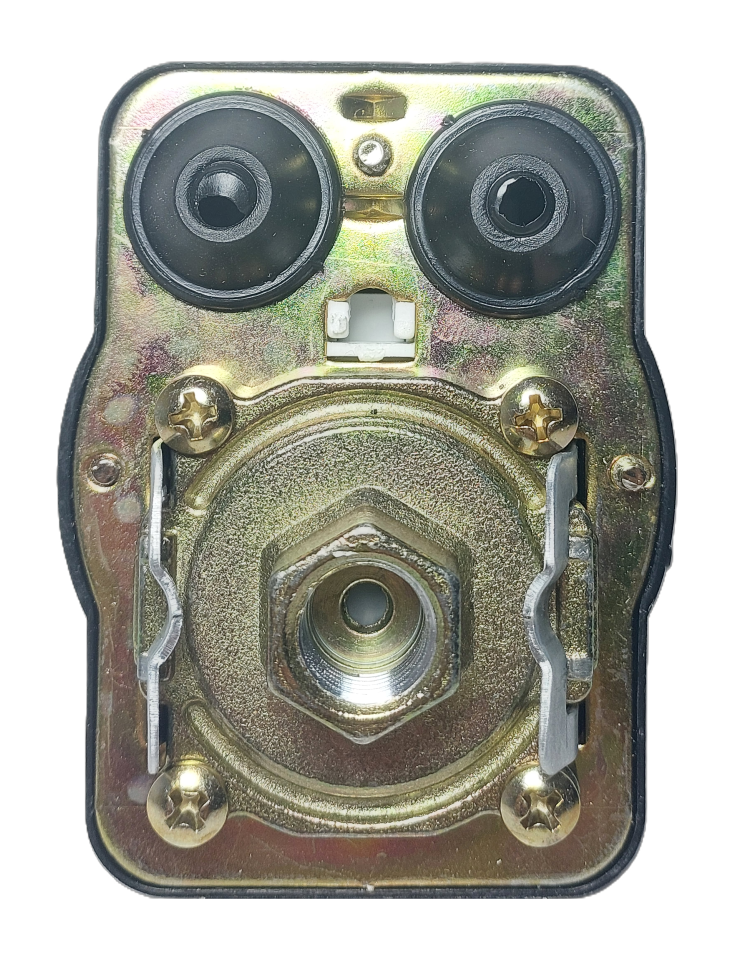

ELT-3, NBR/transmits the line pressure it detects through the rubber diaphragm to a micro switch.
ELT-3, NBR/transmits the line pressure it detects through the rubber diaphragm to a micro switch.
As the pressure adjustment screw is turned clockwise, the on/off threshold pressure increases and decreases in the opposite direction.
Thanks to the differential range, the desired difference between the cut-in and cut-out points can be adjusted; This prevents the pump/compressor from switching on and off frequently.
This model is non-relief: it does not relieve line pressure at stop. A suitable check valve and process architecture is recommended for ease of start-up in compressor applications.
Electrical contact structure is Normally Closed (NC) type; When the threshold is exceeded, it breaks or establishes the circuit (according to the setup).
Pressure range (set):
–11 bar
–11 bar
Differential range: .2–5.3 bar (adjustable)
Sublink: /4" thread
Electric supply / U1: –250 V (single phase)
Max. engine power: kW
Current (In): A
Electrical life: ,000 on/off
Mechanical life: ,000,000 cycles
Burst pressure: bar
Operating temperature (air): –5…+80 °C
Operating temperature (water): +80 °C
Protection class: IP
Seals: NBR/rubber diaphragm
Structure: Without Drain
Pressure Switch Usage Areas Water pumps and booster groups (residential, commercial buildings, process water)
Compressor systems and compressed air lines
Compressor systems and compressed air lines
Fire boosters and emergency water pressurization systems
Industrial processes: washing lines, general facility service water
Water treatment/distribution and small-scale irrigation systems
Element ELT-3 3–11 Bar Non-Relief Pressure Switch
, stable pressure and safe automation in your pumps and compressors with its adjustable differential, high cycle life and IP44 protection provides. You can get technical support from the expert team of
ORFA Industrial for long-lasting and trouble-free operation with correct dimensioning and accessories (manometer, check valve, etc.). ORFA Endüstriyel uzman ekibinden teknik destek alabilirsiniz.
ORFA Industrial for long-lasting and trouble-free operation with correct dimensioning and accessories (manometer, check valve, etc.). ORFA Endüstriyel uzman ekibinden teknik destek alabilirsiniz.
| Voltage | : | 220 Volt Ac |
