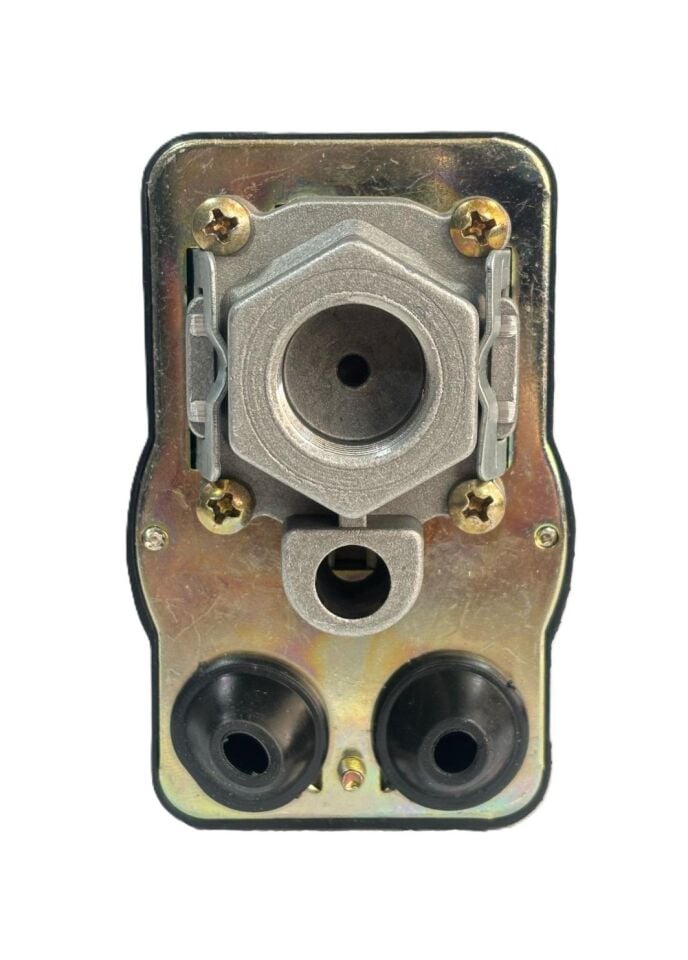

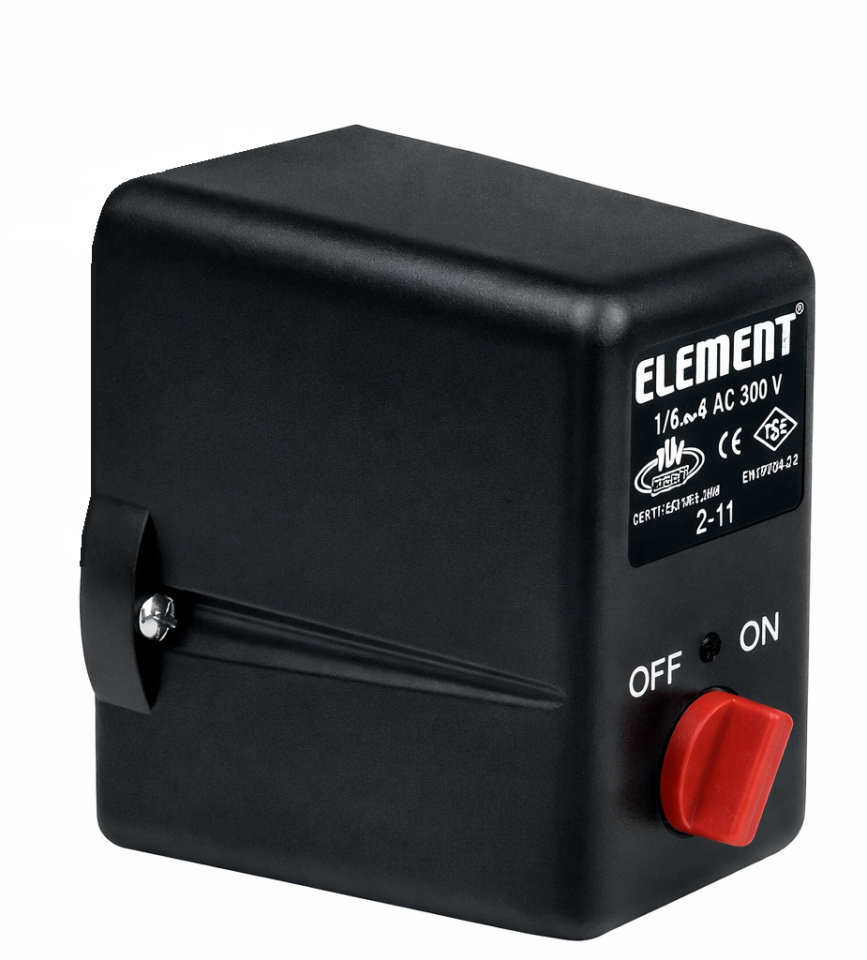

Element ELT-4CO Pressure Switch (4-16 Bar)
Industrial Pressure Control with Evacuation and Switching System
The Element ELT-4CO Pressure Switch is a high-precision control element designed to maintain pressure within predetermined limits in air compressors and water systems. Its wide operating range of 4 to 16 bar makes it ideal for both standard and high-pressure applications.
Thanks to its integrated relief valve , the compressor prevents the motor from being strained during the next start by releasing air from the pipeline when it stops. The manual on/off switch gives the user complete control.
Precise Tuning and Differential Capacity
ELT-4CO offers a flexible differential (start-stop range) to maintain system efficiency. The adjustable differential range between 2.1 bar (min) and 7.8 bar (max) prevents unnecessary frequent motor switching (switching frequency), thus extending system life.
Technical Specifications
Featured Functions
- Engine Protection: The relief valve reduces the load during startup, preventing engine burnout.
- Easy Adjustment: Thanks to the screws in its internal mechanism, the upper and lower pressure limits can be easily set.
- Flexible Connection: Quick adaptation to different installation types with 1/4" and 1/2" options.
- Secure Design: Industrial-grade lid construction provides resistance to dust and external elements.
Application Areas
- Piston and screw air compressors
- Hydrophore systems and water pumps
- Fire extinguishing line pressure check
- Industrial air dryers
Advantages of Element ELT-4CO
– Wide operating spectrum up to 16 bar.
– Provides energy savings through precise differential adjustment.
– Its design with a relief valve optimizes compressor life.
– Quick response in emergencies thanks to the manual switch.
– Long cycle life thanks to high-quality contact structure.
| Thread Size | : | 1/4'', 1/2'' |
