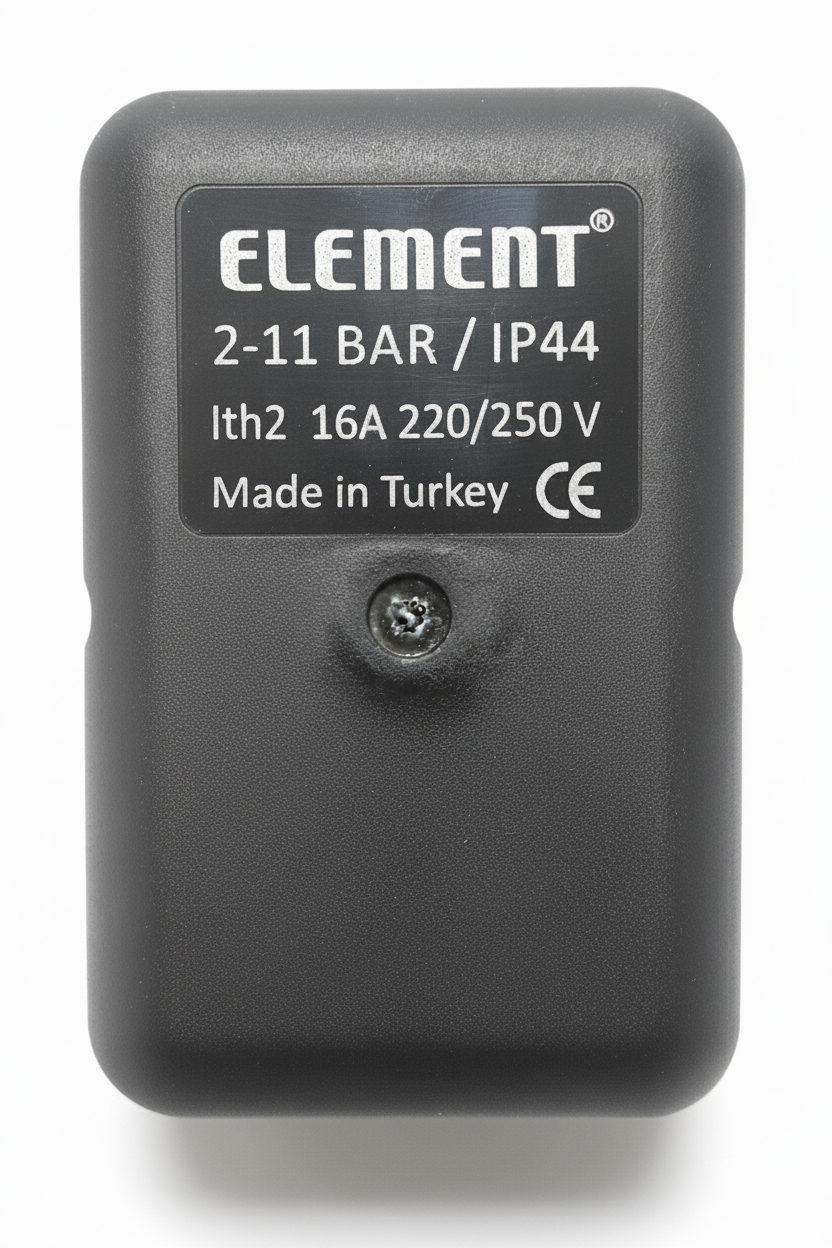

ELEMENT ELT-6 Pressure Switch 2-11 Bar

ELEMENT ELT-6 Pressure Switch 2-11 Bar

Reliable Automation in Pressure Control with the Guarantee of ORFA Industrial

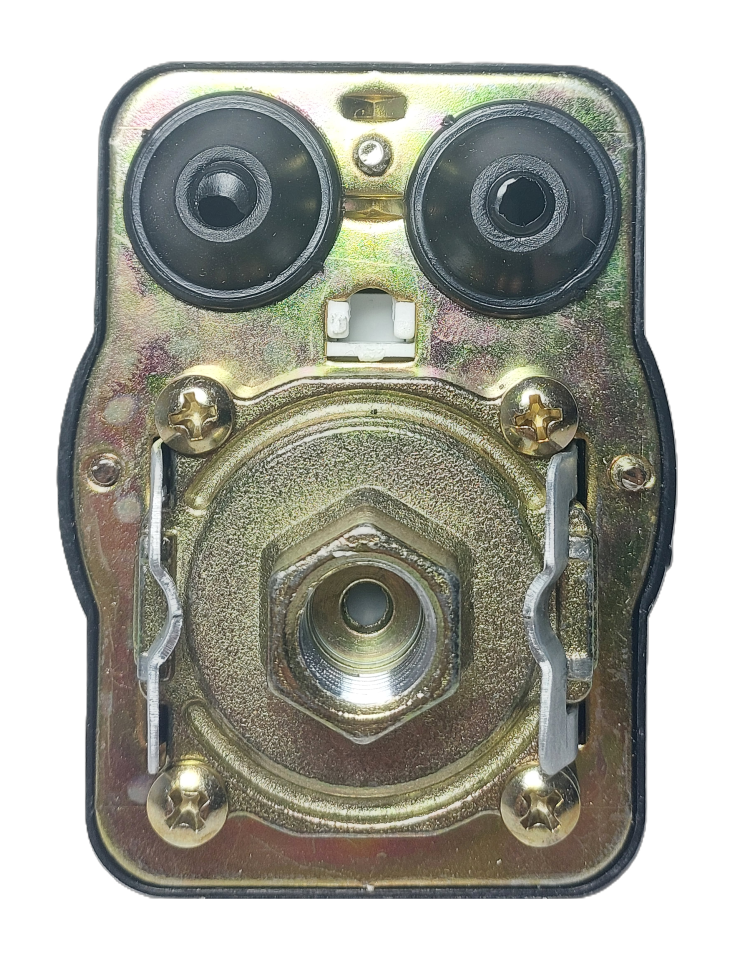

A critical component for the safe operation of industrial installations and pump systems, the pressure switch continuously monitors line pressure and automatically controls the electrical circuit according to the set value. Manufactured with the quality of the Element brand, the ELT-6 model offers precise adjustment in the range of 2-11 bar. This pressure switch detects pressure via an NBR rubber diaphragm and, through a micro switch, ensures the pump or compressor starts or stops. With a compact design and IP44 protection class, the pressure switch can be safely used in harsh environments. It is easily mounted via a 1/4 inch threaded connection. With a 220-250 V AC supply, this pressure switch can handle motors up to 4 kW, with a rated current of 16 A. The differential adjustment range of 1.3-3.5 bar prevents frequent on/off cycling of the pump, providing energy savings. With an electrical life of 200,000 cycles and a mechanical life of 1,000,000 cycles, the pressure switch offers years of trouble-free operation. The model withstands a burst pressure of 35 bar, ensuring high safety against sudden surges. The operating temperature ranges from -5 to +80 degrees, allowing the pressure switch to be used in water and air applications. Easy to install and adjust, the ELT-6 is a preferred pressure switch in a wide range from booster systems to compressors. With this pressure switch, supplied with the guarantee of ORFA Industrial, ensure safe pressure management in your installation.

Discover safe pressure management and long-lasting use with Element pressure switch solutions.

PRESSURE SWITCH TECHNICAL SUPPORT AND SUPPLY

For Element pressure switch installation and spare part support, please contact the ORFA Industrial expert team.
