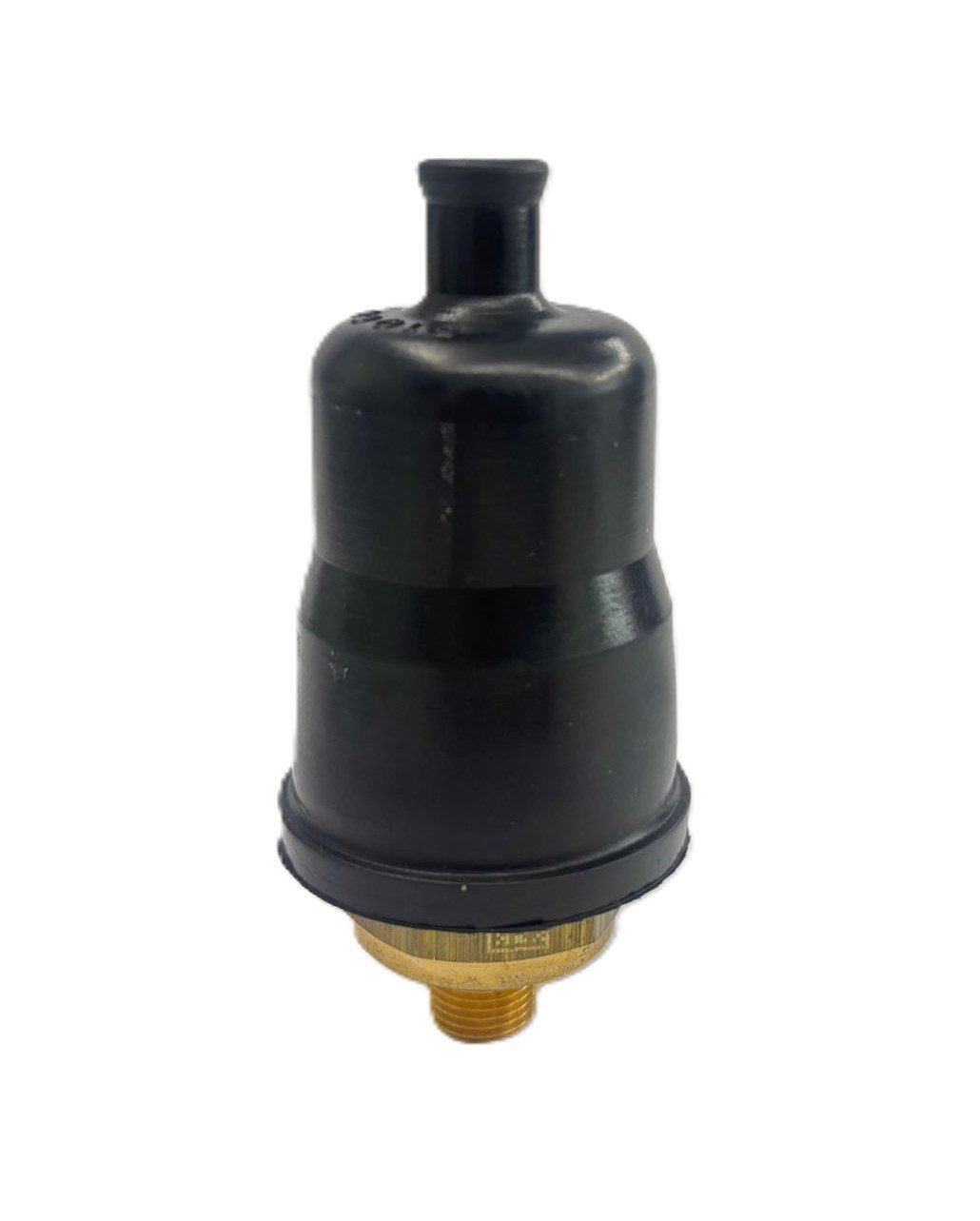

Elettrotec PM250-10A Pressure Switch 02-10 Bar
Add to Cart
ORFA The Elettrotec PM250-10A Pressure Switch from Industrial Mamüller is a reliable and precise solution for monitoring and controlling the pressure in your systems. With its wide adjustment range, durable structure and various connection options, this switch adapts to different industrial applications.
Elettrotec PM250-10A Pressure Switch is used to monitor and control pressure in hydraulic and pneumatic systems, pumps, compressors and other industrial applications. It has a wide operating range from 0.2 bar to 10 bar. Thanks to the adjustable pressure point, it can be customized according to the needs of your system.
Product Features:
- Model: PM250-10A
- Type: Adjustable Pressure Switch
- Operating Range: .2 - 10 bar
- Max. Static Pressure: bar
- Switch Value: .5 (0.2) A / 250Vac-60 Hz
- Electrical Connection: Faston 6.3 x 0.8, DIN 46
- Temperature Range: -40°C - +140°C (depending on diaphragm/gasket material)
- Contact: NO - NC (unpressurized)
- Body Material: Pirinç,
- Diaphragm/Seal Material: NBR, FKM, Silicone, HNBR, Neoprene, EPDM, Stainless Steel
- Threads: G1/8 BSPT, G1/4 BSPT, M10 x 1, etc.
- Protection: IP00 (Faston), IP54 (CAP with 1) or IP65 (CAP with 3)
- Mechanical Life: ⁶ operations
- Certification: CE
Pressure Switch Advantages:
- Wide operating range
- Adjustable pressure point
- Durable construction
- Various connection and material options
- Long mechanical life
- Reliable performance
Areas of Use:
- Hydraulic systems
- Pneumatic systems
- Pumps
- Compressors
- Water systems
- Industrial automation
ORFA As Endüstri Mamüller, we are committed to offering you the highest quality products at the most affordable prices. Control the pressure of your systems reliably with the Elettrotec PM250-10A Pressure Switch!
