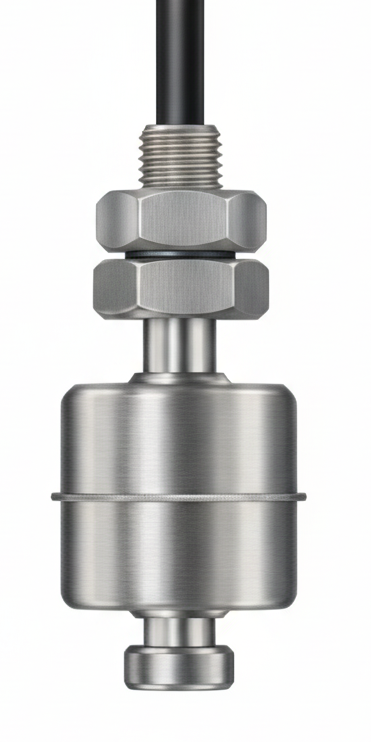

ELM-51 Stainless Steel Level Switch 3/8"
ORFA Industrial Products Industry and Trade Inc. offers the Stainless Steel Level Switch (ELM Series), a high-performance and reliable solution for tank level control. With its durable stainless steel construction, it provides long service life even in harsh industrial environments. Its compact design saves space, while its economical and practical installation makes it a preferred choice for machine manufacturers and system integrators. ELM Series level switches deliver precise level control in various applications such as hydraulic oil tanks and small storage systems, enhancing process efficiency. The stainless steel material ensures excellent compatibility with different fluids and provides a dependable solution.
Level Switch Working Principle:
The basic operating principle of the ELM Series level switches is based on the movement of a magnetic float. As the liquid level rises or falls, the float moves accordingly, and the magnet inside aligns with the reed sensor inside the tube, opening or closing the electrical circuit. This mechanism detects level changes quickly and precisely. When the float moves away from the sensor, the circuit returns to its original position, and the signals can be processed through a relay circuit.
The basic operating principle of the ELM Series level switches is based on the movement of a magnetic float. As the liquid level rises or falls, the float moves accordingly, and the magnet inside aligns with the reed sensor inside the tube, opening or closing the electrical circuit. This mechanism detects level changes quickly and precisely. When the float moves away from the sensor, the circuit returns to its original position, and the signals can be processed through a relay circuit.
Level Switch Technical Specifications:
Mounting Type: Vertical
Mounting Type: Vertical
Float Material: 316 Stainless Steel
Wet Part Material: 304 Stainless Steel (Optional: 316 Stainless Steel)
Tube Material: 304 Stainless Steel (Optional: 316 Stainless Steel)
Float Type: S4A/S40A
Operating Temperature: Max. 125 °C
Mechanical Connection: R 1/2"
Maximum Pressure: 30 Bar
Minimum Density: 0.80 g/cm³
Electrical Connection: Cable
Number of Floats: 1 (Standard)
Number of Contacts: 1x SPST-NO
Contact Current: 1.5 A
Max. Contact Power: 50 W / VA
Max. Supply Voltage: 200 VDC / 250 VAC
Optional Equipment: Liquid Level Relay SK-P2
Level Switch Applications:
The Stainless Steel Level Switch (ELM Series) is ideal for level control in industrial machines, hydraulic oil tanks, small tank applications, and various industrial tank systems. Its high temperature and pressure resistance allow safe use in different processes. By maintaining correct fluid levels, it contributes to the safe and efficient operation of systems.
The Stainless Steel Level Switch (ELM Series) is ideal for level control in industrial machines, hydraulic oil tanks, small tank applications, and various industrial tank systems. Its high temperature and pressure resistance allow safe use in different processes. By maintaining correct fluid levels, it contributes to the safe and efficient operation of systems.
ORFA Industrial Products Industry and Trade Inc. provides a reliable and long-lasting solution with its Stainless Steel Level Switch, enhancing operational efficiency in industrial applications.
| Body | : | Stainless |
| Tooth Measurement | : | 1/2'' |
