Ensim EFS-31 Akış Şalteri 1''...8''
%28 Discounted Product
0 - Comment / Read Comments
83,86 USD
60,38 USD
Category
Brand
Stock Code
00493
Price
69,88 USD + VAT
* Installments starting from 60,38 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.

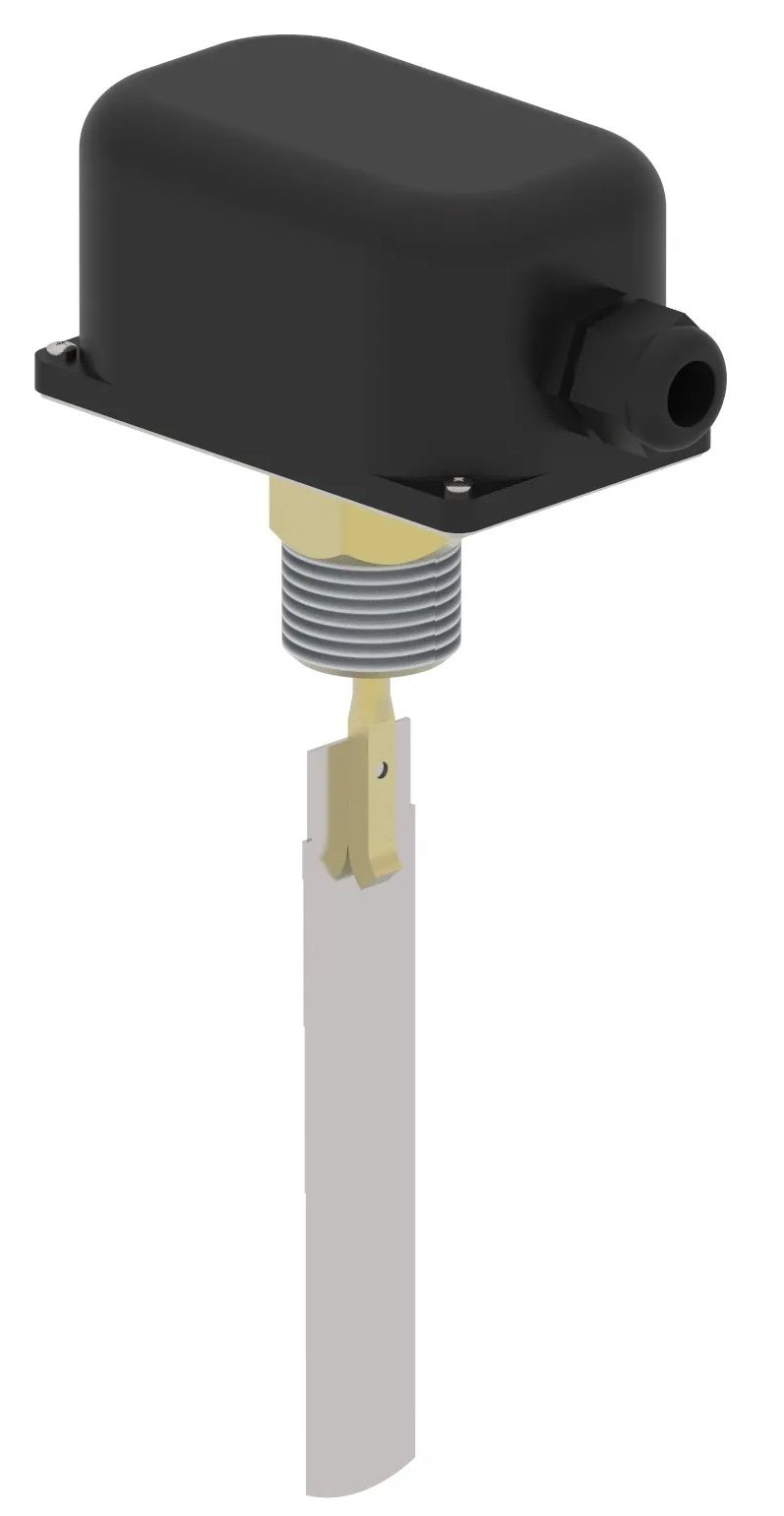

Ensim EFS-31 Flow Switch 1''...8''
The EFS Series Flow Switch, offered by ORFA Industrial Products Industry and Trade Inc. , enhances system safety and efficiency by reliably detecting fluid flow in pipes. When flow starts or stops, the switch's open or closed contacts effectively protect electrical equipment. Suitable for use with all types of non-corrosive fluids, this product stands out with its durable construction and wide range of applications.
Flow Switch Product Features:
Versatile Use: EFS Series Flow Switch appeals to a wide range of applications with its ability to be used in both hot and cold water systems.
Economical Design: Despite its durable construction, this flow switch offers an economical solution.
Full Airtightness : The airtight design of the product ensures long-lasting use by isolating the liquid flow from external factors.
Flow Adjustment: The switch's flow adjustment is optimized at the factory, but users can easily make adjustments based on application requirements.
Flow Switch Technical Information:
Fluid Type: Liquid
Operating Temperature: -20°C to +90°C
Working Pressure: Maximum 10 bar
Pallet Material: 304 Stainless Steel
Switch Bracket: Chromed Steel
Connection Material: Brass (MS56)
Pallet Bar: Brass (MS56)
Housing Material: Polypropylene
Bellows Material: Bronze
Gasket Material: NBR
Electrical Connection: PG 13.5
Protection Class: IP65
Connection: 1" NPT Male Thread
Pipe Diameter: 1" - 8"
Contact Capacity: 15 A 250 VAC, 1 A / NC
Box Dimensions: 304 x 150 x 200 mm
Flow Switch Usage Areas
Flow switches offer a wide range of industrial applications. They are widely preferred in various applications where fluid flow is important, particularly in heating, cooling, and water systems. They provide reliable flow control in industrial automation, HVAC systems, water treatment plants, and the chemical and petrochemical industries. They also perform effectively in pump protection systems and firefighting systems.
Installation Recommendations
The flow direction must be in the direction indicated on the device cover or label.
The flow direction must be in the direction indicated on the device cover or label.
It should be installed at an appropriate distance from corners, elbows and pumps that will create turbulence.
It should not be used in return pipes.
The Flow Switch , offered by ORFA Industrial Products Industry and Trade Inc. , provides an ideal solution for reliable flow control and protection of industrial systems. Its durable construction, wide compatibility options, and user-friendly adjustment mechanism help you increase efficiency while reducing costs.
| Tooth Measurement | : | 1'', 8'' |
