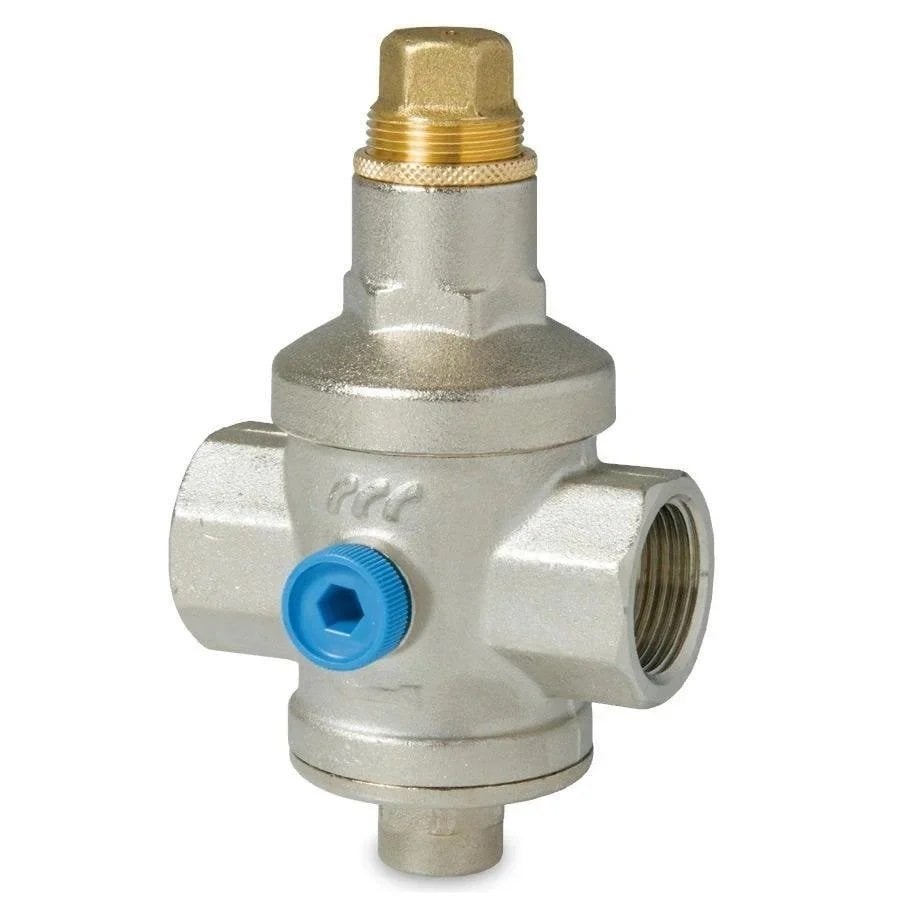

FARG 501 Pressure Reducer Without Manometer 3/4''

FARG 501 Pressure Reducer is a reliable valve that reduces and stabilizes the mouth pressure in water installations. Thanks to the piston operation and the compensating chamber, it keeps the outlet pressure constant despite the variable inlet pressure. It is suitable for various installation systems with connection size 3/4".

Product Features:

• Brand: FARG
• Model: Type:
• Pressure Reducer Link:
• /4" G Working Pressure:
• .5 - 6 bar Maximum Inlet Pressure:
• bar Maximum Output Pressure:
• bar Operating Temperature:
• °C - 120°C Material:
• Copper, nickel plated Standards:
• EN 1 Advantages:

Stable outlet pressure

• Compact design
• Easy assembly
• Low pressure loss
• Reliable and long-lasting
• Maintenance free
• Made in Italy
• Areas of Use:

Domestic water installations

• Industrial water installations
• Agricultural irrigation systems
• Pressure irrigation systems
• Fire extinguishing systems
• Installation and Usage:

Drain the system by opening all faucets to drain all water from the system.

1. Install the pressure reducing valve in accordance with the flow direction.
2. Connect hose or pipe to inlet and outlet connections.
3. Close inlet and outlet valves.
4. Connect a manometer to the outlet side of the pressure reducing valve.
5. Pressure the system by opening the inlet valve.
6. Adjust the pressure in the system by slowly opening the outlet valve.
7. Use the adjustment screw of the pressure reducing valve to adjust the outlet pressure to the desired value.
8. Check the manometer to make sure the outlet pressure remains constant.
9. Maintenance and Inspection:

Periodically check the valve body and fittings for leaks.

• Check the manometer to make sure that the pressure value is correct and does not change.
• Readjust the outlet pressure of the valve if necessary.
• Open the hermetic cover on the valve and check the cleanliness of the parts inside.
• ORFA As Endüstri Mamüller, we are committed to providing you with the highest quality products at the most affordable prices. FARG Get stable and safe pressure in your water installations with 501 Pressure Reducer Without Manometer!
