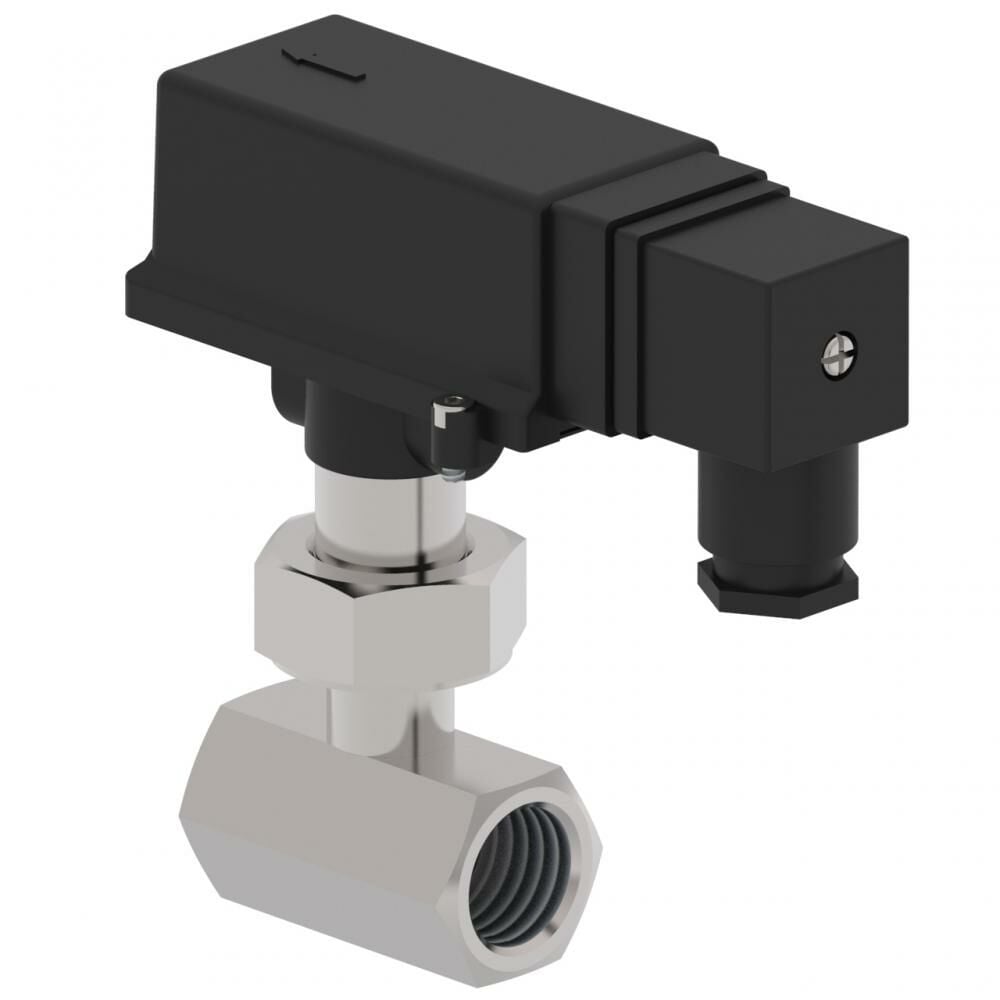

Flow Switch EFS-15S
%28 Discounted Product
0 - Comment / Read Comments
228,00 EUR
164,16 EUR
Category
Brand
Stock Code
08465
Warranty Period
24 Month
Price
190,00 EUR + VAT
* Installments starting from 164,16 EUR!
Add to Cart
Flow Switch (EFS Series)
The Flow Switch, offered by ORFA Industrial Products Industry and Trade Inc. , is a highly reliable flow-sensing device that safely and precisely controls fluid flow. It ensures smooth system operation by detecting the presence of fluids moving in pipes. Widely used in appliances such as water heaters, combi boilers, and heaters, this product provides highly accurate flow information in cooling water and lubricating oil circuits without consuming energy. Requiring vertical installation, this device continuously monitors the flow of the system in which it is installed.
By factory default, the contact is closed when flow is present and open when flow is absent. However, this can be easily reversed by the user by adjusting the position of the relay within the enclosure. This flexibility ensures optimal performance based on operating conditions.
Working Principle:
The operating principle of the EFS Series Flow Switch is quite simple and utilizes a reliable magnetic system. A paddle, fixed to the device's body, moves with the flow in the pipe. A magnet at the end of the paddle provides flow information by activating a reed relay that is not in contact with the fluid. When the flow stops, the paddle returns to its original position thanks to a reverse-polarity magnet mounted on the body. This design provides longer life and resistance to high pressures compared to spring-loaded mechanisms. The high-sensitivity reed relay ensures the device's long-lasting and reliable operation.
Advantages:
High sensitivity and accuracy
Contactless operation between the fluid and the relay circuit
Easy installation and adjustable structure
Low pressure drop
Economical and long-lasting use
Technical Specifications
Body + Union + Nut: 304 Stainless Steel
T Body: 304 Stainless Steel
T Body: 304 Stainless Steel
Bolt: 304 Stainless Steel
Pallet: 316 Stainless Steel
Relay Housing: Polypropylene
Magnet Housing: Polypropylene
O-Ring: FPM
Pipe Size: DN15
Connection Size: R 1/2"
Maximum Flow: 60 L/Min
Incremental Flow: 3.1 L/Min
Decreasing Flow: 2.5 L/Min
Pallet Diameter: Ø 10
Immersion Length: 50
Pipe Size: DN15
Connection Size: R 1/2"
Maximum Flow: 60 L/Min
Incremental Flow: 3.1 L/Min
Decreasing Flow: 2.5 L/Min
Pallet Diameter: Ø 10
Immersion Length: 50
Fluid: Water (optionally oil, gas or aggressive media)
Tolerance: ±15% of full scale
Maximum Working Pressure: 25 Bar
Operating Temperature: -20 °C to +110 °C
Ambient Temperature: -20 °C to +70 °C
Switch: Reed Switch SPST - NO (Normally Open)
Contact Current: 1 A
Maximum Contact Power: 10 W / VA
Maximum Supply Voltage: 200 VDC / 140 VAC
Electrical Connection: ISO 4400 Socket (Optional cable outlet and illuminated socket)
Protection Class: IP 65, IP 67 (for px, cx types)
Areas of Use:
The EFS Series Flow Switch provides reliable flow control in industrial and residential systems. It is used in all areas where fluid flow is critical, such as combi boilers, heaters, water heaters, and cooling systems. It also provides an effective solution in lubrication systems and various process lines.
The EFS Series Flow Switch provides reliable flow control in industrial and residential systems. It is used in all areas where fluid flow is critical, such as combi boilers, heaters, water heaters, and cooling systems. It also provides an effective solution in lubrication systems and various process lines.
Warnings:
For the device to operate smoothly, voltage, current and power values must not be exceeded.
The load must be connected in series with the switching unit.
Additional protection is required for capacitive or inductive loads.
ORFA Industrial Products ' EFS Series Flow Switch is an excellent solution that provides precision, safety, and energy efficiency. Operating without contact with fluids, this device offers operational safety and low maintenance costs.
