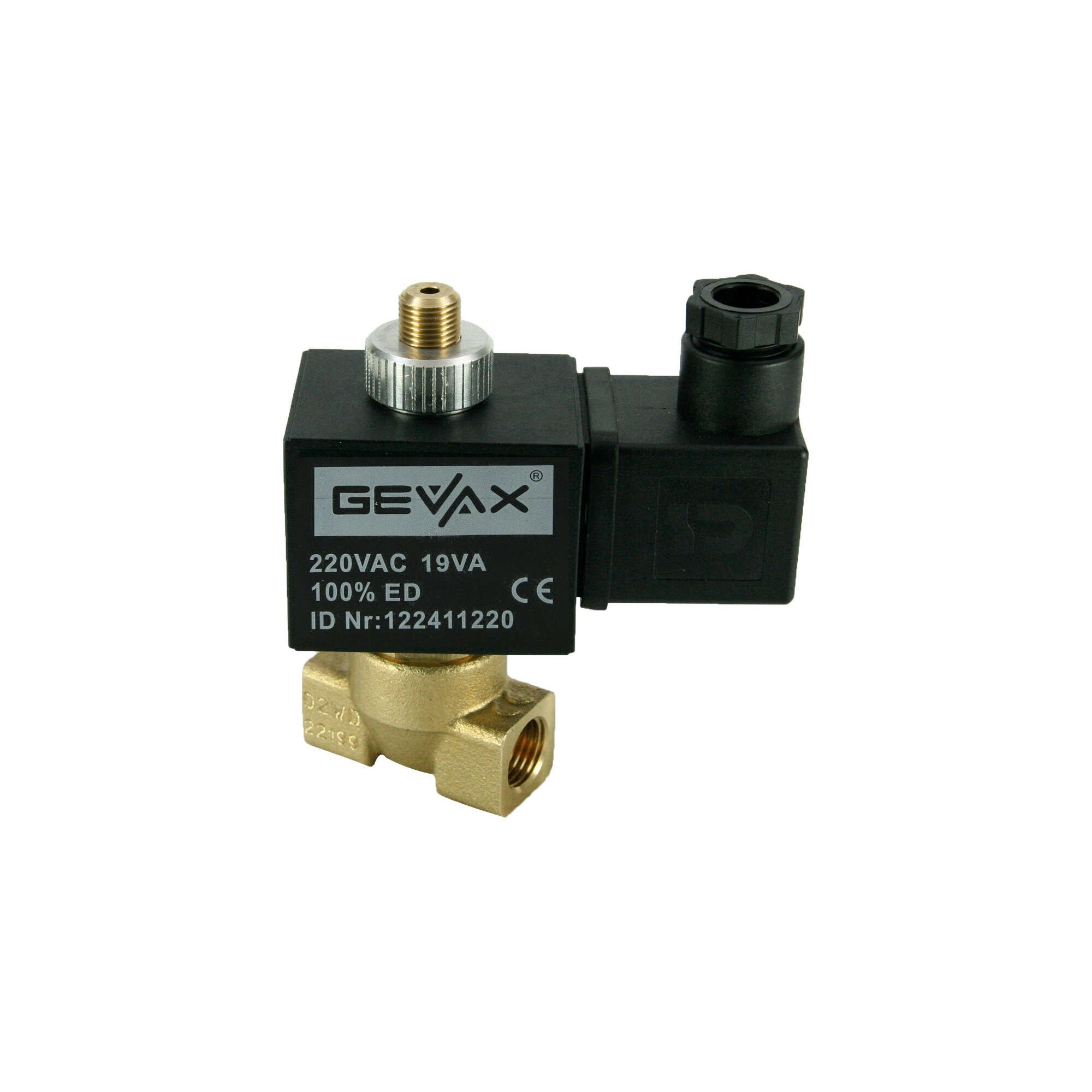

GEVAX 1902-KDNB007-020-G220AC Solenoid Valve 3/2 Way 1/4'': Precise Directional Control for Pneumatic Systems
The GEVAX 1902-KDNB007-020-G220AC Solenoid Valve is a high-performance, compact valve designed for use in systems requiring pneumatic flow control. Its 3/2-way , normally closed (NC) operating principle makes it ideal for precise and rapid flow control of single-acting pneumatic cylinders or air lines.
What is a GEVAX 1902-KDNB007-020-G220AC Solenoid Valve and What Does It Do?
A solenoid valve is an automatic valve that uses an electric coil to generate a magnetic field, activating a mechanism within the valve. The model code for this valve details the product's technical specifications:
3/2-Way Valve: A two-position valve with an inlet, outlet, and exhaust port. Ideal for controlling a single-acting pneumatic cylinder.
Normally Closed (NC): In the closed position, it does not allow flow when no electrical energy is applied.
G220AC: Indicates that the coil operates on 220V AC voltage. This makes it suitable for systems powered by standard mains electricity.
1/4'': The nominal threaded connection diameter of the valve is 1/4 inch .
GEVAX 1902 Solenoid Valve Highlights and Advantages:
Direct Acting Structure: The valve requires no minimum pressure difference to operate (operates from 0 bar). This feature ensures reliable performance in zero-pressure or low-pressure applications.
Durable Material: The body is made of brass, and the internal parts are stainless steel. Sealing elements are generally made of NBR , making it compatible with air, water, and neutral fluids.
Wide Working Range: Can withstand working pressures of 0-20 bar .
Easy Installation: 1/4'' threaded connection can be easily integrated into standard plumbing lines.
Compact Design: It can be easily used in automation panels or machines with its compact structure that saves space.
Solenoid Valve Usage Areas:
Pneumatic Systems: Control of single-acting pneumatic cylinders.
Industrial Automation: Factory automation and machine manufacturing applications.
Compressed Air Installations: Directing and controlling air flow.
Water and Gas Lines: General purpose applications requiring flow control.
