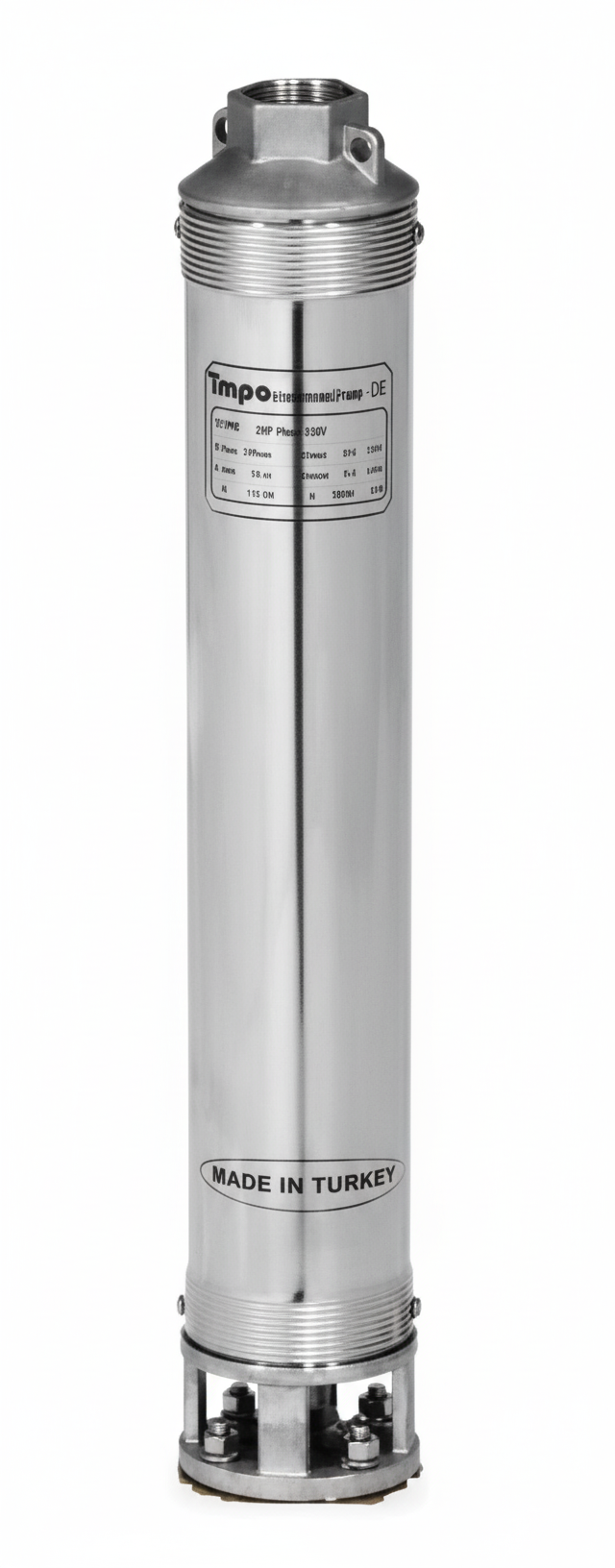

Impo 4'' Deep Well Submersible Pump Stage SK 408/18 – 4 HP / 3 kW
The Impo SK 408/18 is one of the high-efficiency models in the 4'' deep well submersible pump series. With a 4 HP (3 kW) motor, this model provides high flow rates and pressures, especially in deep well applications, offering long-lasting and reliable performance. Its 2" internally threaded standard valve outlet and semi-axial impeller design ensure maximum efficiency even under challenging conditions. Offered with ORFA Industrial's guarantee, this pump stage provides easy integration and maintenance advantages thanks to its NEMA standard compliant connection.Submersible Pump Working Principle
The pump is designed for the safe and continuous extraction of water from deep wells. Thanks to its semi-axial impeller type, it operates at high flow rates with low energy consumption. The impellers, driven by the rotational movement of the motor, pressurize the fluid and lift it upwards. This design ensures a long service life, especially in drinking water, irrigation, and industrial applications.
Submersible Pump Technical Specifications
Submersible Pump Technical Specifications
Pump Type: SK 408/18
Engine Power: 4 HP (3 kW)
Flow Rate Range: 3.6 – 12 m³/hour
Head: 113 m (maximum) – 32 m (minimum)
Outlet Connector: 2" internal thread (11 teeth)
Fan Type: Semi-axial
Weight: 6 KG
Weight: 6 KG
Length: 765 mm
Rotation Direction: Counterclockwise
Connection Standard: NEMA compliant
Shaft Diameter: Hexagonal 11 mm
Minimum Liquid Level: 600 mm below the suction strainer.
Maximum Pump Outer Diameter: 95 mm (including cable housing)
Maximum Permitted Sand Content: 25 g/m³
Maximum Solid Particle Size: 2 mm
Pumped Fluid: Clean liquids that are not chemically or mechanically corrosive.
Applications of Submersible Pumps
Applications of Submersible Pumps
Agricultural irrigation systems
Drinking water supply
Industrial water supply
Groundwater extraction
Water storage systems for sites, villas and apartments.
The Impo 4'' SK 408/18 Deep Well Submersible Pump Stage is a reliable choice thanks to its high flow rate and pressure capacity, durable construction, and NEMA-compliant connection advantage. With its long service life and low maintenance requirements, it provides high performance in both agricultural and industrial applications.
The Impo 4'' SK 408/18 Deep Well Submersible Pump Stage is a reliable choice thanks to its high flow rate and pressure capacity, durable construction, and NEMA-compliant connection advantage. With its long service life and low maintenance requirements, it provides high performance in both agricultural and industrial applications.
| Model | kW | HP | Exit | Height (mm) | Weight (kg) | Q (m³/h) | Q (L/s) | H (m) |
|---|
Submersible Pump SK 408/18 • 3 kW (≈4 HP) • Outlet: 2" • Height: 765 mm • Pump weight: 6 kg . Q–H data is taken directly from the manufacturer's table.
Flow Rate Q (m³/h) Head H (m)
| Strength | : | 4 HP - 3 KW |
| Tooth Measurement | : | 2'' |
