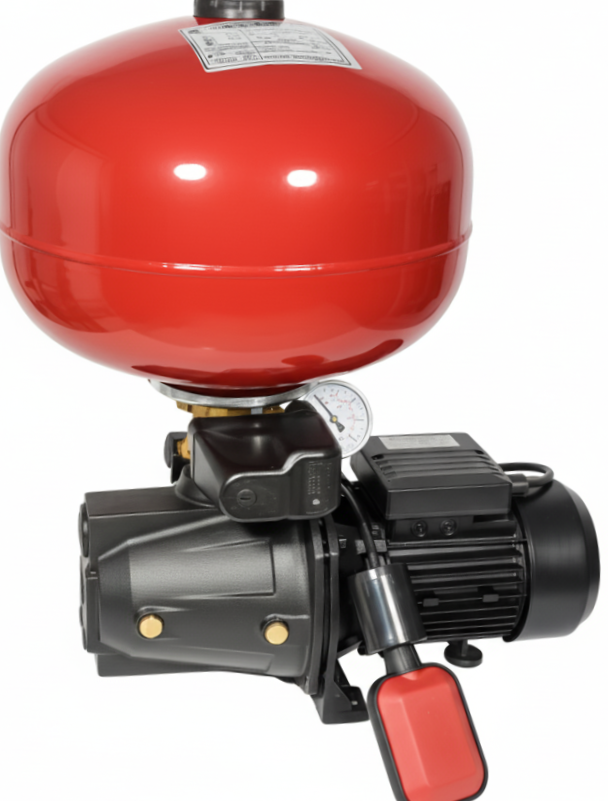

IMPO M80 Package Hydrophore 24 Liter Sphere Tank 1 HP 220V
The İMPO M80 Package Water Booster automatically adjusts water pressure, providing a continuous and balanced water supply for residences, villas, and small businesses. Its 1 HP motor delivers high efficiency and its 24-liter PN10 spherical expansion tank prevents system pressure fluctuations. Its durable construction, long service life, and quiet operation are key features.Working Principle
The pump automatically activates when it detects a drop in system pressure. It then stops when water demand ceases, thanks to a pressure switch. The expansion tank maintains constant pressure, preventing frequent pump activation and extending system life.
Technical Specifications
Technical Specifications
Pump Brand / Model: IMPO M80
Engine Power: 1 HP
Voltage: 220V
Current: 4.8 A
Flow rate (Q): 0 – 3.6 m³/h
Head (H): 46 – 2 mSS
Suction Depth: Max. 9 m
Inlet / Outlet Size: 1" – 1"
Weight: 15.5 kg
Pump Type: Self-priming jet pump
Material: Cast iron body, AISI 304 shaft
System Components:
System Components:
Expansion Tank: 24 Liter PN10 sphere type, pressure resistant
Pressure Switch: Italtecnica PM/5G, adjustable between 1–5 bar
5-Way Connection: 1” yellow TE threaded connection with check valve
Floater: Impo PVC floater, 5 meters cable
Manometer: Pakkens Lower Connection Manometer Ø63 mm 6 Bar 1/4''
Areas of Use
Areas of Use
Domestic water supply systems
Garden irrigation systems
Apartment and villa hydrophore systems
Small commercial facilities
The IMPO M80 1 HP 24-Liter Packaged Hydrophore provides high efficiency in both domestic and commercial use with its compact design, reliable performance, and quiet operation. Its durable tank and high-quality components offer long-lasting solutions.
The IMPO M80 1 HP 24-Liter Packaged Hydrophore provides high efficiency in both domestic and commercial use with its compact design, reliable performance, and quiet operation. Its durable tank and high-quality components offer long-lasting solutions.
| Type / Model | Volt | HP | Ampere | Login/Logout | Q (m³/h) | Q (L/sec) | H (m) |
|---|
Weight: 15.5 kg
| Voltage | : | 220 Volt Ac |
| Strength | : | 1 HP - 0.75 KW |
| Body | : | Iron Casting |
| Tooth Measurement | : | 1'' |
